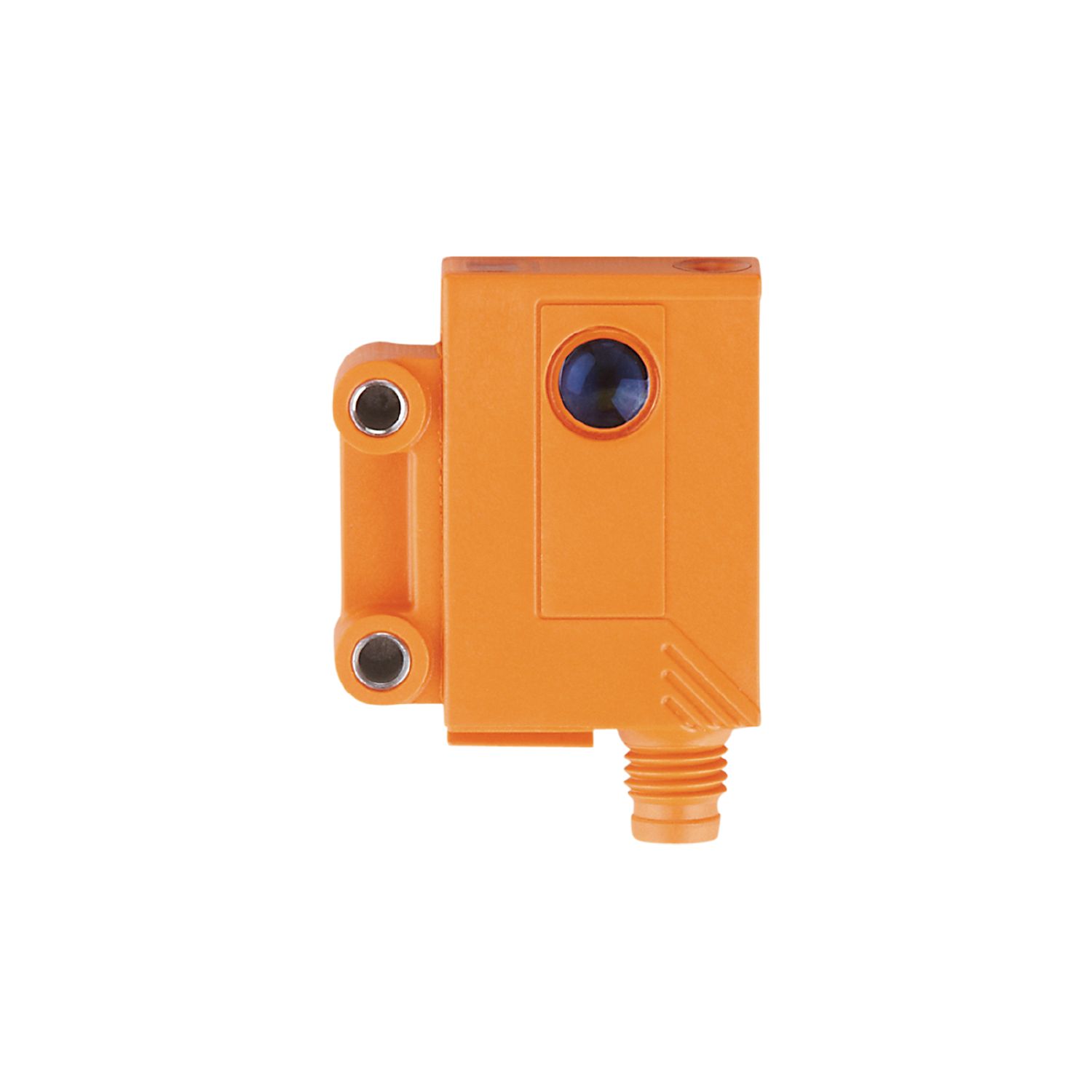

Through-beam sensor transmitter

OJ5108

OJS-OOKG/FO/AS

Through-beam sensor transmitter

OJ5108

OJS-OOKG/FO/AS

  • Particularly compact housing for use where space is restricted
  • Very long range
  • Visible red light for simple alignment
  • Fast mounting by means of mounting holes with robust stainless steel sleeve
{{ifmVariantName}}



  • ce
  • eac
  • cul
Technical details
Product characteristics
Type of light red light
Housing rectangular
Dimensions [mm] 35 x 24 x 11
Application
Function principle Through-beam sensor
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 19
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length [nm] 660
Outputs
Overload protection yes
Monitoring range
Transmitter / receiver transmitter
Range [m] < 10
Max. light spot diameter [mm] 1000
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 1773
Mechanical data
Weight [g] 39.4
Housing rectangular
Dimensions [mm] 35 x 24 x 11
Material housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
Lens material
glass
Lens alignment Front sensing
Displays / operating elements
Display
Power 1 x LED, green
Accessories
Items supplied
Basic clip: 1, E20964
screws: 2 x M3 x 16
spring washers: 2
Nuts: 2
Remarks
Remarks
cULus - Class 2 source required
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M8
