OJ5070

Diffuse reflection sensor

OJB-FPKG/FO/AS

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Particularly compact housing for use in robotics, assembly and handling technology
  • Very long range
  • Visible red light for simple alignment
  • Intuitive setting of sensitivity and output function
  • Easy mounting by clipping onto a mounting base
  • ce
  • eac
  • cul
Download
Technische Details
Product characteristics
Type of light Infrared light
Housing rectangular
Dimensions [mm] 35 x 24 x 11
Application
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 32
Protection class III
Reverse polarity protection yes
Type of light Infrared light
Wave length [nm] 880
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 2000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Range [mm] 1...1000; (white paper 200 x 200 mm 90 % remission)
Range adjustable yes
Max. light spot diameter [mm] 150
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 864
Mechanical data
Weight [g] 40.3
Housing rectangular
Dimensions [mm] 35 x 24 x 11
Material housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
Lens material
glass
Lens alignment Front sensing
Displays / operating elements
Display
Switching status 1 x LED, yellow
Power 1 x LED, green
Function 1 x LED, red
Electronic lock yes
Accessories
Accessories (supplied)
Basic clip: 1 x, E20964
screws: 2 x x M3 x 16
spring washers: 2 x
Nuts: 2 x
Remarks
Remarks
cULus - Class 2 source required
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M8
Diagrams and graphs

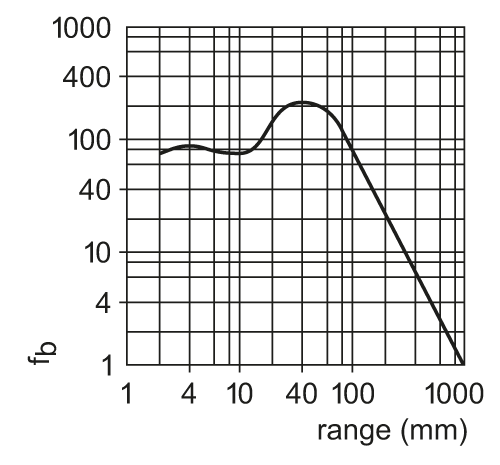

excess gain graph
