  6. OGP701

Retro-reflective LASER sensor



{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Reliable detection of tiny objects
  • Robust stainless steel housing for use in harsh industrial environments
  • Laser protection class 1
  • Visible red light for simple alignment
  • Excellent price/performance ratio
  • ce
  • eac
  • cul
Technische Details
Function principle Retro-reflective sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] 15
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 655
Typ. lifetime [h] 50000
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 2000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Range referred to prismatic reflector [m] 0.2...2; (Prismatic reflector Ø 80 E20005)
Factory setting
dark-on mode
Range adjustable yes
Diameter of the smallest detectable object [mm] 1.5; (1 m; 2 m: 2)
Max. light spot diameter [mm] 5
Light spot dimensions refer to at maximum range
Polarization filter available yes
Operating conditions
Ambient temperature [°C] -10...60
Protection IP 65; IP 67
Tests / approvals
EN 60947-5-2
Laser protection class 1
Notes on laser protection
Caution: Laser light
laser class: 1
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years] 600
Mechanical data
Weight [g] 63.2
Housing Threaded type
Dimensions [mm] M18 x 1 / L = 72
Thread designation M18 x 1
Material housing: stainless steel (1.4404 / 316L); operator interface: PA; sealing: EPDM; Pushbuttons: TPU (urethane)
Lens material
Displays / operating elements
Switching status 1 x LED, yellow
Accessories (supplied)
lock nuts: 2 x
cULus - Class 2 source required
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
Diagrams and graphs

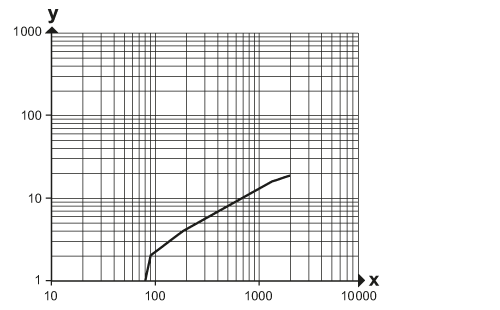

excess gain graph
x: Abstand [mm]
y: Funktionsreservefaktor
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — OGP701-01 — 29.01.2009 —
