Through-beam sensor receiver

OGE-HPKG/US/CUBE

OGE281

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Robust rectangular metal housing with M18 thread on the side
  • Particularly space-saving design for use where space is restricted
  • Very long range
  • Ready for operation immediately thanks to fixed setting
  • Excellent price/performance ratio
  • ce
  • eac
  • cul
  • iolink
Download
Technische Details
Application
Function principle Through-beam sensor
Electrical data
Operating voltage [V] 10...30 DC; (cULus - Class 2 source required)
Rated insulation voltage [V] 32
Current consumption [mA] 16
Protection class III
Reverse polarity protection yes
Max. power-on delay time [ms] 300
Type of light red light
Wave length [nm] 662
Outputs
Electrical design PNP
Output function light-on mode
Max. voltage drop switching output DC [V] 2.5
Minimum load current [mA] 5
Max. leakage current [mA] 0.05
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Monitoring range
Transmitter / receiver receiver
Range [m] 20
Range adjustable no
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9
IO-Link device ID 1144 d / 00 04 78 h
Profiles Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel
SIO mode yes
Required master port class A
Operating conditions
Ambient temperature [°C] -25...60
Storage temperature [°C] -40...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 961
UL approval
Ta -25...60 °C
Enclosure type Type 1
voltage supply Class 2
File number UL E174191
Mechanical data
Weight [g] 68.3
Housing rectangular
Dimensions [mm] M18 x 1
Thread designation M18 x 1
Material diecast zinc; PEI
Lens material
PMMA
Displays / operating elements
Display
Switching status 1 x LED, yellow
Power 1 x LED, green
Accessories
Accessories (supplied)
lock nut: 1 x
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12
Diagrams and graphs

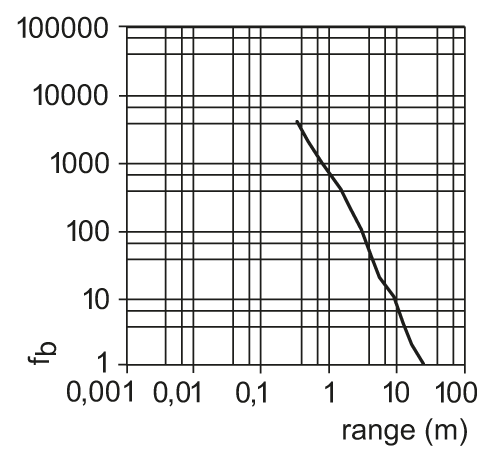

excess gain graph
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — OGE281-03 — 15.02.2019 —
