OG5109

Diffuse reflection sensor

OGH-FPKG/V4A/6M

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

Download
Technische Details
Product characteristics
Type of light red light
Housing Threaded type
Dimensions [mm] M18 x 1 / L = 63
Application
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] < 40
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 660
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (configurable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 150; (200 (...60 °C))
Switching frequency DC [Hz] 250
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Range [mm] 30...130; (white paper 200 x 200 mm 90 % remission)
Range adjustable yes
Max. light spot diameter [mm] 12
Light spot dimensions refer to at maximum range
Background suppression available yes
Operating conditions
Ambient temperature [°C] -20...80
Protection IP 68; IP 69K
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
Mechanical data
Housing Threaded type
Dimensions [mm] M18 x 1 / L = 63
Thread designation M18 x 1
Material stainless steel (1.4404 / 316L); PBT
Lens material
PMMA
Displays / operating elements
Display
Switching status 1 x LED, yellow
Power 1 x LED, green
Function 1 x LED, red
Accessories
Accessories (supplied)
lock nuts: 2 x
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 6 m, PVC; 3 x 0.34 mm²
Diagrams and graphs

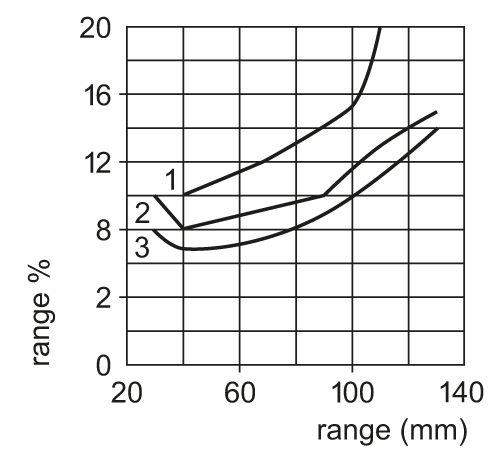

Background suppression chart
x: distance sensor/object [mm]
y: min. distance object/background [mm]
1 = object black (6 % remission) , background (white 90 % remission)
2 = object grey (18 % remission) , background (white 90 % remission)
3 = object white (90 % remission) , background (white 90 % remission)
Note : range % = setting in % of the range
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — OG5109-00 — 06.03.2003 —
