OG5069

Through-beam sensor receiver

OGELFNKG/B2/V4A/US-100

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

Download
Technische Details
Product characteristics
Type of light red light
Housing Threaded type
Dimensions [mm] M18 x 1 / L = 72
Application
Function principle Through-beam sensor
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 24
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 675
Outputs
Electrical design NPN
Output function light-on/dark-on mode; (configurable)
Max. voltage drop switching output DC [V] 2.5
Function check output yes
Max. voltage drop of function check output [V] 3.5
Max. current load for function check output [mA] 10
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 500
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Transmitter / receiver receiver
Range [m] < 6
Range adjustable yes
Diameter of the smallest detectable object [mm] 1
Operating conditions
Ambient temperature [°C] -10...50
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
Mechanical data
Housing Threaded type
Dimensions [mm] M18 x 1 / L = 72
Thread designation M18 x 1
Material stainless steel (1.4404 / 316L); PBT
Lens material
PMMA
Displays / operating elements
Display
Switching status 1 x LED, yellow
Power 1 x LED, green
Function 1 x LED, red
Accessories
Accessories (supplied)
lock nuts: 2 x
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; Contacts: gold-plated
Diagrams and graphs

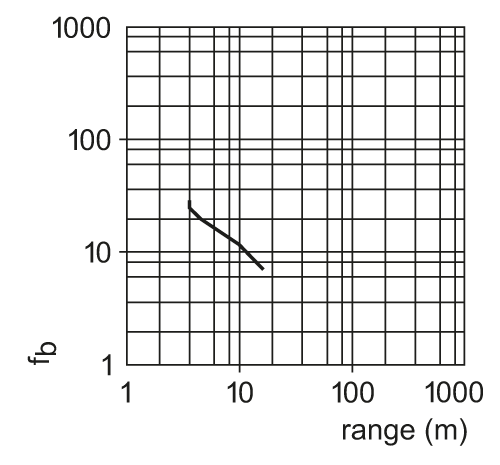

excess gain graph
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — OG5069-01 — 06.03.2003 —
