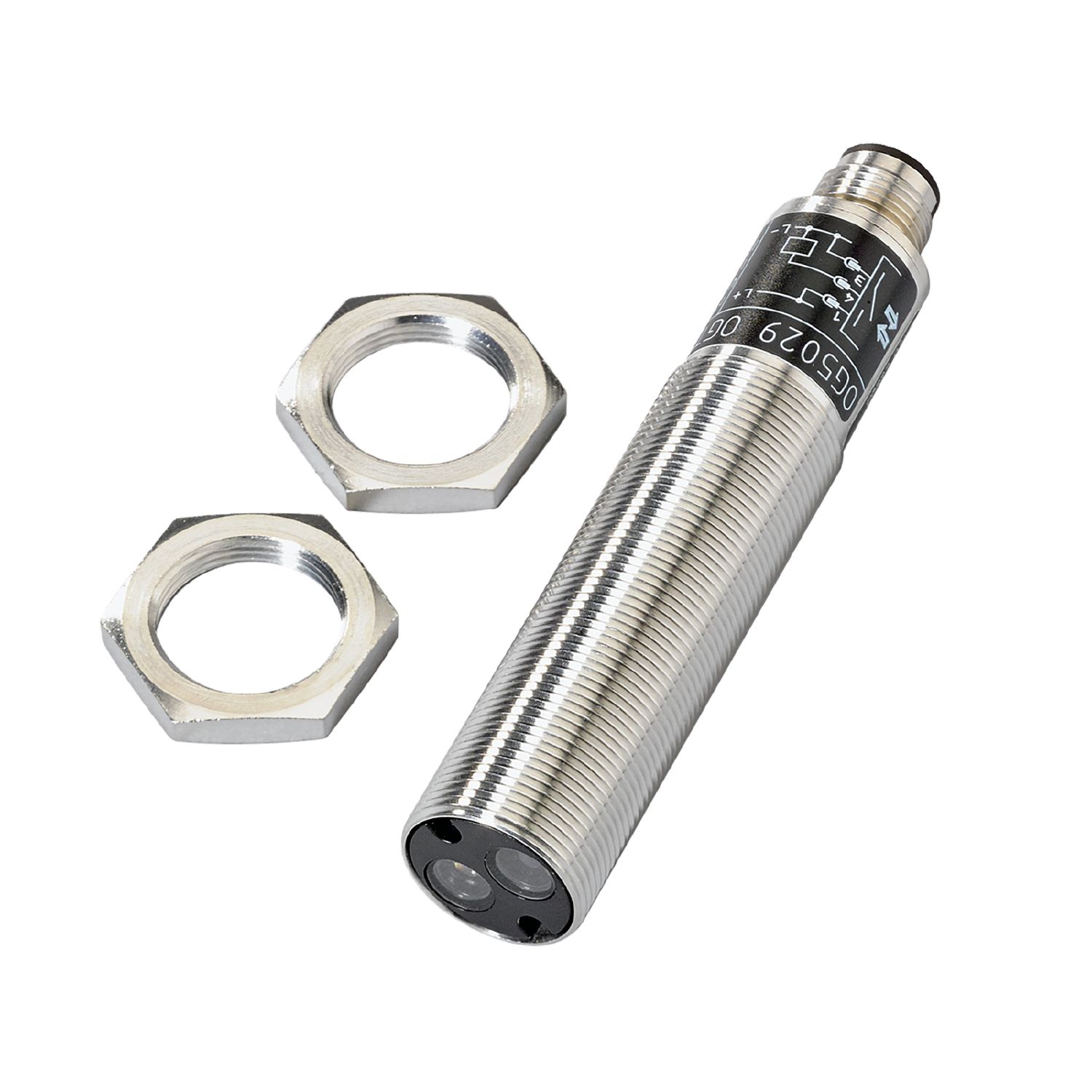

Diffuse reflection sensor
OG5029
OGT-HPKG/US-100-DPS
Diffuse reflection sensor
OG5029
OGT-HPKG/US-100-DPS
- Clearly visible indication of the switching status
- Robust housing for use in harsh industrial environments
- Ready for operation immediately thanks to fixed setting
- Extensive range of mounting components
Product characteristics
| Type of light | Infrared light |
|---|---|
| Housing | Threaded type |
Application
| Function principle | Diffuse reflection sensor |
|---|
Electrical data
| Operating voltage [V] | 10...55 DC |
|---|---|
| Current consumption [mA] | 10; ((24 V)) |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | Infrared light |
| Wave length [nm] | 880 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 160 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Range [mm] | < 100; (white paper 200 x 200 mm) |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 826 |
Mechanical data
| Weight [g] | 74.3 | |
|---|---|---|
| Housing | Threaded type | |
| Dimensions [mm] | M18 x 1 | |
| Thread designation | M18 x 1 | |
| Material | brass nickel-plated | |
| Lens material |
|
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — OG5029-00 — 13.04.2023 —
OG5029 –
OGT-HPKG/US-100-DPS
Electrical connection
Connector: 1 x M12; coding: A
