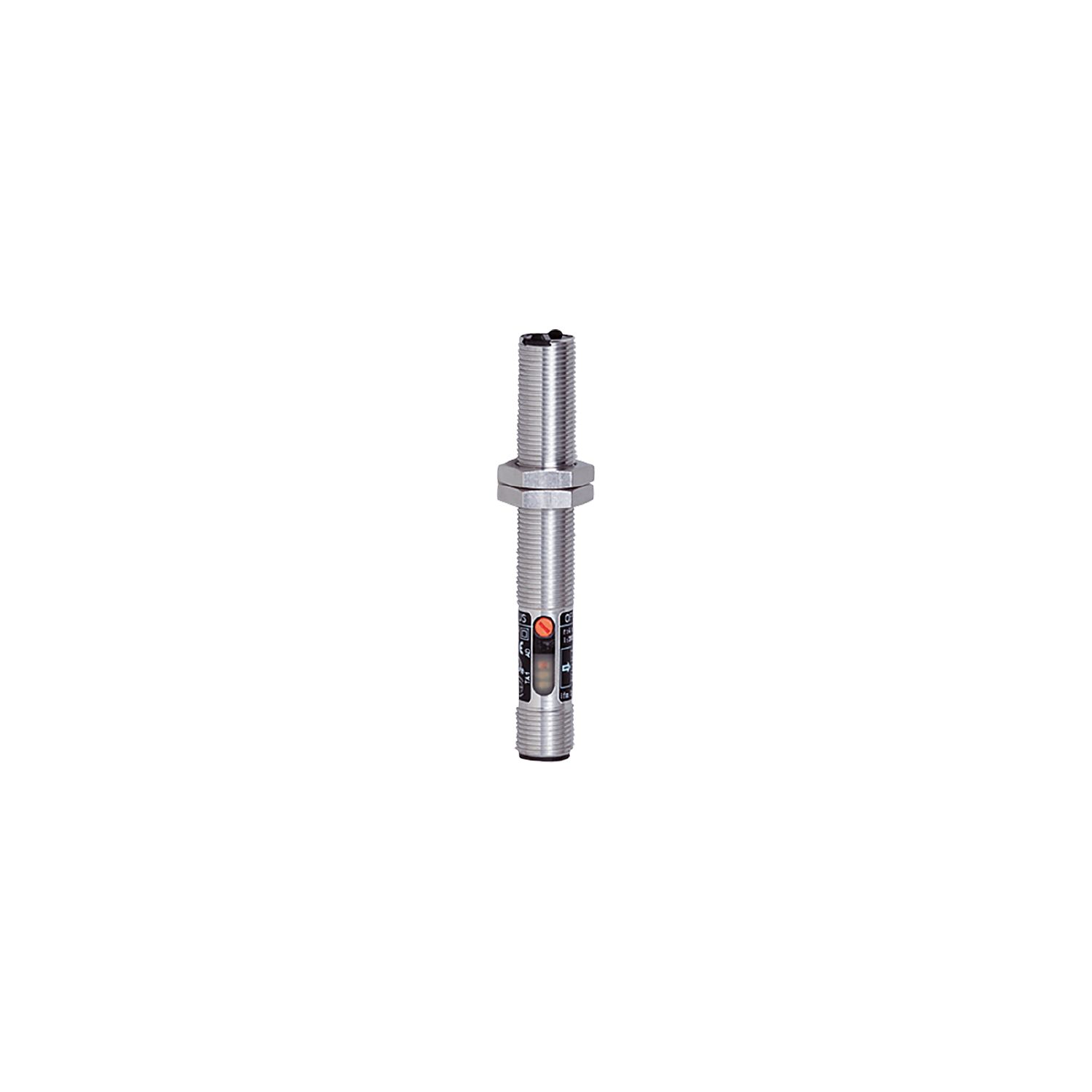

Diffuse reflection sensor

OF5012

OFT-FPKG/US-100

Diffuse reflection sensor

OF5012

OFT-FPKG/US-100

  • Intuitive setting of the sensitivity via potentiometer
  • With function check output to signal soiling or maladjustment
  • Robust metal housing for use in harsh industrial environments
  • Programmable light-on/dark-on mode
  • LED display to check operation, switching status and function
  • ce
  • ukca
  • cul
Product characteristics
Type of light Infrared light
Housing Threaded type
Application
System Function check output
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] < 35
Protection class II
Reverse polarity protection yes
Type of light Infrared light
Wave length [nm] 880
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V] 2.5
Function check output yes
Max. voltage drop of function check output [V] 3.5
Max. current load for function check output [mA] 10
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 320
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Range [mm] 1...200; (white paper 200 x 200 mm)
Range adjustable yes
Max. light spot diameter [mm] 92
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 65
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 607
Mechanical data
Weight [g] 43
Housing Threaded type
Dimensions [mm] M12 x 1 / L = 74
Thread designation M12 x 1
Material brass nickel-plated
Lens material
PMMA
Displays / operating elements
Display
Switching status 1 x LED, yellow
Power 1 x LED, green
Function 1 x LED, red
Accessories
Items supplied
lock nuts: 2
screwdrivers
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
Diagrams and graphs
excess gain graph
