Diffuse reflection sensor

OF5010

OFT-FPKG

Diffuse reflection sensor

OF5010

OFT-FPKG

  • Compact housing for use where space is restricted
  • Robust metal housing for use in harsh industrial environments
  • Programmable light-on/dark-on mode
  • LED display to check operation, switching status and function
  • ce
  • ukca
  • cul
Product characteristics
Type of light Infrared light
Housing Threaded type
Application
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...36 DC
Current consumption [mA] < 30
Protection class II
Reverse polarity protection yes
Type of light Infrared light
Wave length [nm] 880
Outputs
Electrical design PNP
Output function light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 320
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Range [mm] 1...200; (white paper 200 x 200 mm)
Range adjustable no
Max. light spot diameter [mm] 92
Light spot dimensions refer to at maximum range
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011 class B
MTTF [years] 891
Mechanical data
Weight [g] 73
Housing Threaded type
Dimensions [mm] M12 x 1 / L = 60
Thread designation M12 x 1
Material brass nickel-plated
Lens material
PMMA
Displays / operating elements
Display
Switching status 1 x LED, yellow
Power 1 x LED, green
Accessories
Items supplied
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PUR; 3 x 0.34 mm²
Diagrams and graphs

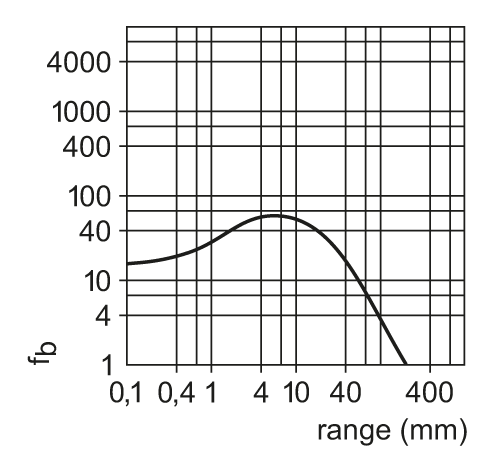

excess gain graph
