O6T401

Diffuse reflection sensor

O6T-FNKG/AS/4P

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Robust stainless steel housing for use in metalworking and in the automotive industry
  • Resistant to oils and coolants
  • High protection rating for the requirements of harsh industrial environments
  • Intuitive setting of range and output function
  • Range is independent of the object color
  • ce
  • eac
  • cul
Download
Technische Details
Product characteristics
Type of light red light
Housing rectangular
Dimensions [mm] 41.3 x 13 x 21
Application
Function principle Diffuse reflection sensor
Application suited for use in the machine tool industry
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] 16; ((24 V))
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length [nm] 633
Outputs
Electrical design NPN
Output function light-on/dark-on mode; (selectable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Monitoring range
Range [mm] 5...500; (white paper 200 x 200 mm 90 % remission)
Range adjustable yes
Max. light spot diameter [mm] 15
Light spot dimensions refer to at maximum range
Monitoring range final value [mm] 100...500
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 65; IP 67; IP 68
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 910
UL approval
UL approval number E010
Mechanical data
Weight [g] 35.7
Housing rectangular
Dimensions [mm] 41.3 x 13 x 21
Material housing: stainless steel (1.4404 / 316L); plastics: PPSU; sealing: FKM
Lens material
PMMA
Lens alignment Side sensing
Displays / operating elements
Display
Switching status 1 x LED, yellow
Power 1 x LED, green
Remarks
Remarks
cULus - Class 2 source required
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M8
Diagrams and graphs

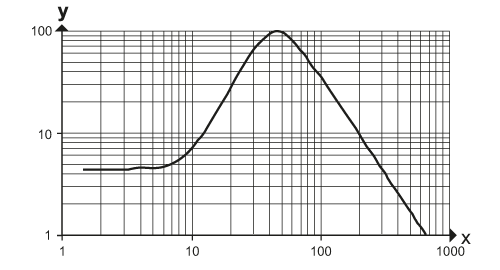

excess gain graph
x: distance [mm]
y: excess gain factor
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — O6T401-00 — 23.10.2015 —
