Retro-reflective sensor
O6P301
O6P-FPKG/0,30m/US
Retro-reflective sensor
O6P301
O6P-FPKG/0,30m/US
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Very long range independent of the object color
- Intuitive setting of sensitivity and output function
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| System | polarization filter |
|---|---|
| Function principle | Retro-reflective sensor |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 12; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 633 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (selectable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
Monitoring range
| Range referred to prismatic reflector [m] | 0.05...5; (Prismatic reflector Ø 80 E20005) |
|---|---|
| Range adjustable | yes |
| Max. light spot diameter [mm] | 150 |
| Light spot dimensions refer to | at maximum range |
| Polarization filter available | yes |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 908 | ||
| UL approval |
|
Mechanical data
| Weight [g] | 51.7 | |
|---|---|---|
| Housing | rectangular | |
| Material | housing: stainless steel (1.4404 / 316L); plastics: PPSU; sealing: EPDM | |
| Lens material |
|
|
| Lens alignment | Side sensing | |
| Tightening torque [Nm] | 1; (screws) |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 0.3 m, PVC; 3 x 0.25 mm² |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
Diagrams and graphs
|

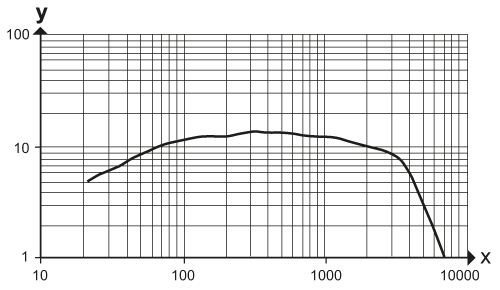

excess gain graph
|
|
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — O6P301-02 — 13.04.2023 —
O6P301 –
O6P-FPKG/0,30m/US
- 1
- output function switch
- 1
- potentiometer sensitivity

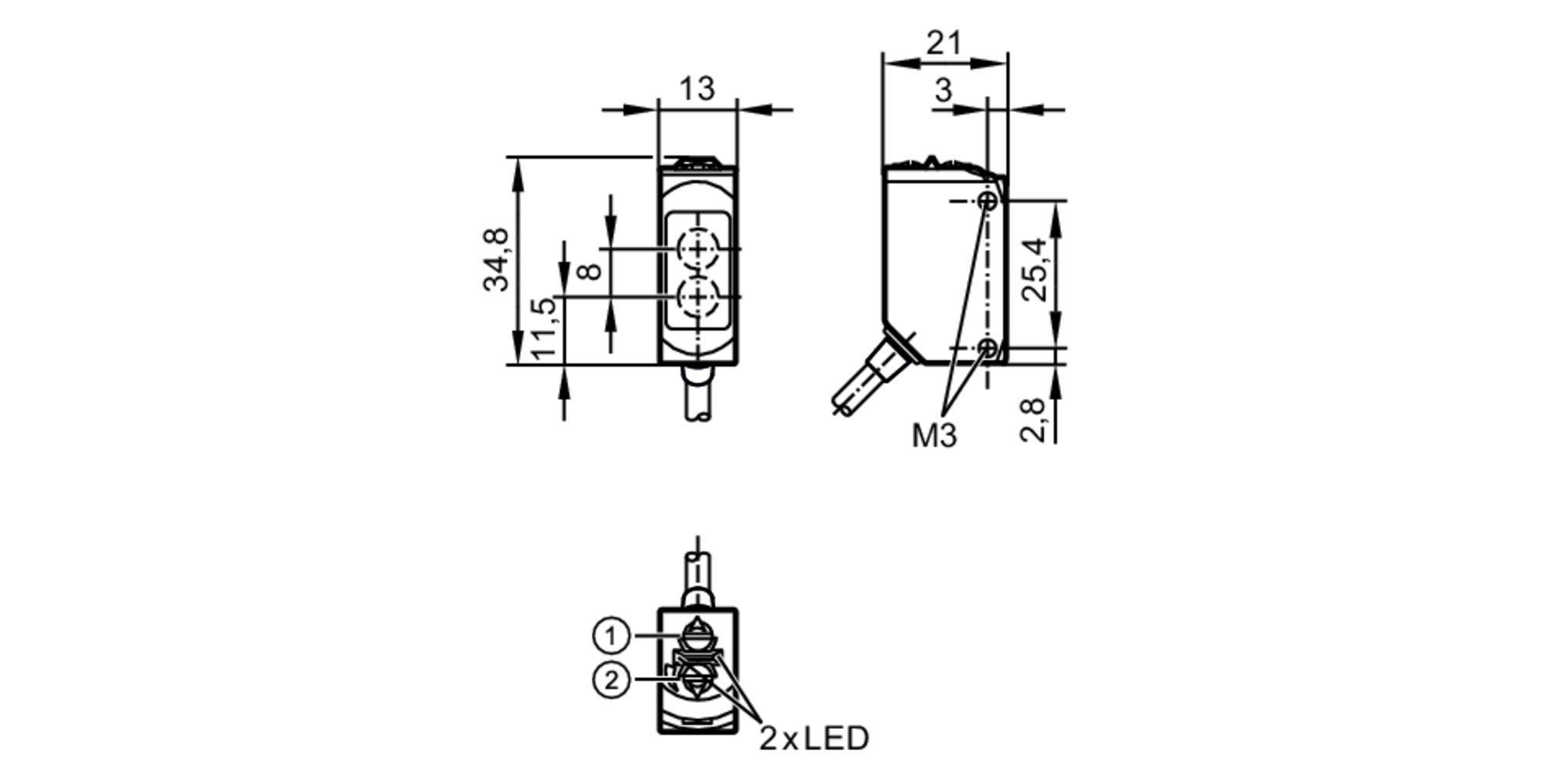

- Receiver in upper lens
- transmitter in lower lens
Electrical connection
Cable: 0.3 m, PVC; 3 x 0.25 mm²
Connector: 1 x M12; coding: A
