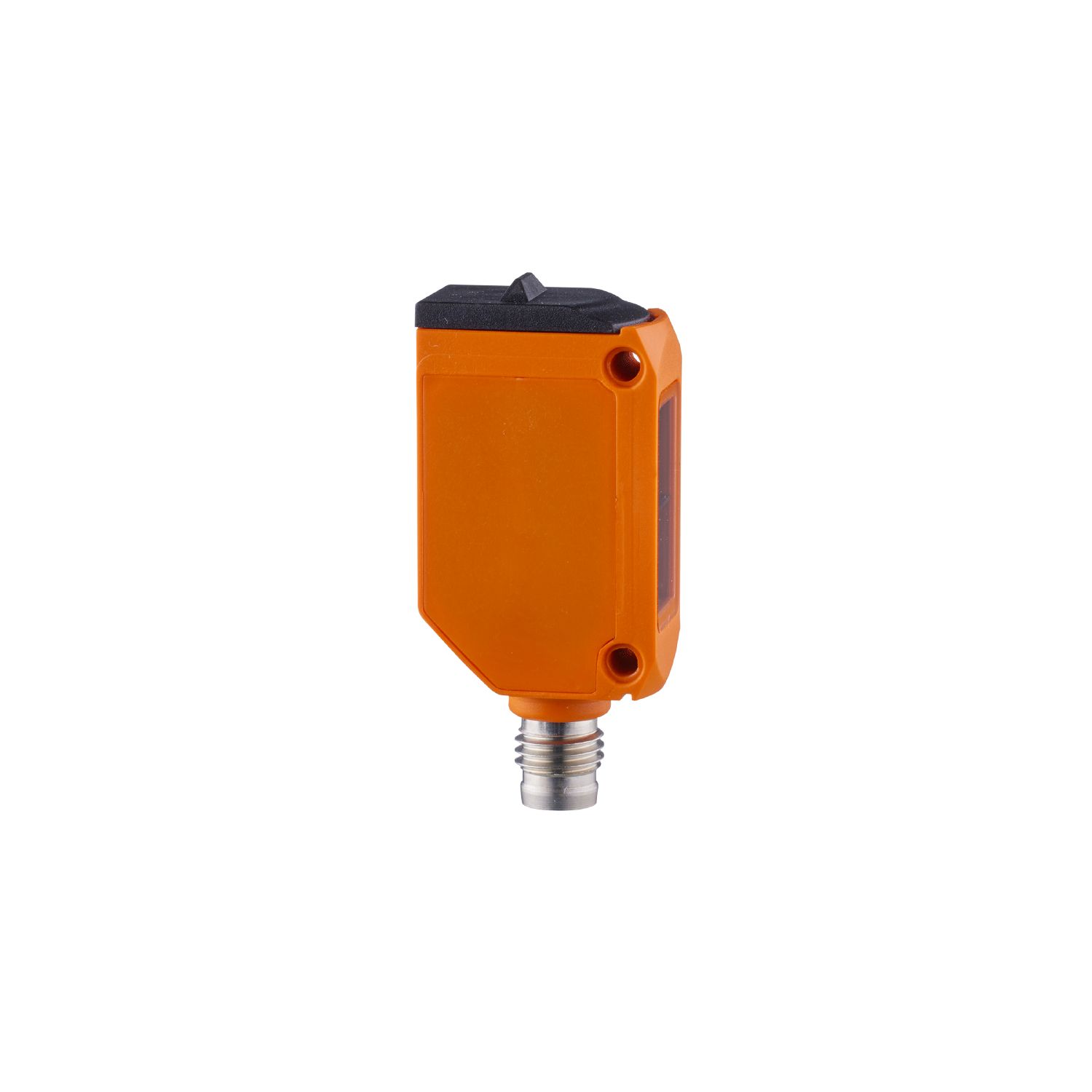

Diffuse reflection sensors with background suppression

O6H213

O6H-HNKG/AS/4P

Diffuse reflection sensors with background suppression

O6H213

O6H-HNKG/AS/4P

  • Particularly compact housing for use where space is restricted
  • Ready for operation immediately thanks to fixed setting
  • For applications in robotics, assembly and handling technology
  • Precise background suppression sensing on highly reflective background
  • Excellent price/performance ratio
{{ifmVariantName}}



  • ce
  • eac
  • cul
Technical details
Product characteristics
Type of light red light
Housing rectangular
Dimensions [mm] 46 x 13 x 21
Application
System Background suppression
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] 22; ((24 V))
Protection class III
Reverse polarity protection yes
Type of light red light
Wave length [nm] 633
Outputs
Electrical design NPN
Output function light-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Monitoring range
Range [mm] < 100; (white paper 200 x 200 mm)
Range on white object (90 % remission) [mm] < 100
Range on grey object (18 % remission) [mm] 4...100
Range on black object (6 % remission) [mm] 8...100
Max. light spot diameter [mm] 6
Light spot dimensions refer to at maximum range
Background suppression available yes
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 1113
UL approval
UL approval number E001
Mechanical data
Weight [g] 13.1
Housing rectangular
Dimensions [mm] 46 x 13 x 21
Material housing: ABS; PPSU
Lens material
PMMA
Lens alignment Side sensing
Sealing material EPDM
Tightening torque [Nm] 0.5
Displays / operating elements
Display
Switching status 1 x LED, yellow
Power 1 x LED, green
Remarks
Remarks
cULus - Class 2 source required
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M8; Locking: brass, coated; sealing: EPDM
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — O6H213-00 — 24.10.2014 —
