Inductive NAMUR sensor

NG5010

Product characteristics

Electrical data

Connection at circuit amplifier	yes
Switching amplifiers	connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW
Nominal voltage DC [V]	8.2; (1kΩ)
Supply voltage DC [V]	7.5...30; (when used outside the hazardous area)
Current consumption [mA]	< 1; (disabled; conductive: > 2,1)
Protection class	II

Outputs

Electrical design	NAMUR
Output function	normally closed
Permanent current rating of switching output DC [mA]	30; (when used outside the hazardous area)
Switching frequency DC [Hz]	300

Monitoring range

Sensing range [mm]	8
Real sensing range Sr [mm]	8 ± 10 %

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
Hysteresis [% of Sr]	1...15
Switch-point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-20...80
Protection	IP 67

Tests / approvals

Approval

PTB 01 ATEX 2191; BVS 04 ATEX E153; TIIS TC16108; IECEx BVS 06.0003

ATEX marking

II 1G Ex ia IIB T6 Ga

II 2G Ex ia IIC T6 Gb

II 1D Ex ia IIIC T 90°C Da

EMC

EN 60947-5-6

Shock/vibration resistance

30 g (11 ms) / 10-55 Hz (1 mm)

MTTF [years]

4512

Safety classification

Max. internal capacitance [nF]	157
Max. internal inductance [µH]	58

Mechanical data

Weight [g]	463.5
Housing	Threaded type
Mounting	non-flush mountable

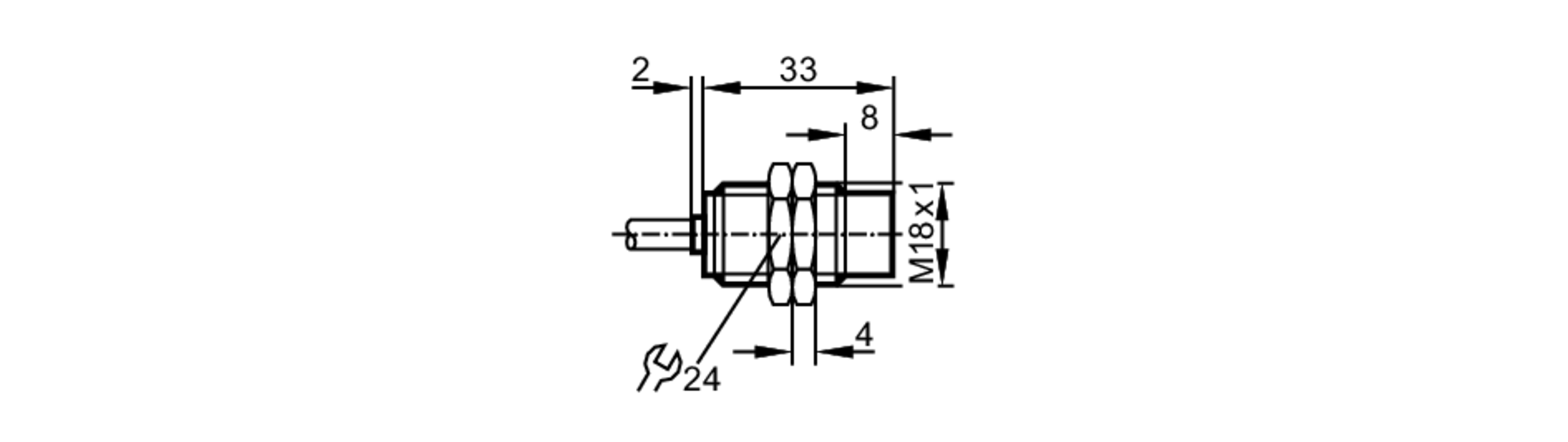

Dimensions [mm]	M18 x 1 / L = 33
Thread designation	M18 x 1
Material	brass white bronze coated; sensing face: PBT

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 10 m, PVC; 2 x 0.5 mm²
