- L33520

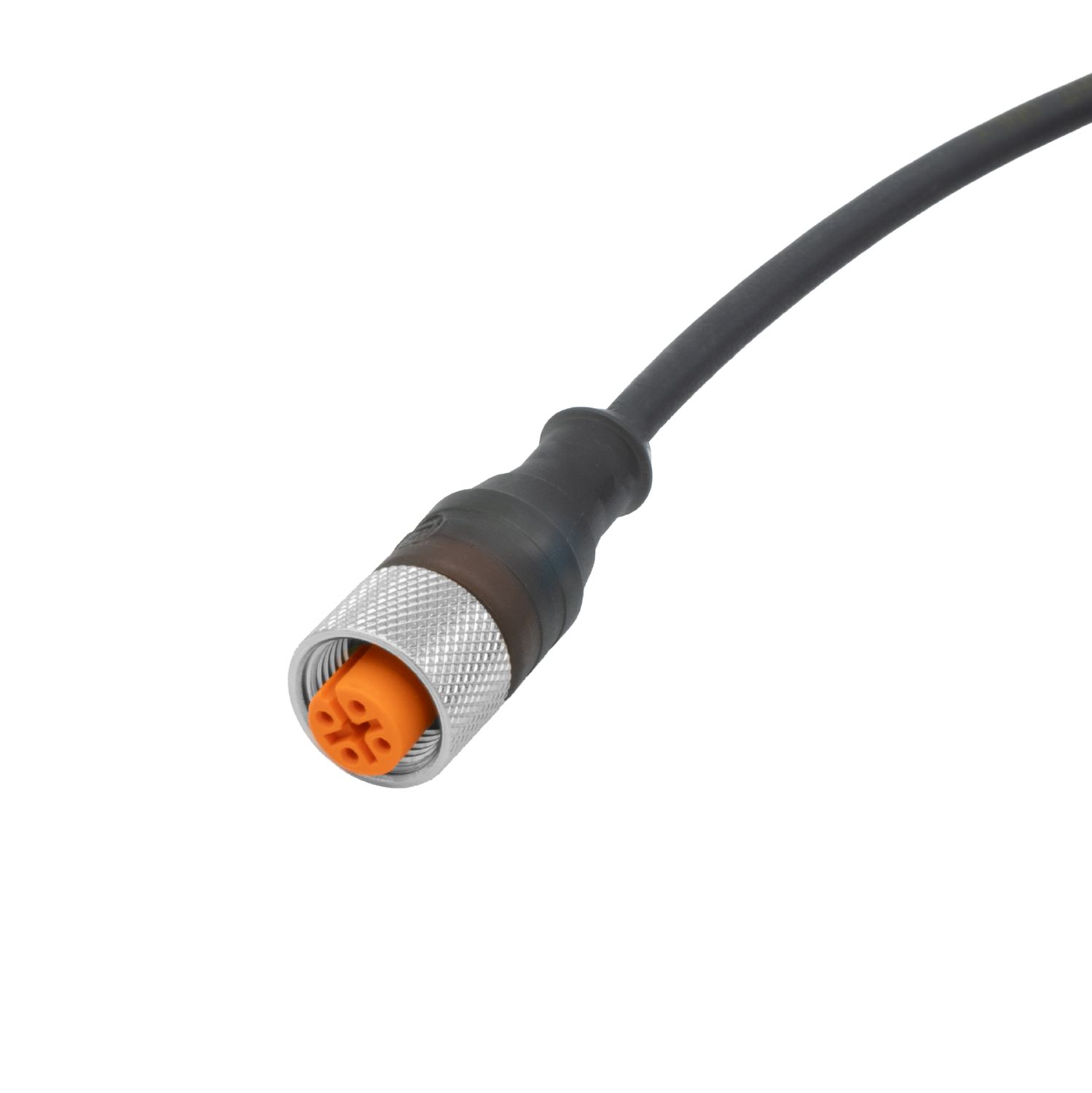

Female cordset
L33520
ADOGH043MSS0005H04
Female cordset
L33520
ADOGH043MSS0005H04
- Gold-plated contacts for reliable electrical connections
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Clearly visible LEDs for indicating switching status and operation
Application
| System | Halogen-free |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 361.966 |
|---|---|
| Dimensions [mm] | 15 x 15 x 42 |
| Material | TPU (urethane) transparent |
| Molded-body material | TPU (urethane), transparent |
| Material nut | brass, nickel-plated |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 5 m, PUR, Halogen-free, black, Ø 4.8 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
Electrical connection - Socket
| Connection | Connector: 1 x M12, straight; coding: A; Moulded body: TPU (urethane), transparent; Locking: brass, nickel-plated; Tightening torque: 0.5 Nm |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — L33520-00 — 30.04.2008 —
L33520 –
ADOGH043MSS0005H04
Electrical connection
Cable: 5 m, PUR, Halogen-free, black, Ø 4.8 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - Socket
Connector: 1 x M12, straight; coding: A; Moulded body: TPU (urethane), transparent; Locking: brass, nickel-plated; Tightening torque: 0.5 Nm
Connection
- Core colors :
- BN =
- brown
- BK =
- black
- BU =
- blue
- WH =
- white
