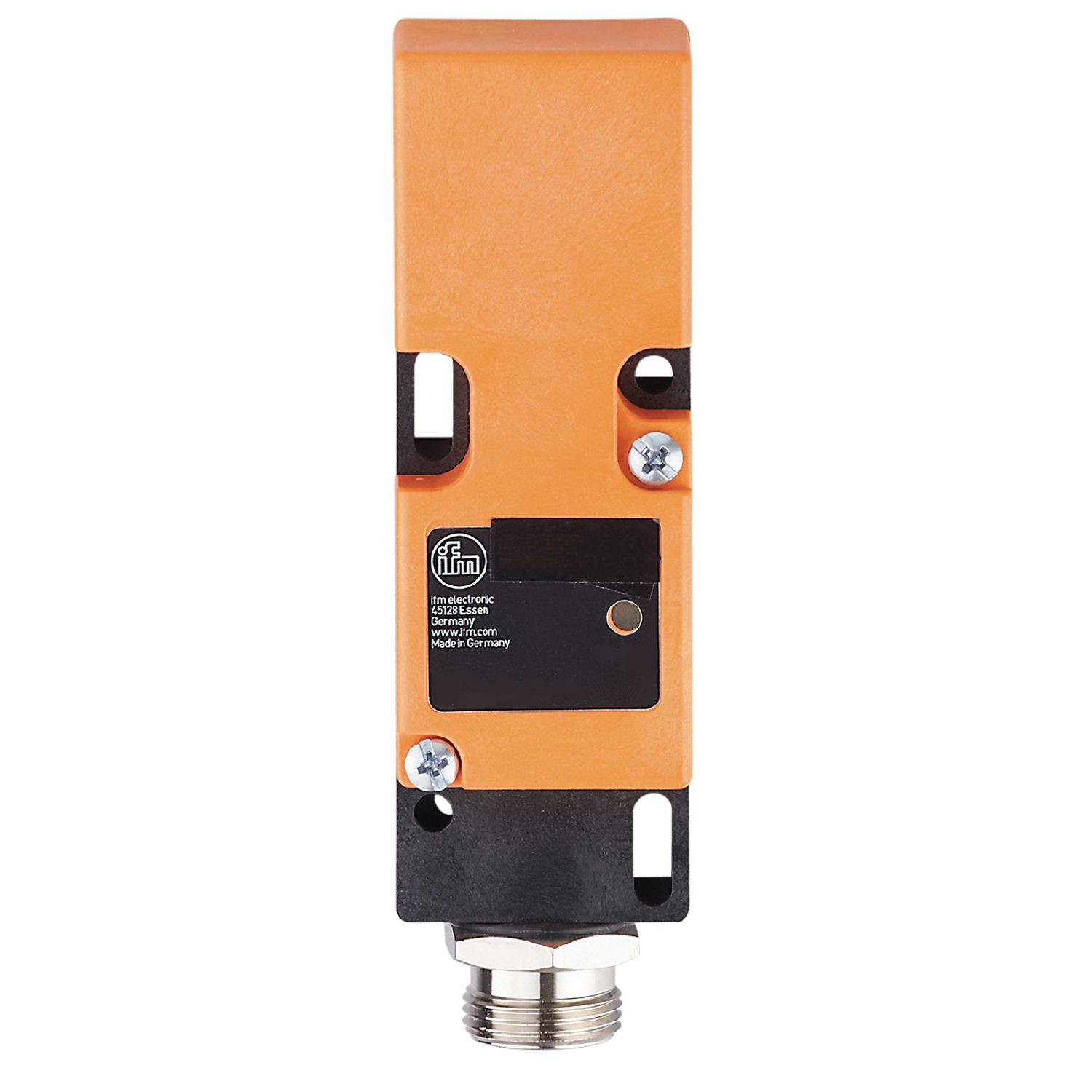

Inductive sensor
IM8504
IME3020-FPKG/LS400LPS
Inductive sensor
IM8504
IME3020-FPKG/LS400LPS
- Long sensing range for use in conveying
- Output function normally open / normally closed programmable
- Robust housing for use in harsh industrial environments
- Clearly visible indication of the switching status
Product characteristics
| Output function | normally open / closed; (selectable) |
|---|---|
| Sensing range [mm] | 20 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 40 x 120 |
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Reverse polarity protection | yes |
Outputs
| Output function | normally open / closed; (selectable) |
|---|---|
| Max. voltage drop switching output DC [V] | 1.6 |
| Minimum load current [mA] | 0 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 350 |
| Short-circuit protection | yes |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 20 |
|---|---|
| Real sensing range Sr [mm] | 20 ± 10 % |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
| Switch-point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 226.796 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 40 x 40 x 120 |
| Material | PPE |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: 1 x 7/8"; coding: A |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — IM8504-00 — 06.03.2006 —
IM8504 –
IME3020-FPKG/LS400LPS
Electrical connection - plug
Connector: 1 x 7/8"; coding: A
