Inductive sensor
IM5084

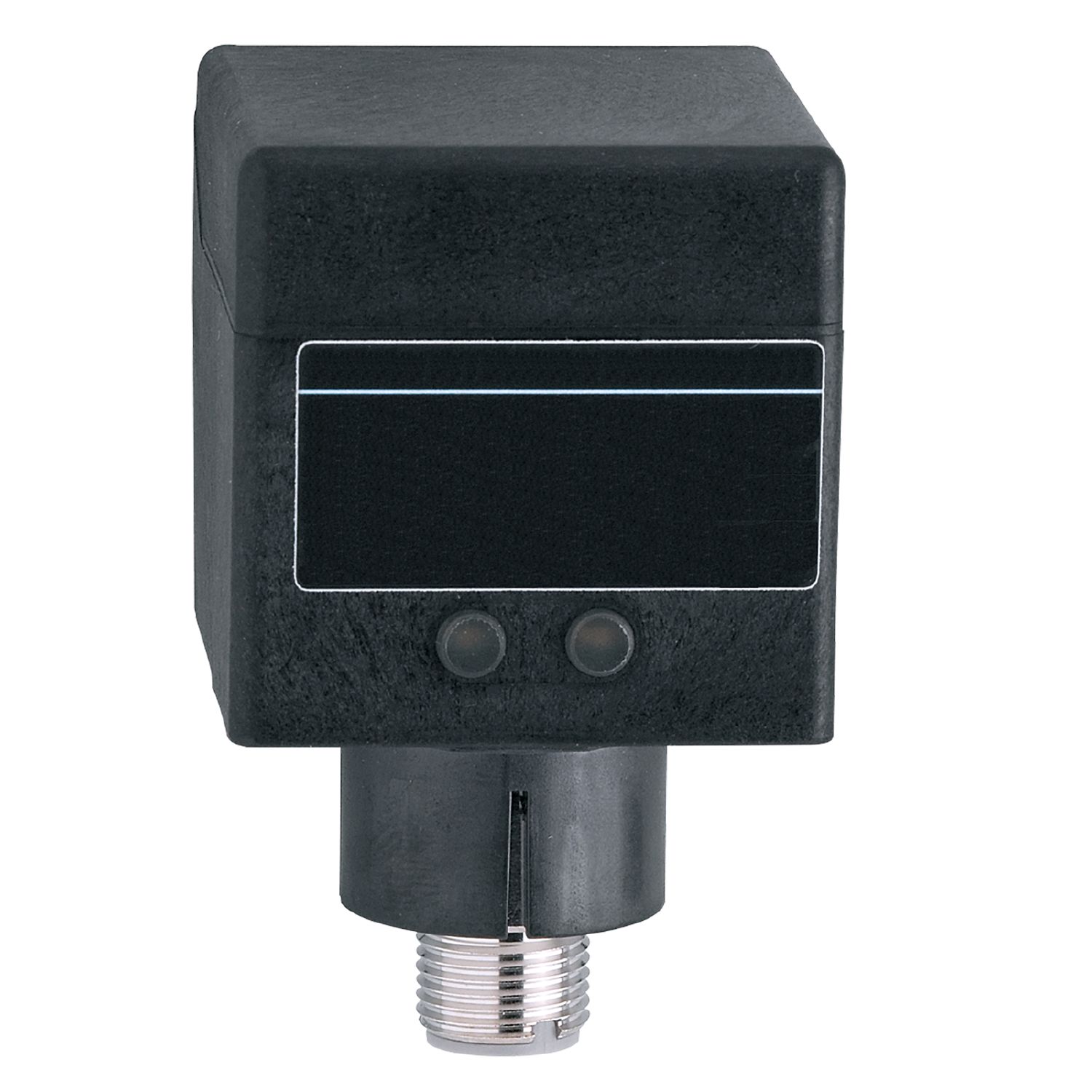

IMC4020UCPKG/K1/SC/US-100-DPA
Inductive sensor
IM5084
IMC4020UCPKG/K1/SC/US-100-DPA
- Weld slag resistant coating
- Complementary output function NO/NC
- Robust housing for use in harsh industrial environments
- LED display for switching status and operation
- Correction factor K=1: Constant sensing range on all metals
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Sensing range [mm] | 20 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 40 x 66 |
Application
| System | gold-plated contacts; correction factor = 1; Magnetic-field immune; weld coated |
|---|---|
| Magnetic-field immune | yes |
| Max. electromagnetic field immunity [mT] | 300 |
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | 20; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 200 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 20 |
|---|
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 1.1 / brass: 1.1 / aluminum: 1.1 / copper: 1.1 |
|---|---|
| Correction factor = 1 | yes |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 945 | ||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 240 |
|---|---|
| Housing | rectangular |
| Mounting | flush mountable |
| Dimensions [mm] | 40 x 40 x 66 |
| Material | housing: PPE; sensing face: PPE black weld coated; end cap: diecast zinc; clamp: diecast zinc black; screw: steel galvanized |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Locking: brass, white bronze coated; Contacts: gold-plated |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — IM5084-00 — 13.04.2023 —
IM5084 –
IMC4020UCPKG/K1/SC/US-100-DPA
Electrical connection - plug
Connector: 1 x M12; coding: A; Locking: brass, white bronze coated; Contacts: gold-plated
