  6. IIR203

Inductive full-metal sensor

IIB2012BARKG/AM/SC/0,3M/US/2LE

IIR203

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Weld slag resistant coating
  • Metal sensing face for heavy duty
  • High shock and vibration resistance
  • Particularly short housing for use where space is restricted
  • Two-wire technology
  • ce
  • eac
  • cul
Download
Technische Details
Electrical data
Operating voltage [V] 10...36 DC
Protection class III
Reverse polarity protection yes
Outputs
Electrical design PNP/NPN
Output function normally open
Max. voltage drop switching output DC [V] 2.5
Minimum load current [mA] 2
Max. leakage current [mA] 0.6
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 25
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Sensing range [mm] 12
Operating distance [mm] 0...9.7
Increased sensing range yes
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.6 / aluminum: 0.5 / copper: 0.1
Hysteresis [% of Sr] 1...20
Operating conditions
Ambient temperature [°C] -25...70
Protection IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 emission class B
Impact resistance
EN 60068-2-27 Ehc 1 J
MTTF [years] 1389
UL approval
Ta 0...40 °C
Enclosure type Type 1
voltage supply Limited Voltage/Current
File number UL E174191
Mechanical data
Weight [g] 133.3
Housing Threaded type
Mounting flush mountable
Dimensions [mm] M30 x 1.5 / L = 40
Thread designation M30 x 1.5
Material housing: stainless steel (1.4404 / 316L) weld coated; sensing face: stainless steel (1.4404 / 316L) weld coated; cable plug: PA; lock nuts: stainless steel (1.4404 / 316L) weld coated
Full-metal housing yes
Displays / operating elements
Display
Switching status 1 x LED, green
Setting aid 1 x LED, red
Optical setting aid yes
Accessories
Accessories (supplied)
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connection Cable: 0.3 m, PVC; 2 x 0.5 mm²
Connection Connector: 1 x M12; Contacts: gold-plated
Diagrams and graphs

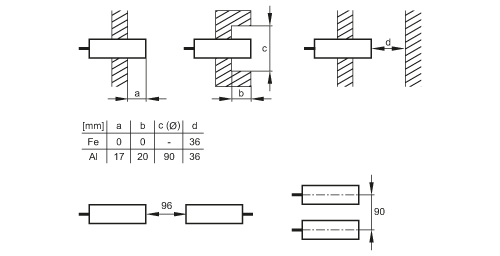

Installation
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — IIR203-00 — 15.04.2013 —
