Inductive sensor
IGT203
IGB3008BBPKG/M/V4A/US-104-DPS
Inductive sensor
IGT203
IGB3008BBPKG/M/V4A/US-104-DPS
- Wide operating temperature range
- Temperature shock resistant even in case of frequent temperature fluctuations
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
{{ifmVariantName}}
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 8 |
| Housing | Threaded type |
| Dimensions [mm] | M18 x 1 / L = 46 |
Application
| System | gold-plated contacts; Increased sensing range |
|---|---|
| Application | regular cleaning processes |
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | 10; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 600 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 8 |
|---|---|
| Operating distance [mm] | 0...6.48 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 1...20 |
Operating conditions
| Ambient temperature [°C] | 0...100 |
|---|---|
| Protection | IP 68; IP 69K; ("COP") |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 1727 | ||||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 44.7 |
|---|---|
| Housing | Threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M18 x 1 / L = 46 |
| Thread designation | M18 x 1 |
| Material | threaded sleeve: stainless steel (1.4404 / 316L); sensing face: PEEK; lock nuts: stainless steel |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — IGT203-01 — 13.04.2023 —
IGT203 –

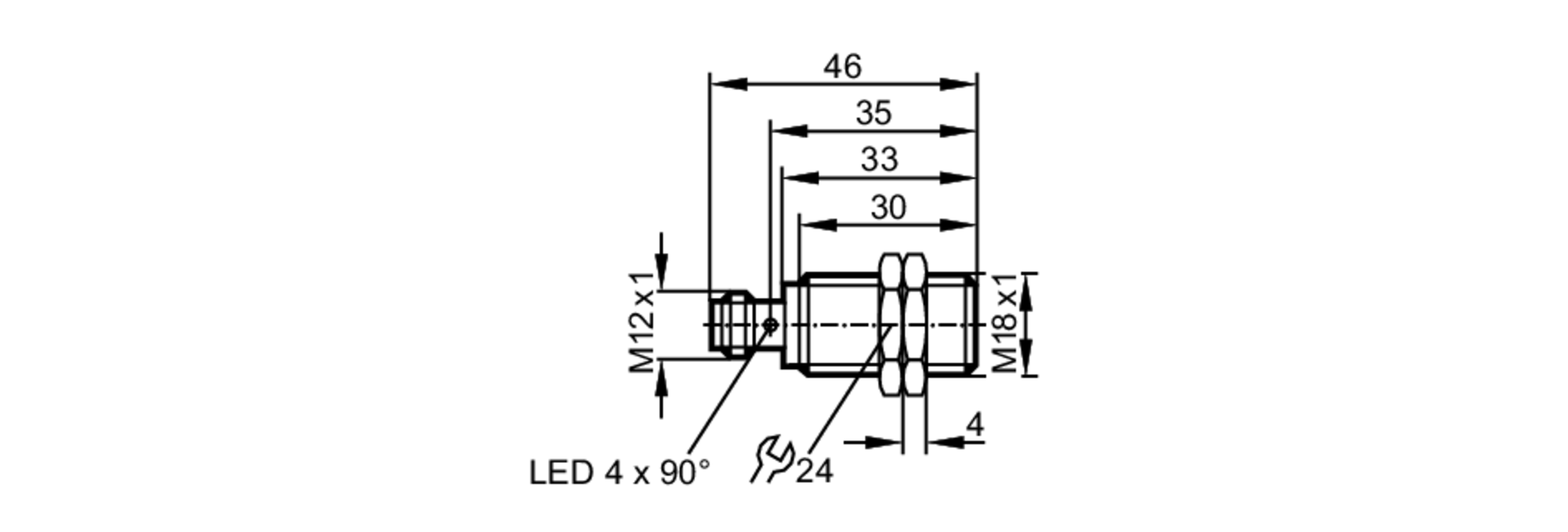

IGB3008BBPKG/M/V4A/US-104-DPS
Electrical connection - plug
Connector: 1 x M12; coding: A; Contacts: gold-plated
