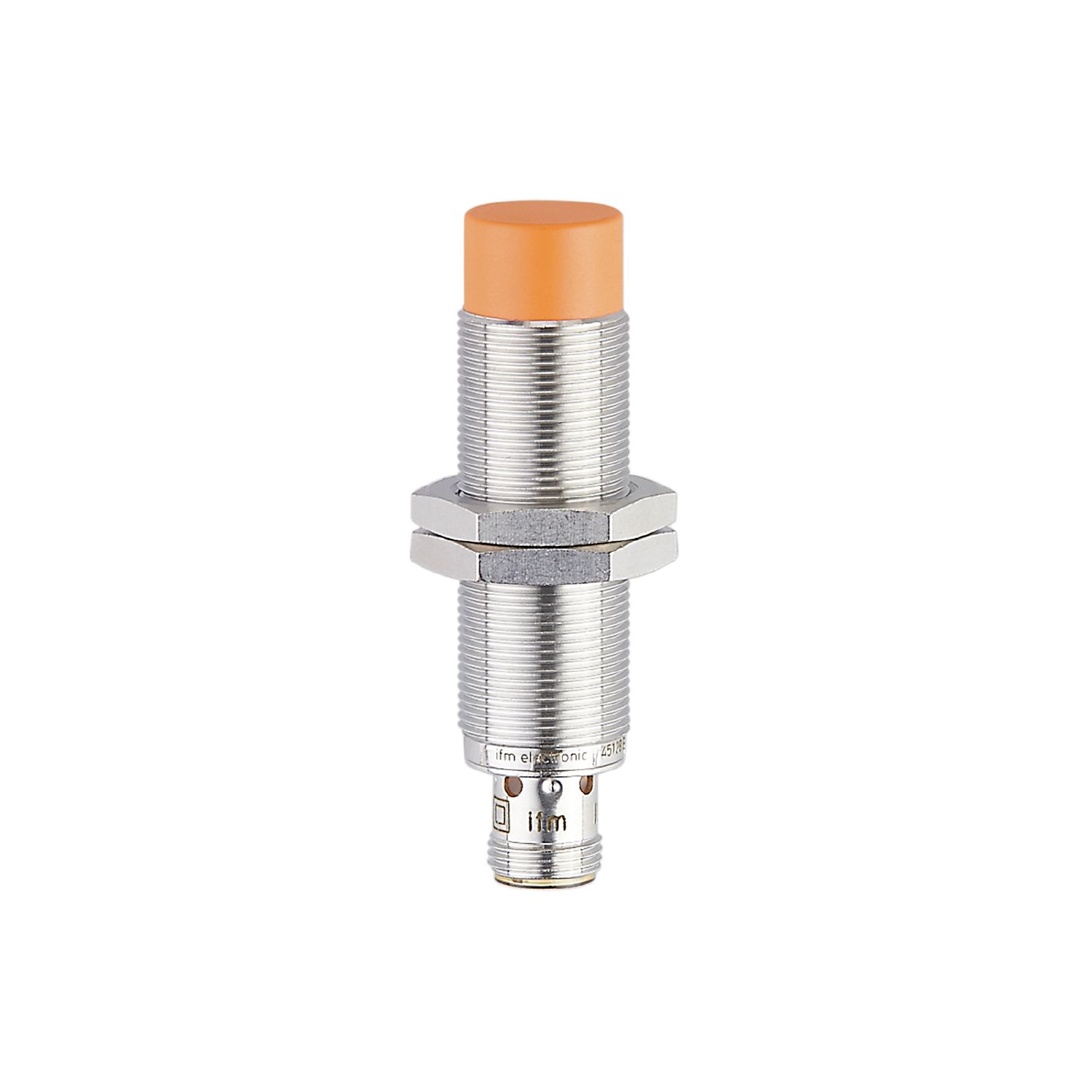

Inductive sensor
IGS209
IGKC012-ASKG/M/US-104-DRS/2LED
Inductive sensor
IGS209
IGKC012-ASKG/M/US-104-DRS/2LED
- Robust metal housing for use in harsh industrial environments
- Clearly visible indication of the switching status
- Operation as three-wire or two-wire possible
- Long sensing range minimizes physical damage
- With optical mounting and setting aid
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 12 |
| Housing | Threaded type |
| Dimensions [mm] | M18 x 1 / L = 70 |
Application
| System | gold-plated contacts; Increased sensing range; optical setting aid |
|---|---|
| Application | Industrial applications |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 12; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.8 |
| Minimum load current [mA] | 2; (only in 2-wire operation) |
| Max. leakage current [mA] | 0.6; (only in 2-wire operation) |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 300 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 12 |
|---|---|
| Real sensing range Sr [mm] | 12 ± 10 % |
| Operating distance [mm] | 0...9.7 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
| Switch-point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 1548 | ||||||||||
| UL approval |
|
Mechanical data
| Housing | Threaded type |
|---|---|
| Mounting | non-flush mountable |
| Dimensions [mm] | M18 x 1 / L = 70 |
| Thread designation | M18 x 1 |
| Material | housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated |
| Tightening torque [Nm] | 25 |
Displays / operating elements
| Display |
|
||||
|---|---|---|---|---|---|
| Optical setting aid | yes |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — IGS209-01 — 17.01.2024 —
IGS209 –
IGKC012-ASKG/M/US-104-DRS/2LED
Electrical connection - plug
Connector: 1 x M12; coding: A; Contacts: gold-plated
