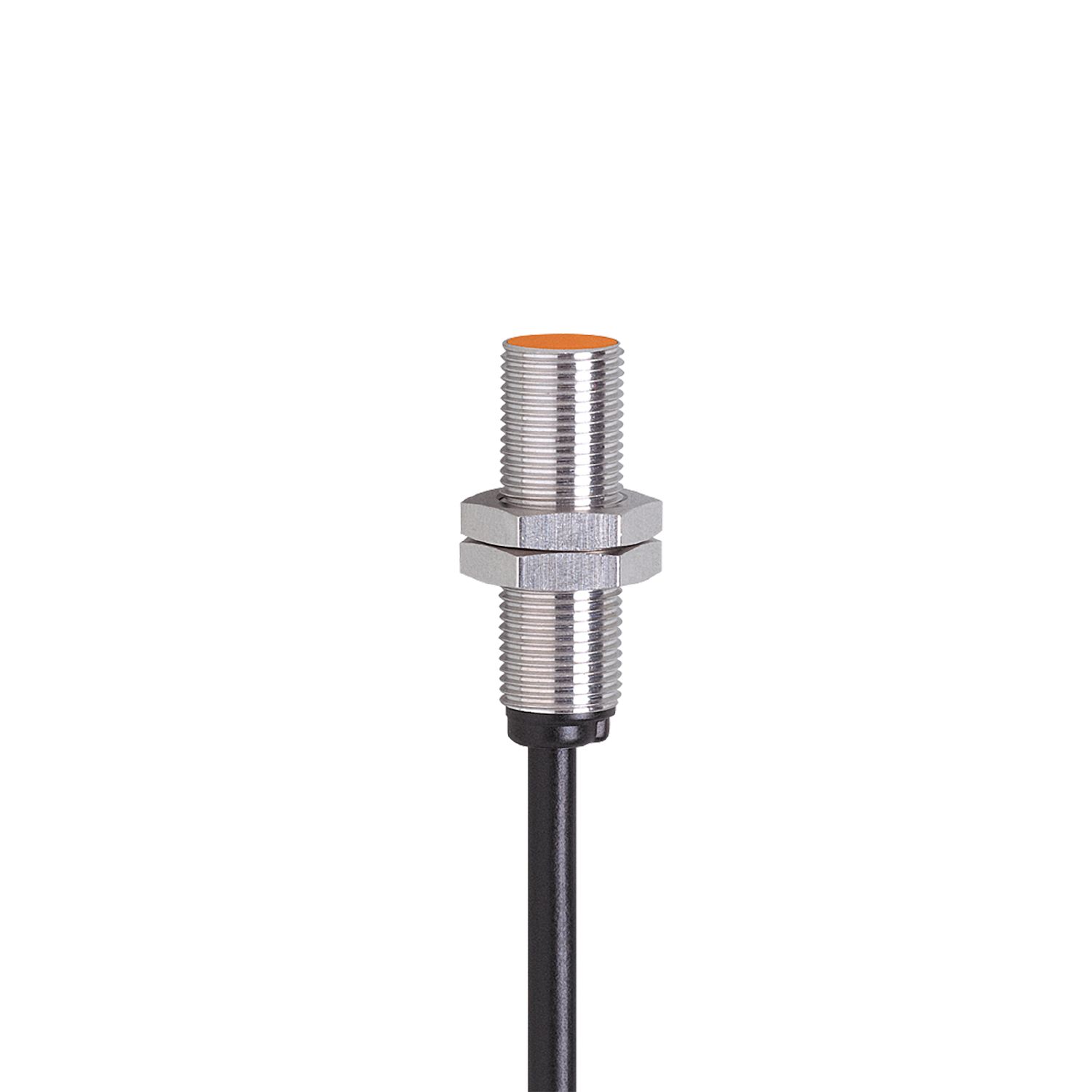

Inductive sensor
IF5955
IFB3002-BPKG/V2A/10-55V/3M/BH
Inductive sensor
IF5955
IFB3002-BPKG/V2A/10-55V/3M/BH
- Particularly short housing for use where space is restricted
- With long PUR cable
- Robust stainless steel housing for use in harsh industrial environments
- Very high switching frequency
- Clearly visible indication of the switching status
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 2 |
| Housing | Threaded type |
| Dimensions [mm] | M12 x 1 |
Application
| System | Halogen-free |
|---|
Electrical data
| Operating voltage [V] | 10...55 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 125; (150 (...50 °C)) |
| Short-time current rating of switching output [mA] | 150 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 2 |
|---|---|
| Real sensing range Sr [mm] | 2 ± 10 % |
| Operating distance [mm] | 0...1.6 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
| Switch-point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 2418 |
Mechanical data
| Weight [g] | 113.8 |
|---|---|
| Housing | Threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M12 x 1 |
| Thread designation | M12 x 1 |
| Material | housing: stainless steel (1.4305 / 303); sensing face: PBT; end cap: TPE |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 3 m, PUR, Halogen-free; 3 x 0.34 mm² |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — IF5955-00 — 13.04.2023 —
IF5955 –
IFB3002-BPKG/V2A/10-55V/3M/BH
Electrical connection
Cable: 3 m, PUR, Halogen-free; 3 x 0.34 mm²
