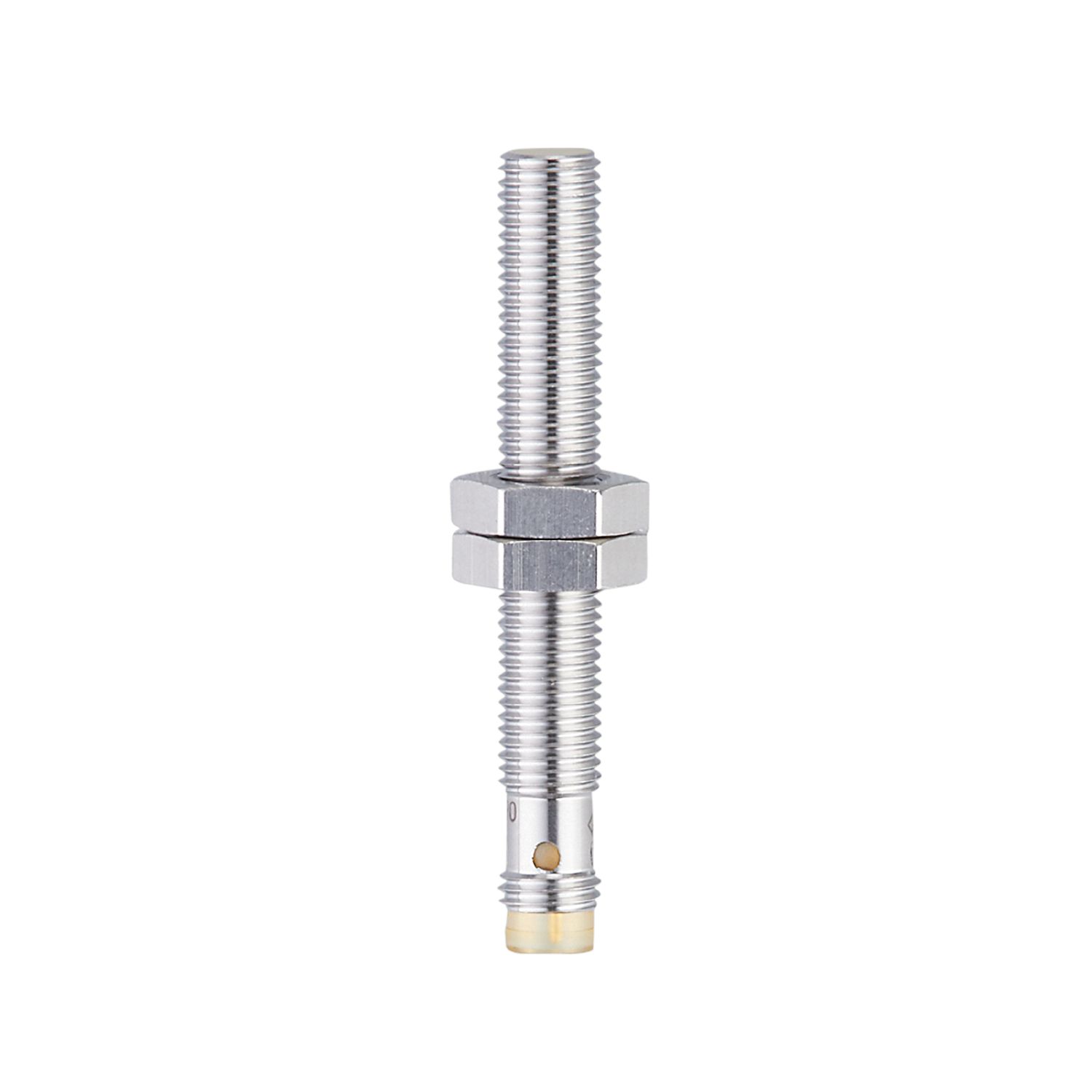

Inductive sensor
IE5390
IEK31,5-BPKG/V4A/K1/AS
Inductive sensor
IE5390
IEK31,5-BPKG/V4A/K1/AS
- Suitable for industrial, mobile, cooling and lubricating applications
- High protection rating for the requirements of harsh industrial environments
- Correction factor K=1: Constant sensing range on all metals
- Very high switching frequency
- Vibration and shock resistant
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 1.5 |
| Housing | Threaded type |
| Dimensions [mm] | M8 x 1 / L = 60 |
Application
| System | gold-plated contacts; correction factor = 1; Magnetic-field immune |
|---|---|
| Magnetic-field immune | yes |
| Max. electromagnetic field immunity [mT] | 300 |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 1.5 |
|---|---|
| Real sensing range Sr [mm] | 1.5 ± 10 % |
| Operating distance [mm] | 0...1.2 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 1 / brass: 1 / aluminum: 1 / copper: 1 |
|---|---|
| Hysteresis [% of Sr] | 1...20 |
| Switch-point drift [% of Sr] | -10...10 |
| Correction factor = 1 | yes |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 65; IP 67; (with ifm socket duly screwed on) |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 544 | ||||||||||
| Embedded software included | yes |
Mechanical data
| Weight [g] | 22 |
|---|---|
| Housing | Threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M8 x 1 / L = 60 |
| Thread designation | M8 x 1 |
| Material | housing: stainless steel (1.4404 / 316L); sensing face: LCP; lock nuts: brass |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M8; coding: A; Locking: snap-fit ; Contacts: gold-plated |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — IE5390-02 — 17.07.2017 —
IE5390 –
IEK31,5-BPKG/V4A/K1/AS
Electrical connection - plug
Connector: 1 x M8; coding: A; Locking: snap-fit ; Contacts: gold-plated
