IE5338

Inductive sensor

IEBC003BASKG/AS

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Particularly short housing
  • For use where space is restricted
  • Clearly visible indication of the switching status
  • Long sensing range for high uptime
  • Reduced stock-keeping due to operation as three-wire or two-wire unit
  • ce
  • eac
  • cul
Download
Technische Details
Product characteristics
Electrical design PNP/NPN
Output function normally open
Sensing range [mm] 3
Housing Threaded type

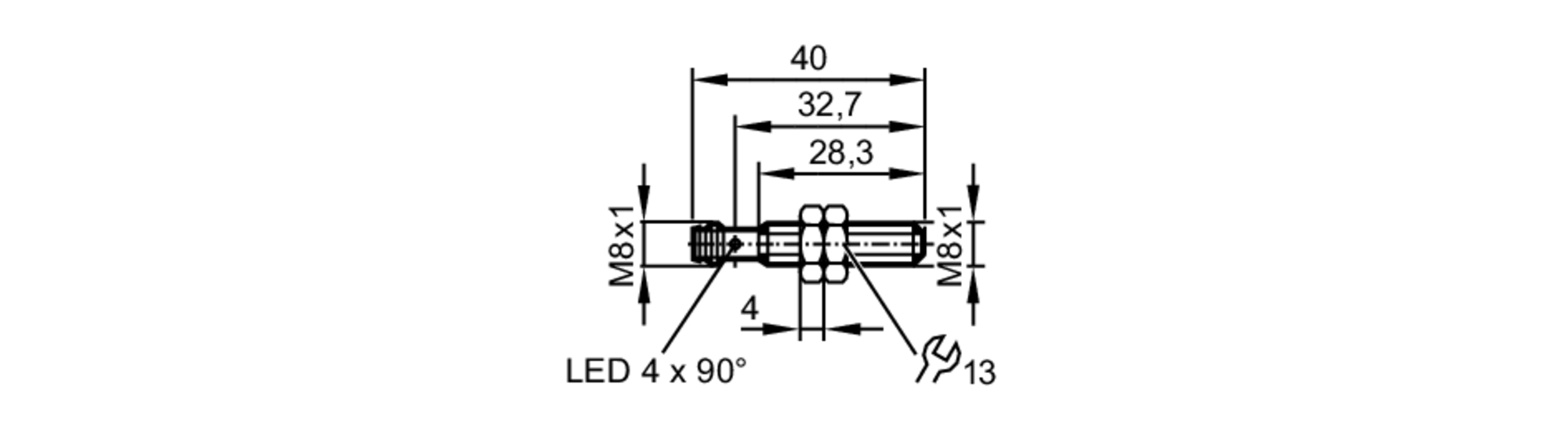

Dimensions [mm] M8 x 1 / L = 40
Electrical data
Operating voltage [V] 10...30 DC; (to PELV)
Current consumption [mA] < 15; (only in 3-wire operation)
Protection class III
Reverse polarity protection yes
Outputs
Electrical design PNP/NPN
Output function normally open
Max. voltage drop switching output DC [V] 3.5
Minimum load current [mA] 2; (only in 2-wire operation)
Max. leakage current [mA] 0.5; (only in 2-wire operation)
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 800
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes
Monitoring range
Sensing range [mm] 3
Operating distance [mm] 0...2.4
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
Hysteresis [% of Sr] 1...20
Operating conditions
Ambient temperature [°C] 0...60
Protection IP 65; IP 67; (with ifm socket duly screwed on)
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-5 Surge 0,5 kV line to line, Ri: 2 Ohm
EN 61000-4-6 HF conducted 10 V
EN 55011 class B
EN 60947-5-2
MTTF [years] 2046
UL approval
Ta -25...80 °C
Enclosure type Type 1
voltage supply Class 2
File number UL E174191
Mechanical data
Weight [g] 16.7
Housing Threaded type
Mounting flush mountable
Dimensions [mm] M8 x 1 / L = 40
Thread designation M8 x 1
Material brass special coating; sensing face: LCP orange; lock nuts: brass
Tightening torque [Nm] A = 5 mm: ≤ 1 Nm; B: ≤ 2 Nm
Displays / operating elements
Display
Switching status 4 x 90° LED, yellow
Accessories
Accessories (supplied)
lock nuts: 2
Remarks
Pack quantity 1 pcs.
Electrical connection - plug
Connector: 1 x M8
Diagrams and graphs
Installation
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — IE5338-01 — 28.01.2013 —
