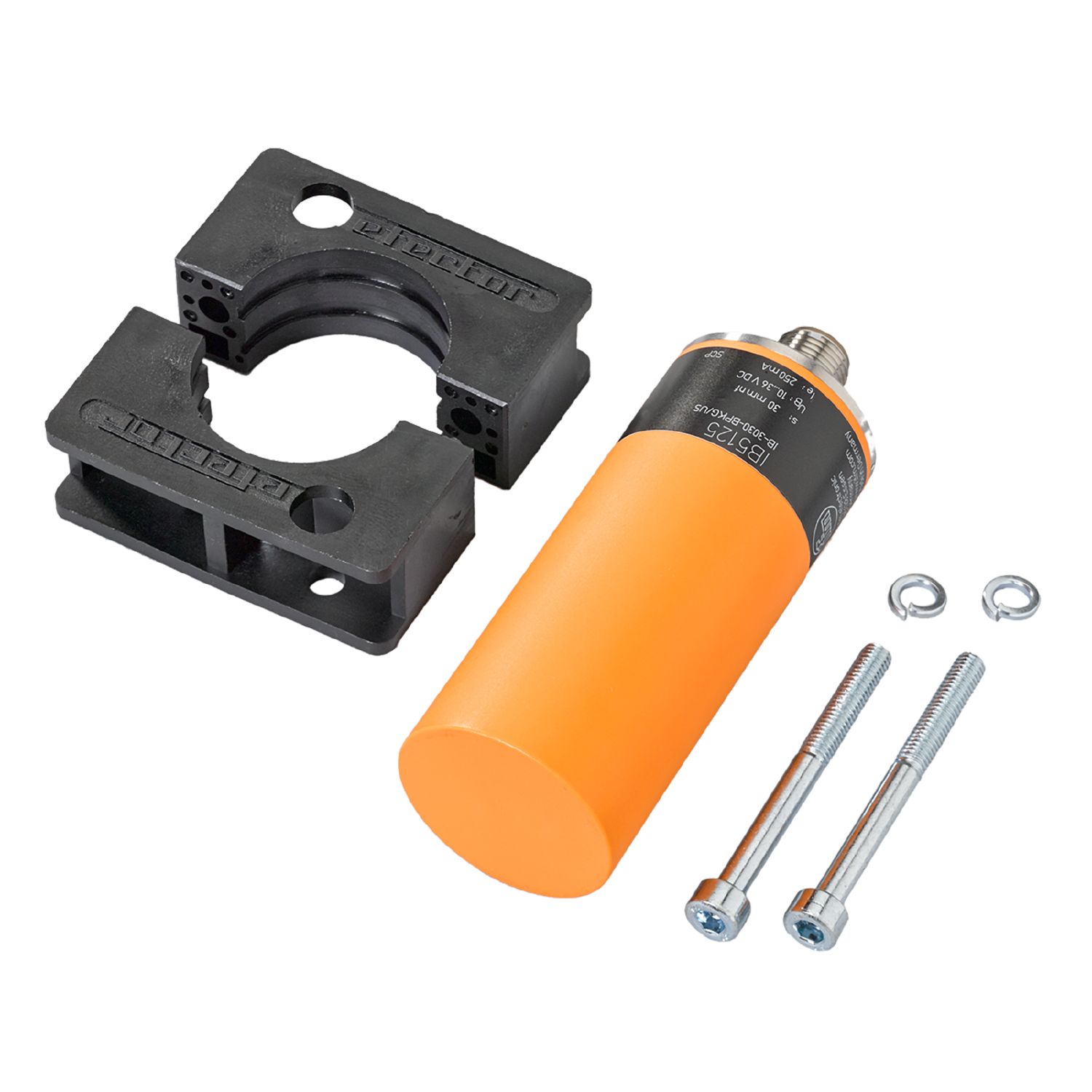

Inductive sensor
IB5125
IB-3030-BPKG/US-104-DPS
Inductive sensor
IB5125
IB-3030-BPKG/US-104-DPS
- Very long sensing range
- Smooth plastic housing to protect against deposits
- PBT housing resistant against wide range of chemicals
- For applications with aggressive media
- With robust M12 connector
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 30 |
| Housing | tubular |
| Dimensions [mm] | Ø 34 / L = 95 |
Application
| System | gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 350 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 30 |
|---|---|
| Real sensing range Sr [mm] | 30 ± 10 % |
| Operating distance [mm] | 0...24.3 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
| Switch-point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 1789 |
Mechanical data
| Weight [g] | 246.5 |
|---|---|
| Housing | tubular |
| Mounting | non-flush mountable |
| Dimensions [mm] | Ø 34 / L = 95 |
| Material | housing: PBT; sensing face: PBT orange; clamp: PBT black |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Locking: brass, white bronze coated; Contacts: gold-plated |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — IB5125-00 — 13.04.2023 —
IB5125 –
IB-3030-BPKG/US-104-DPS
Electrical connection - plug
Connector: 1 x M12; coding: A; Locking: brass, white bronze coated; Contacts: gold-plated
