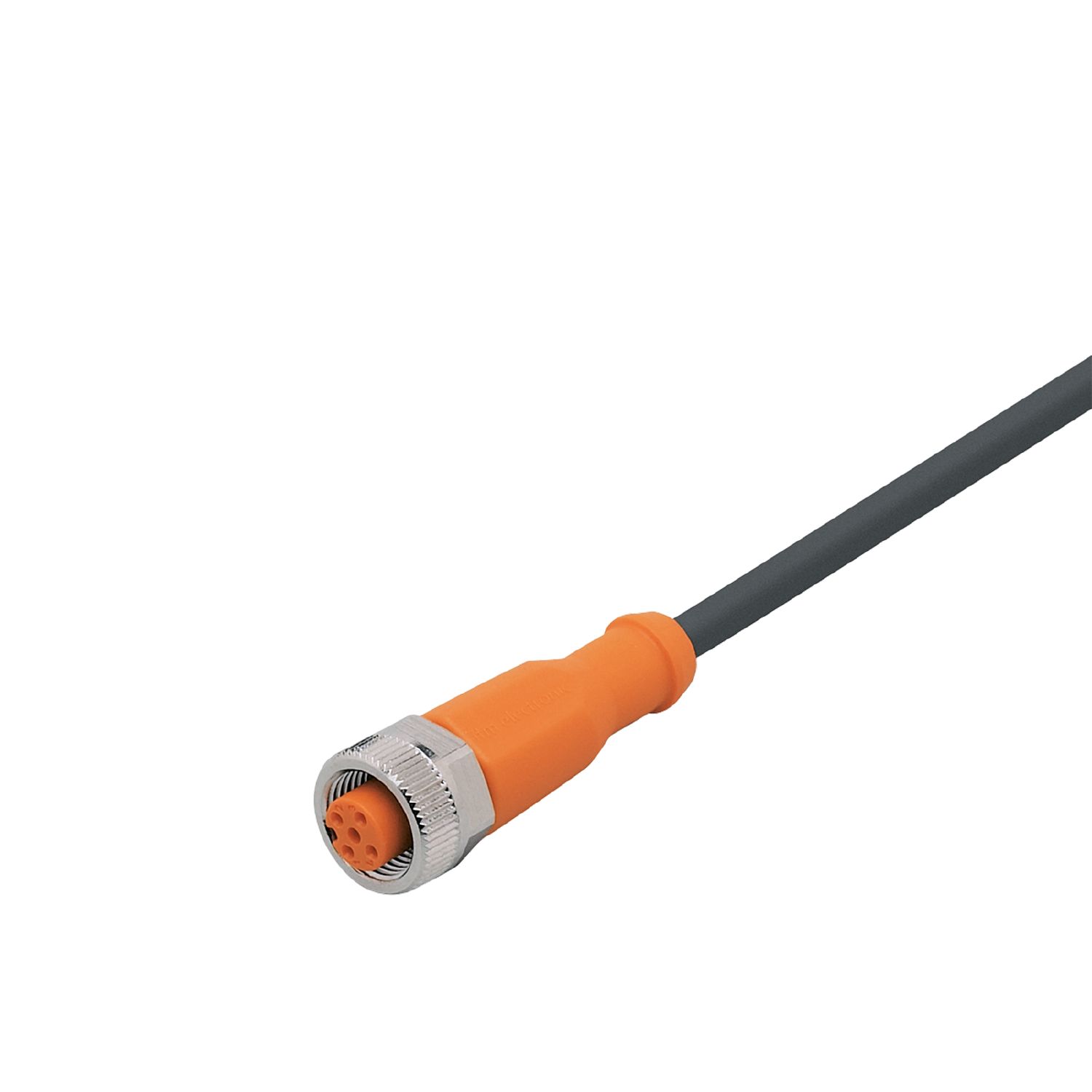

Female cordset
EVC349
ADOGH040MSS0003H04
Female cordset
EVC349
ADOGH040MSS0003H04
- Resistant to oils and coolants
- Permanent, reliable sealing even when mounted without tools
- High protection rating for the requirements of harsh industrial environments
- Vibration and shock resistant thanks to coupling ring with locking mechanism
- Mechanical end stop to protect the O-ring from destruction
Please see the technical note under "Downloads"
{{ifmVariantName}}
| Application | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| System | Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability | ||||||||
| Free from silicone | yes | ||||||||
| Electrical data | |||||||||
| Operating voltage [V] | < 250 AC / < 300 DC | ||||||||
| Protection class | II | ||||||||
| Max. current load total [A] | 4 | ||||||||
| Operating conditions | |||||||||
| Ambient temperature [°C] | -25...90 | ||||||||
| Note on ambient temperature |
|
||||||||
| Ambient temperature (moving) [°C] | -25...90 | ||||||||
| Note on ambient temperature (moving) |
|
||||||||
| Storage temperature [°C] | -25...55 | ||||||||
| Storage humidity [%] | 10...100 | ||||||||
| Other climatic conditions for storage according to stated class |
|
||||||||
| Protection | IP 65; IP 67; IP 68; IP 69K | ||||||||
| Mechanical data | |||||||||
| Weight [g] | 115.7 | ||||||||
| Dimensions [mm] | 15.5 x 15.5 x 45 | ||||||||
| Material | housing: TPU (urethane) orange; sealing: FKM | ||||||||
| Material nut | brass, nickel-plated | ||||||||
| Drag chain suitability | yes | ||||||||
| Drag chain suitability |
|
||||||||
| Remarks | |||||||||
| Notes | Please see the technical note under "Downloads" | ||||||||
| Pack quantity | 1 pcs. | ||||||||
| Electrical connection | |||||||||
| Cable: 3 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) | |||||||||
| Electrical connection - Socket | |||||||||
| Connection | Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm | ||||||||
| Diagrams and graphs | |||||||||
| Characteristic curve for derating |
|
||||||||
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — EVC349-01 — 10.01.2020 —
|
|||||||||
EVC349 –
ADOGH040MSS0003H04
Electrical connection
Cable: 3 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - Socket
Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
Connection
- Core colors :
- BK =
- black
- BN =
- brown
- BU =
- blue
- WH =
- white
