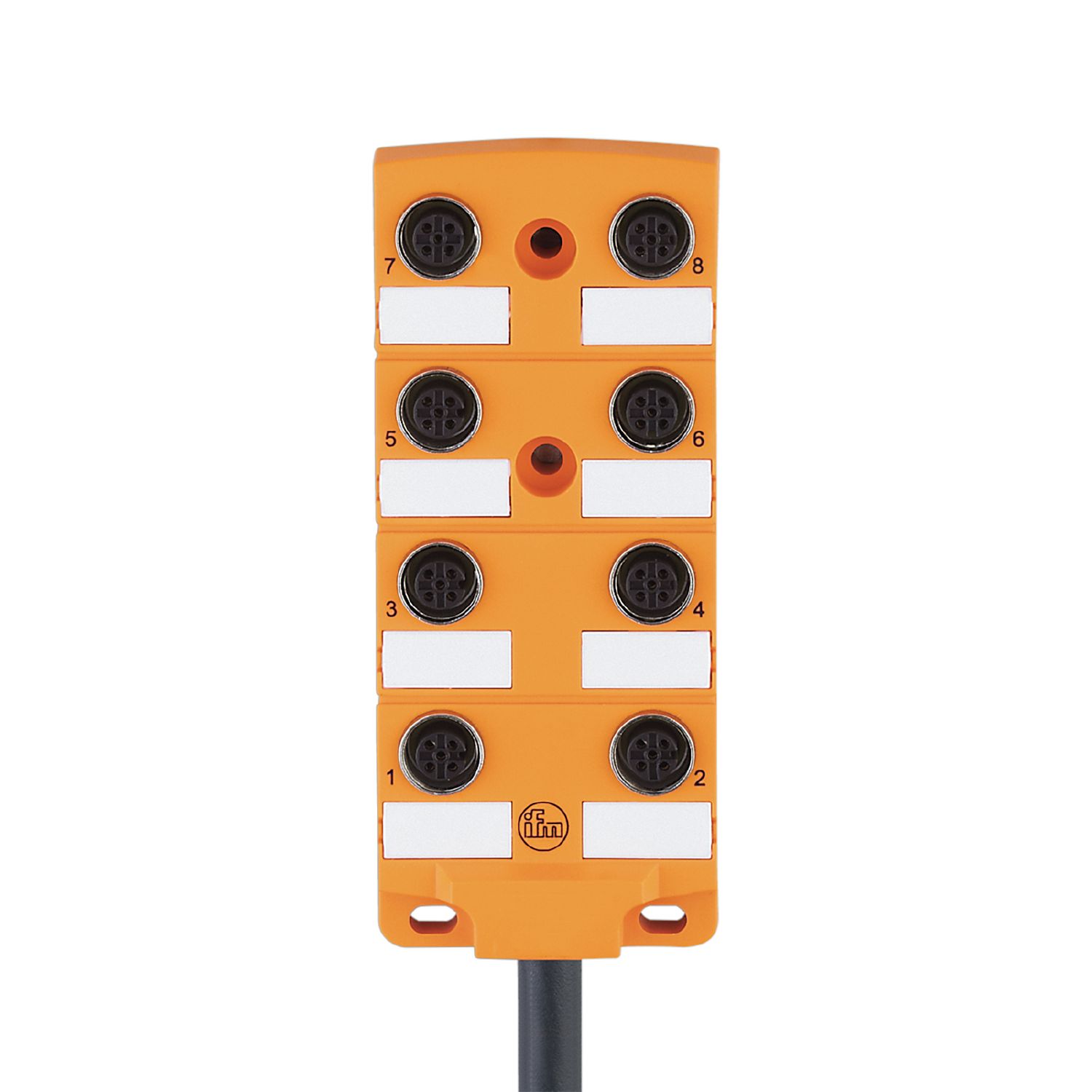

Wiring block

Name: EBC022
Brand: ifm
SKU: EBC022
Price: 243.00 USD

EBC022

ZDO8H050MSS0005H19

Wiring block

EBC022

ZDO8H050MSS0005H19

Resistant to oils and coolants
Permanent, reliable sealing even when mounted without tools
Mechanical end stop to protect the O-ring from destruction
Robust housing for use in harsh industrial environments
High shock and vibration resistance

Application

System	Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability
Free from silicone	yes

Electrical data

Operating voltage [V]	< 30 DC; (cULus - Class 2 source required)
Protection class	II
Max. current load per module/slot [A]	4
Max. current load total [A]	12

Operating conditions

Ambient temperature [°C]	-25...80
Ambient temperature (moving) [°C]	-5...60
Protection	IP 67; IP 68

Tests / approvals

UL approval

Enclosure type

Type 1

Mechanical data

Weight [g]

906.5

Dimensions [mm]

22 x 54 x 127

Material

Molded-body material

Number of ports splitter box

Connector type

M12

Drag chain suitability

yes

Drag chain suitability

Bending radius for flexible applications	min. 10 x cable diameter
Travel speed	max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
Bending cycles	> 2 Mio.
Torsional strain	± 30 °/m

Accessories

Items supplied

Protective caps: 2

labels: 8

Remarks

Pack quantity	1 pcs.

Electrical connection

	Cable: 5 m, PUR, Halogen-free, black, Ø 9.7 mm; 16 x 0.34 mm² (43 x Ø 0.1 mm ) + 3 x 0.75 mm² (95 x Ø 0.1 mm )

Electrical connection - slot

Connection	Connector: 8 x M12; coding: A; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm
