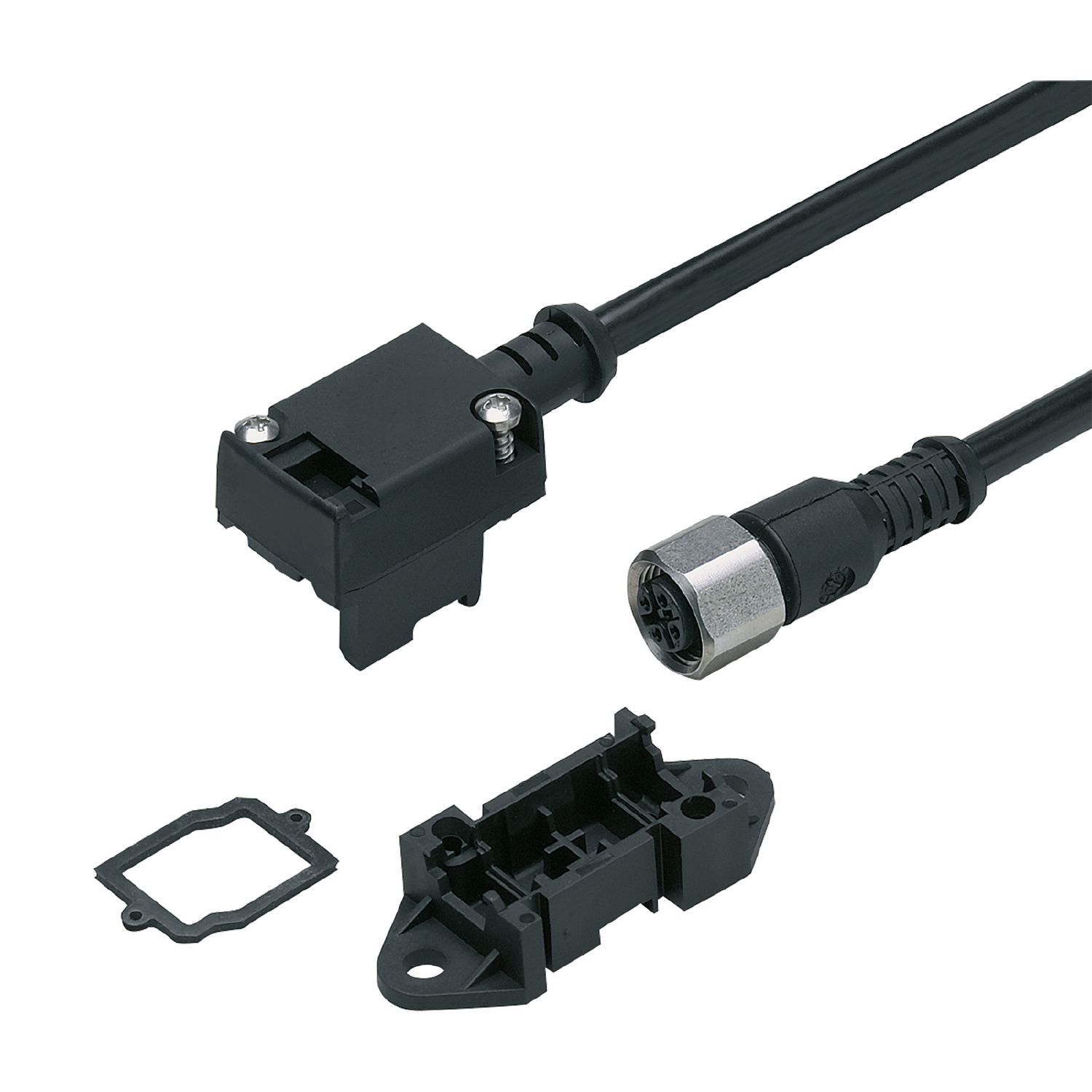

AS-Interface flat cable insulation displacement connector

FC connector, M12, V2A, 1m

E79998

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • For transition from AS-i flat cable to M12 connector
  • For extending the AS-i network
  • Easy and quick connection due to insulation displacement technology
  • High protection rating for the requirements of harsh industrial environments
Download
Technische Details
Electrical data
Operating voltage [V] 26.5...31.6 DC
Operating conditions
Ambient temperature [°C] -20...70
Protection IP 67
Mechanical data
Weight [g] 82.7
Remarks
Remarks
FC insulation displacement connector with round cable and socket (total length 1.2 m)
Pack quantity 1 pcs.
