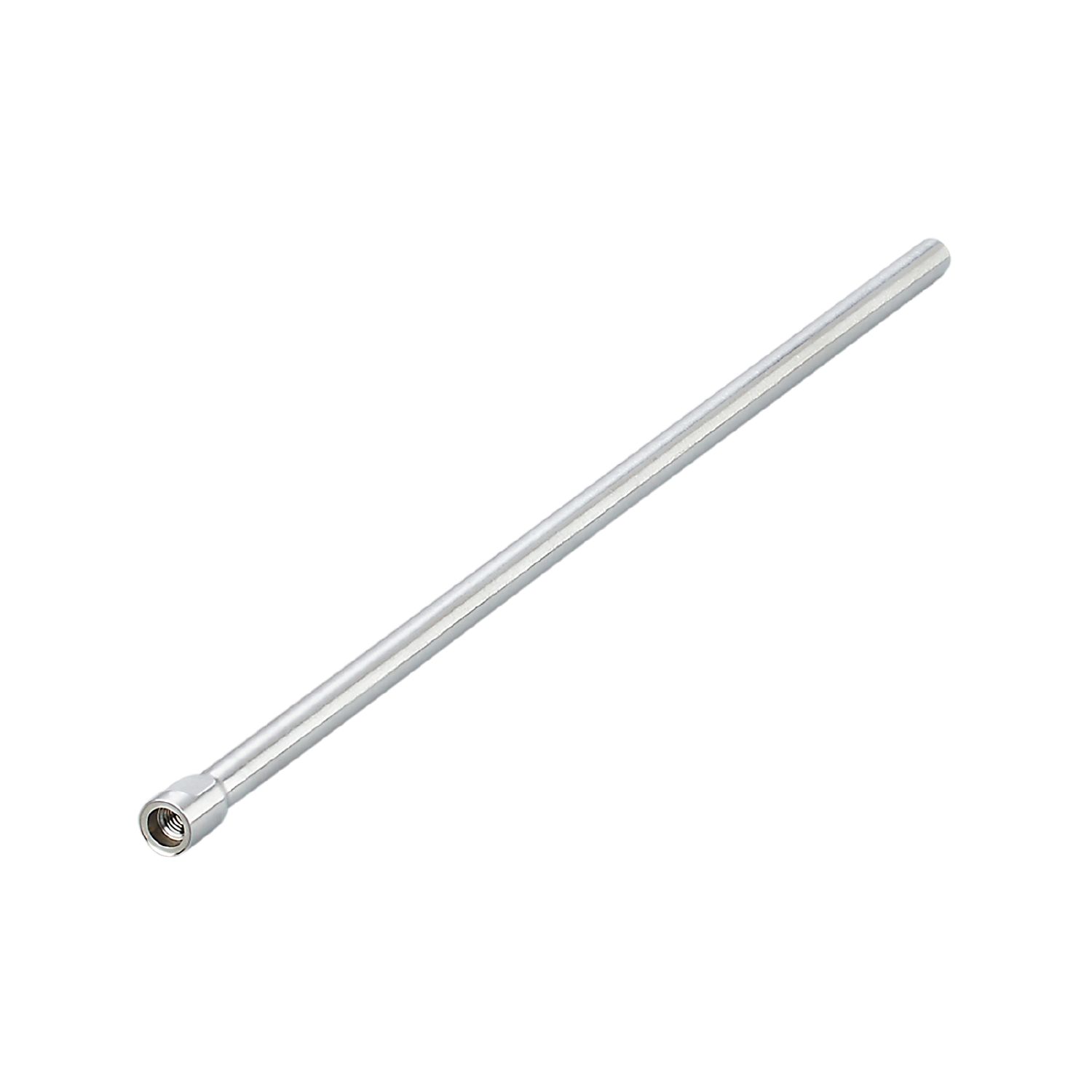

Probe for level sensors
E43341
LR HYGIENE PROBE L1000
Probe for level sensors
E43341
LR HYGIENE PROBE L1000
- Required for the operation of level sensors with guided wave radar
- For the reliable detection of aqueous media
- Probes may be cut to length for application flexibility
- Particularly suited for use in sanitary applications
- Easy, quick and secure mounting
Application
| Design | sanitary, for level sensors LR |
|---|---|
| Application | hygienic systems |
Measuring/setting range
| Probe length L [mm] | 1000 |
|---|
Mechanical data
| Weight [g] | 435 |
|---|---|
| Material | stainless steel (1.4404 / 316L) |
| Tightening torque [Nm] | < 6.5 |
| Surface characteristics Ra/Rz of the wetted parts | < 0.8 / 8 |
| Hygienic equipment class to DIN 11866 | H3 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E43341-00 — 25.03.2015 —
