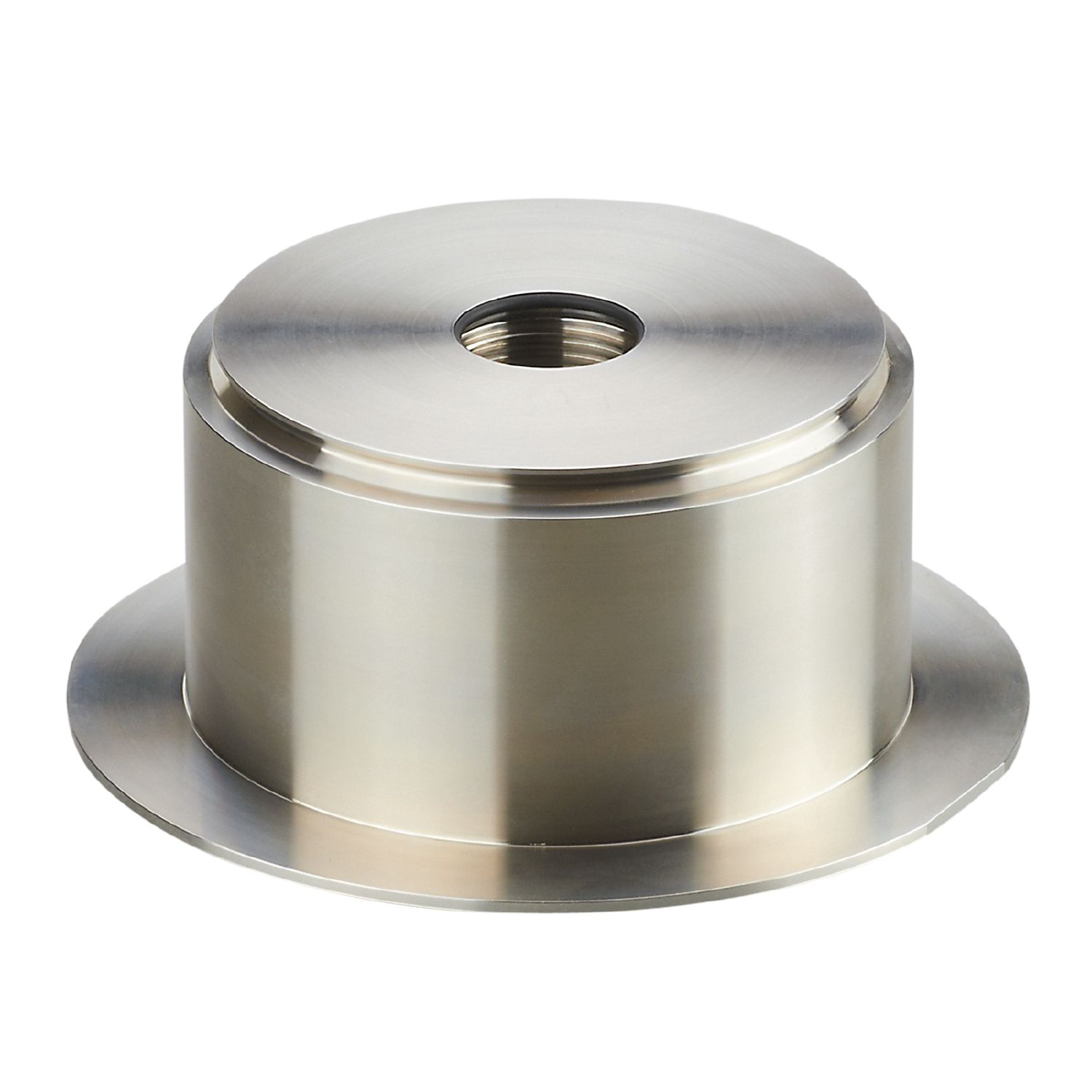

Mounting adapter for process sensors
E33434
ADAPT IFM-TANK SPUD AV
Mounting adapter for process sensors
E33434
ADAPT IFM-TANK SPUD AV
- For installing process sensors in tanks
- Easy, quick and secure mounting
- Particularly suited for use in sanitary applications
- Stainless steel adapter for the requirements of the food and beverage industry
- High pressure resistance
Application
| Design | accessories for, PY200x, PM17xx, PI27xx, PG27xx, : Rosemount 1199 (SSW) Tank Spud Seal |
|---|---|
| Pressure rating [bar] | 34 |
Tests / approvals
| Pressure equipment directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 1602 |
|---|---|
| Materials (wetted parts) | stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4; O-rings: EPDM |
| Sensor connection | G 1 Aseptoflex Vario |
| Process connection | Tank Spud Rosemount 1199 (SSW) Tank Spud Seal |
| Sealing | Gasket |
| Hygienic equipment class to DIN 11866 | H4 |
Accessories
| Items supplied |
|
||
|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E33434-00 — 12.08.2019 —
E33434 –
ADAPT IFM-TANK SPUD AV
- 1
- Aseptoflex Vario
- 2
- Leakage port
- 3
- sealing area
