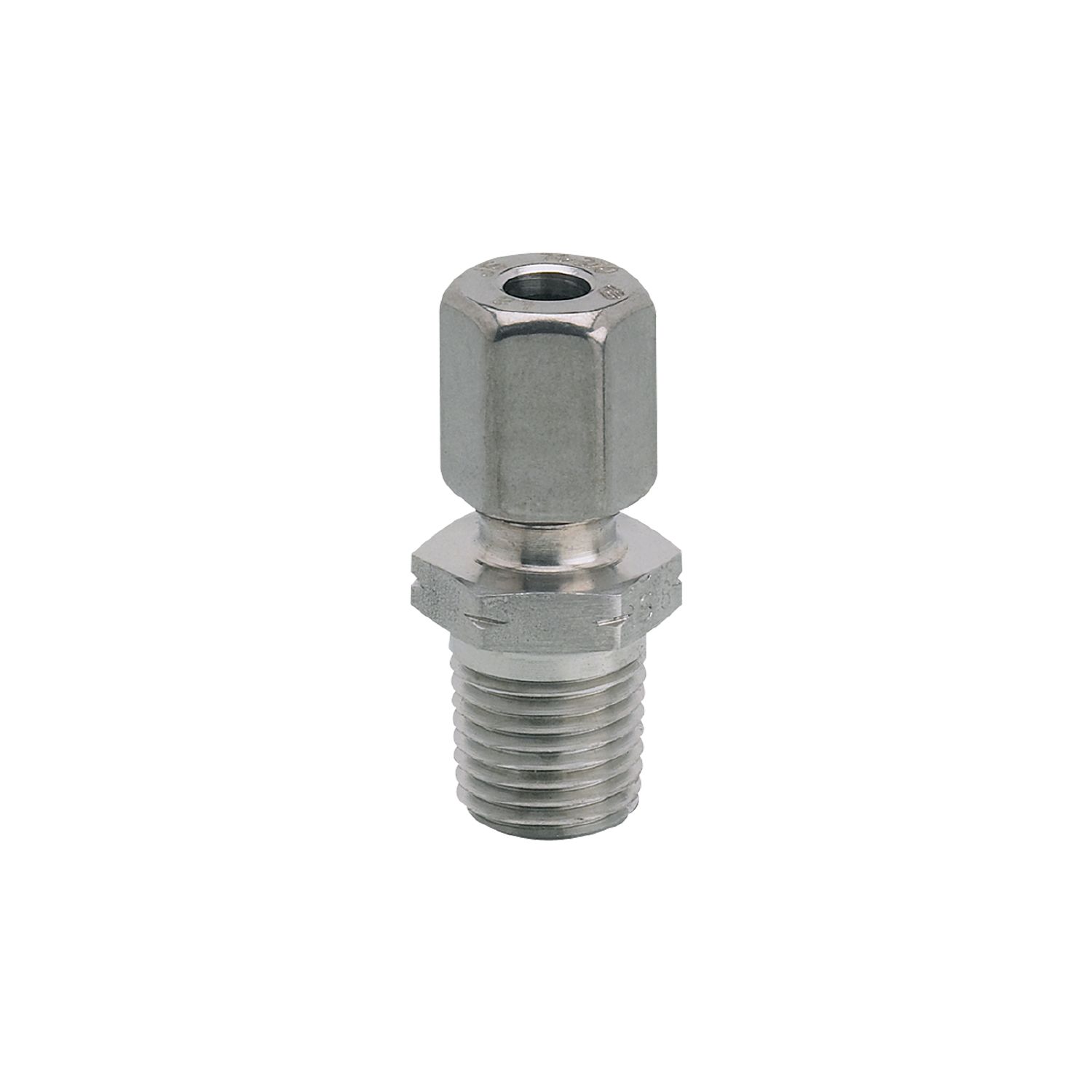

Progressive ring fitting
E30049
PROGRESSIVE RG FITTING D6 NPT
Progressive ring fitting
E30049
PROGRESSIVE RG FITTING D6 NPT
- Quick and easy mounting of temperature sensors
- User-friendly setting of the requested immersion depth of the sensor
- Robust design for use in harsh industrial environments
- High pressure resistance
Application
| Installation | Progressive ring fitting |
|---|---|
| Pressure rating [bar] | 50 |
Tests / approvals
| Pressure equipment directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 42.5 |
|---|---|
| Material | stainless steel (1.4571/316Ti ) |
| Sensor connection | Ø 6 mm |
| Process connection | threaded connection 1/4" NPT |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E30049-00 — 06.03.2003 —
