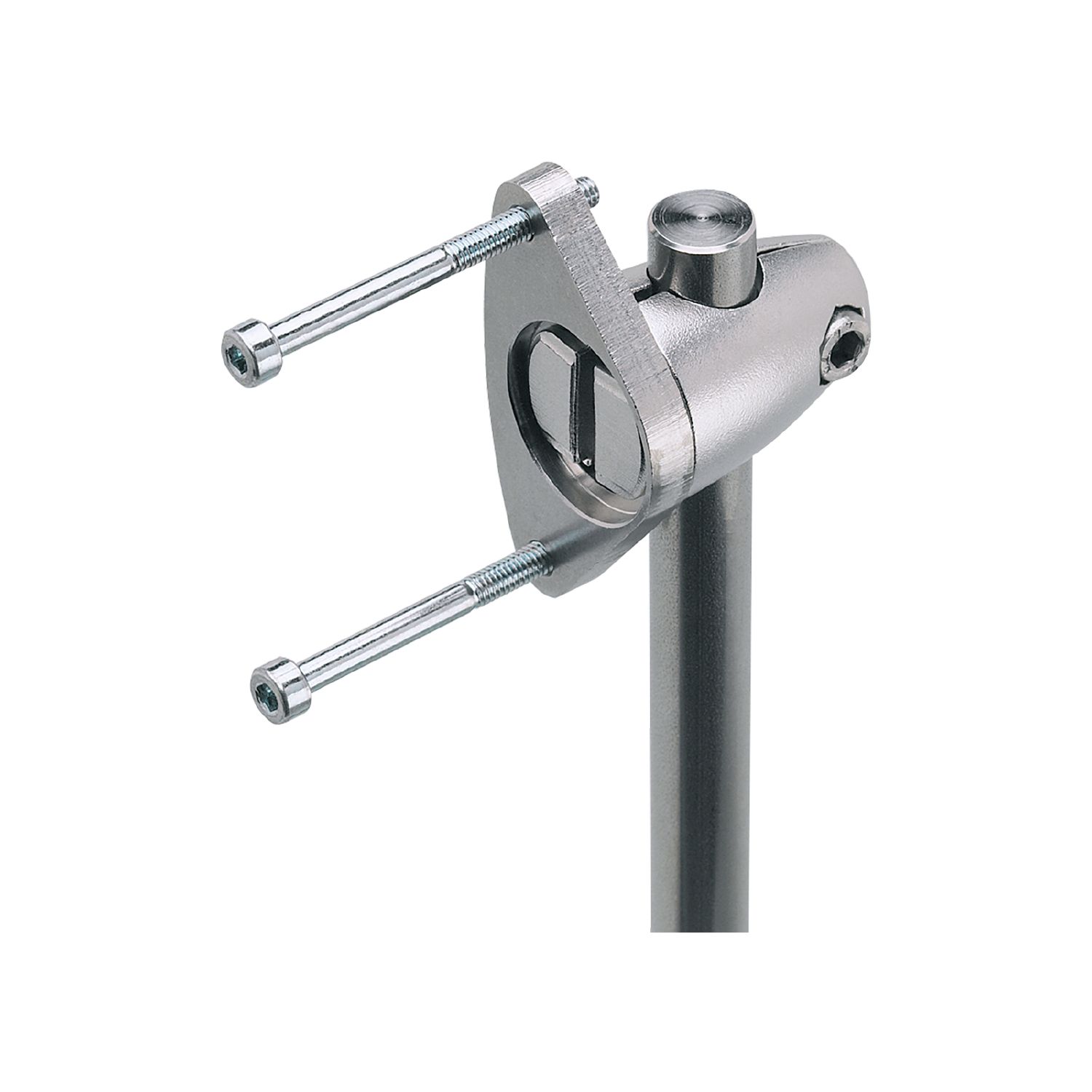

Mounting set for vision sensors

MOUNTING SET VISION SENSOR

E2D112

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Complete mounting set for clamp mounting
  • Easy, quick and inexpensive fixing
  • Robust design for use in harsh industrial environments
  • For mounting to a mounting rod
  • Each sensor position possible due to free movement in all directions
Download
Technische Details
Application
Design Clamp mounting
Mechanical data
Weight [g] 120.5
Type of mounting Mounting rod; (Ø 14 mm)
Material fixture: stainless steel (1.4301 / 304); Clamp: stainless steel (1.4408)
Remarks
Pack quantity 1 pcs.
