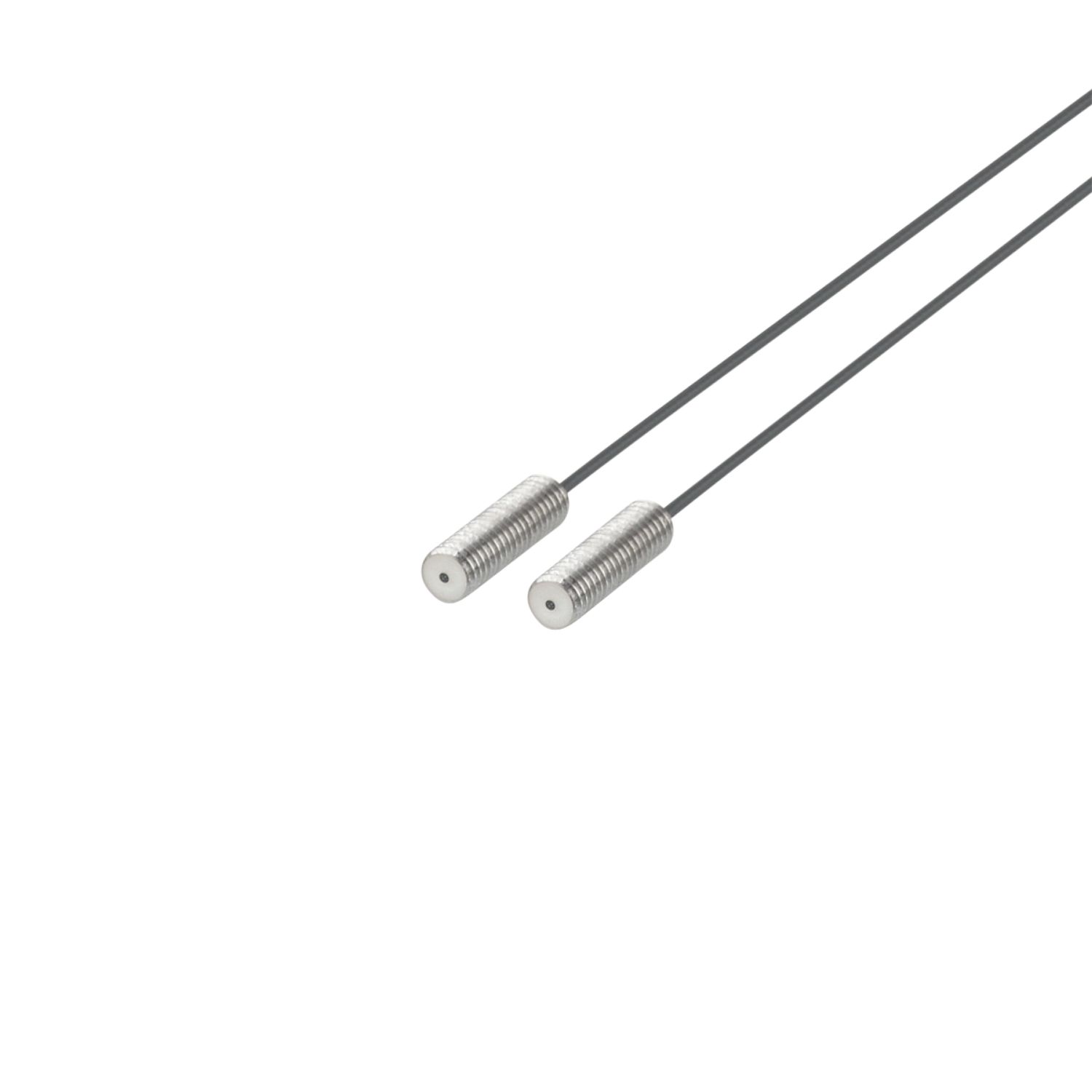

Fiber optic through beam sensor
E21323
FE-11-EPA-M4/F0,5x1/2m
Fiber optic through beam sensor
E21323
FE-11-EPA-M4/F0,5x1/2m
- For installation with limited mounting space
- Operation as through-beam sensor
- For cutting to size
- Life expectancy of more than 1 million bending cycles
Application
| Function principle | Through-beam sensor |
|---|---|
| Application | Bending-resistant design for applications in robotics; For use in industrial environments |
Monitoring range
| Range with fiber optic amplifier type | OBF; OO50; OCF |
|---|
| Range of fiber optics [mm] | 56 |
|---|
| Range of fiber optics [mm] | 120 |
|---|
| Range of fiber optics [mm] | 550 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|
Mechanical data
| Weight [g] | 33.6 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M4 |
| Total length [mm] | 2000 |
| Min. bending radius [mm] | 2 |
| Fiber arrangement |
|
| Core diameter [mm] | 4 x 0.25 |
| Fiber material | PMMA |
| Fiber head material | stainless steel (1.4305 / 303) |
| Fiber sheath material | PE |
Accessories
| Items supplied |
|
||
|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
