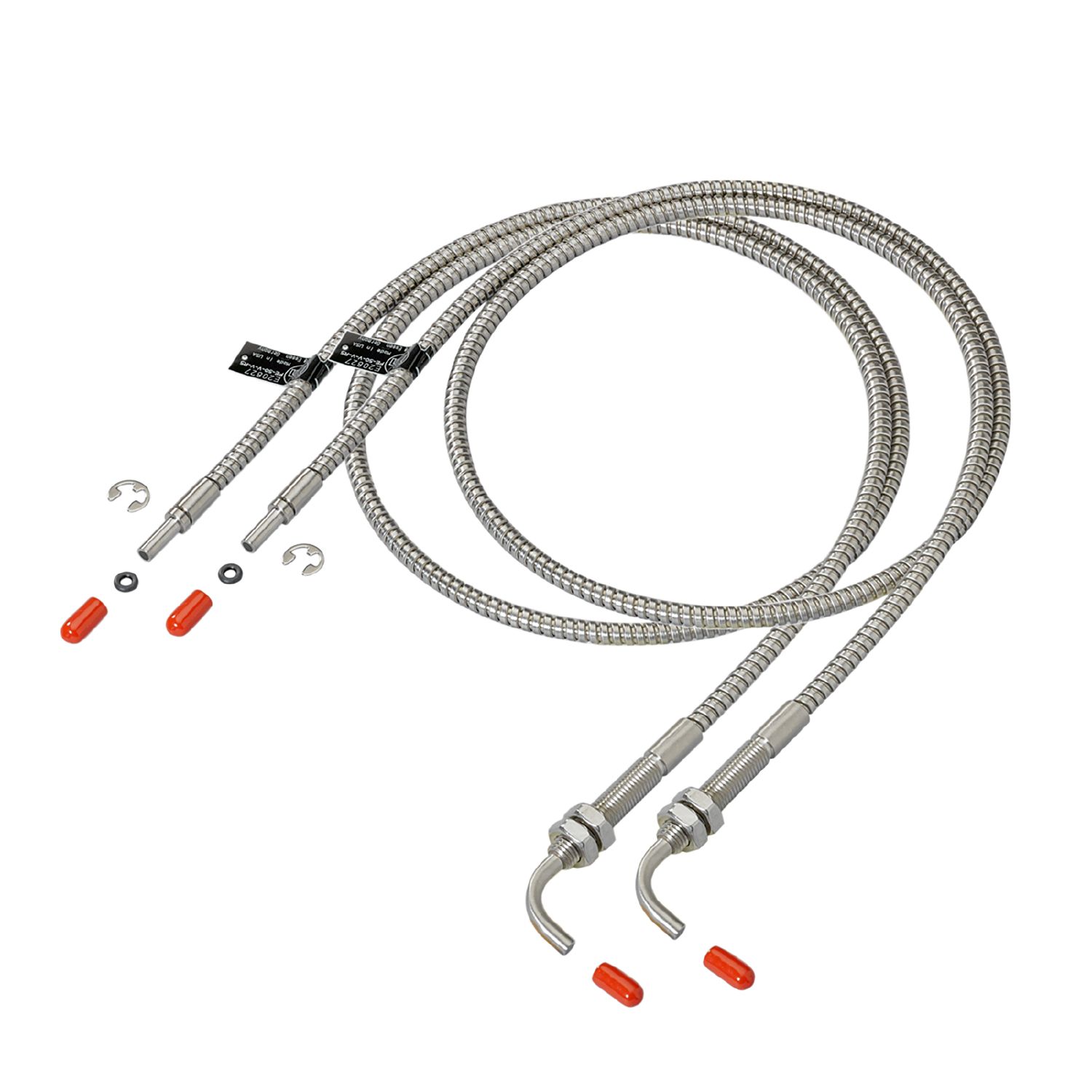

Fiber optic through beam sensor
E20827
FE-50-V-V-R5
Fiber optic through beam sensor
E20827
FE-50-V-V-R5
- For applications in high-temperature areas
- Stainless steel sheathing for use up to 315 °C
- Angled type for use where space is restricted
- Long range
- Small bending radius
Application
| Function principle | Through-beam sensor |
|---|
Monitoring range
| Range with fiber optic amplifier type | OBF; ODF; OMF |
|---|
| Range of fiber optics [mm] | 1000 |
|---|
| Range of fiber optics [mm] | 4 |
|---|
| Range of fiber optics [mm] | 800 |
|---|
Operating conditions
| Ambient temperature [°C] | -58...315 |
|---|
Mechanical data
| Weight [g] | 196 |
|---|---|
| Version of sensing head | angled |
| Sensing head diameter [mm] | 5 |
| Total length [mm] | 900 |
| Min. bending radius [mm] | 19 |
| Fiber arrangement |
|
| Fiber material | glass |
| Fiber head material | stainless steel (1.4305 / 303) |
| Fiber sheath material | stainless steel (1.4305 / 303) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E20827-00 — 29.11.2006 —
