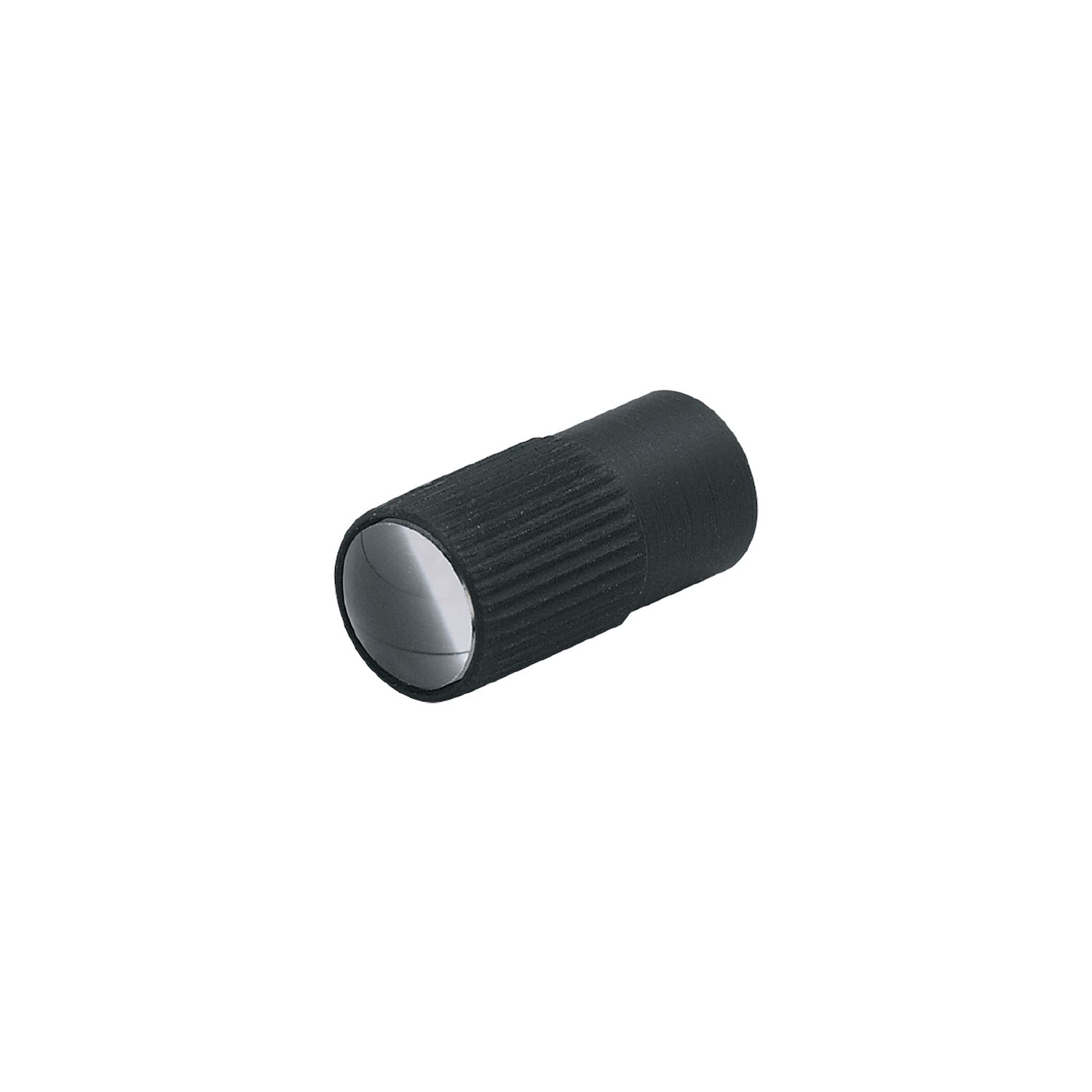

Lens attachment for fiber optics
E20680
LENS ATTACHMENT M4
Lens attachment for fiber optics
E20680
LENS ATTACHMENT M4
- Focusing of transmitted and received light
- Enlargement of the signal range
Application
| Design | for through-beam fiber optics |
|---|
Operating conditions
| Ambient temperature [°C] | -40...230 |
|---|
Mechanical data
| Weight [g] | 2.12 |
|---|---|
| Dimensions [mm] | M4 / L = 12 |
| Thread designation | M4 |
| Material | aluminum black anodized; glass |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E20680-00 — 19.10.2010 —
