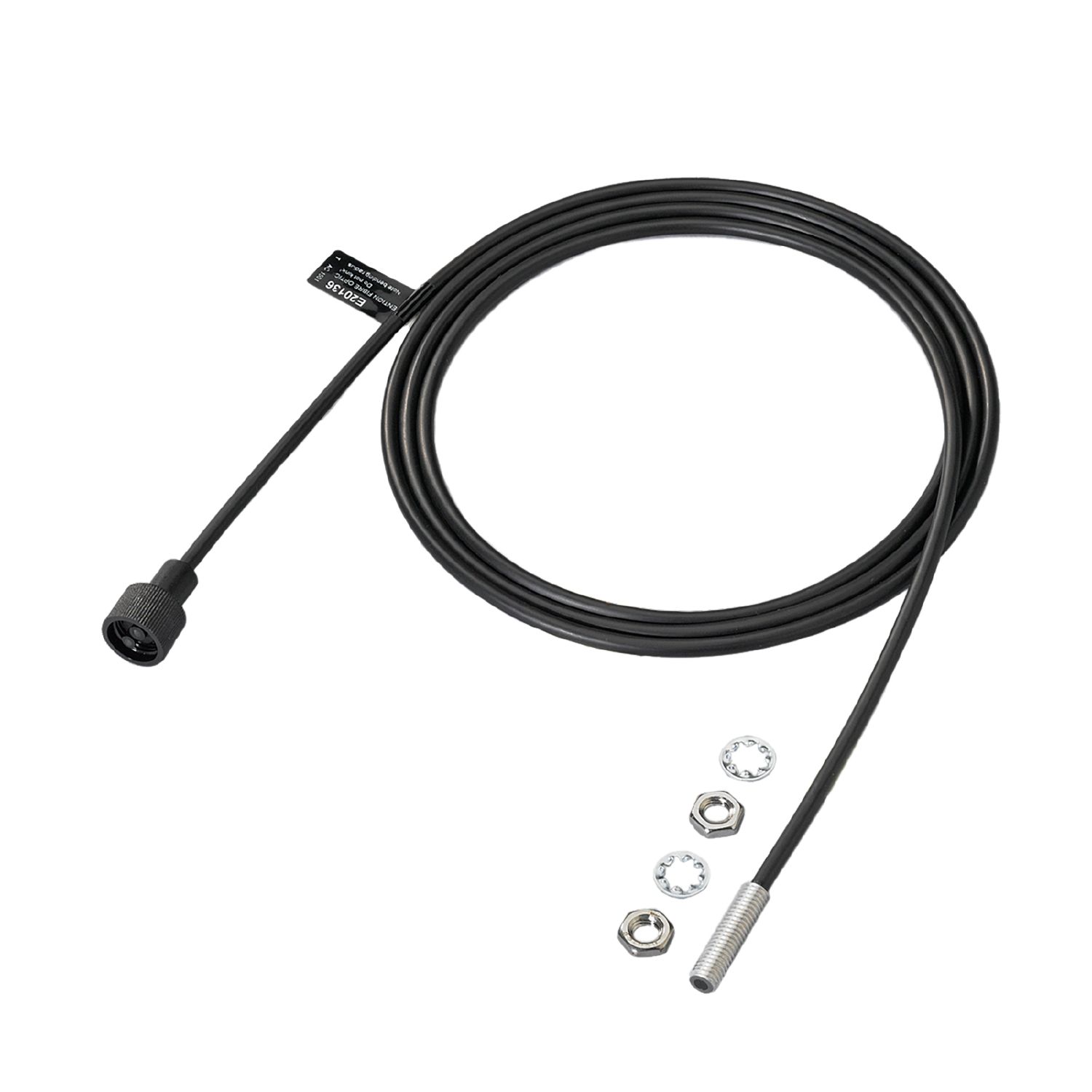

Fiber optic diffuse reflection sensor
E20136
FT-00-P-A-M6/1,5M
Fiber optic diffuse reflection sensor
E20136
FT-00-P-A-M6/1,5M
- For installation with limited mounting space
- Operation as diffuse reflection sensor
- For use at short range
- Resistant to various aggressive chemicals
- Small bending radius
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | For use in industrial environments |
Monitoring range
| Range with fiber optic amplifier type | OKF; OUF; OOF |
|---|
| Range fiber optics [mm] | 36 |
|---|
| Range fiber optics [mm] | 180 |
|---|
| Range fiber optics [mm] | 36 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|
Mechanical data
| Weight [g] | 60.5 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M6 |
| Sensing head length [mm] | 25 |
| Total length [mm] | 1500 |
| Min. bending radius [mm] | 20 |
| Fiber arrangement |
|
| Material | Adapter: PPE |
| Fiber material | glass |
| Fiber head material | aluminum |
| Fiber sheath material | PVC |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
