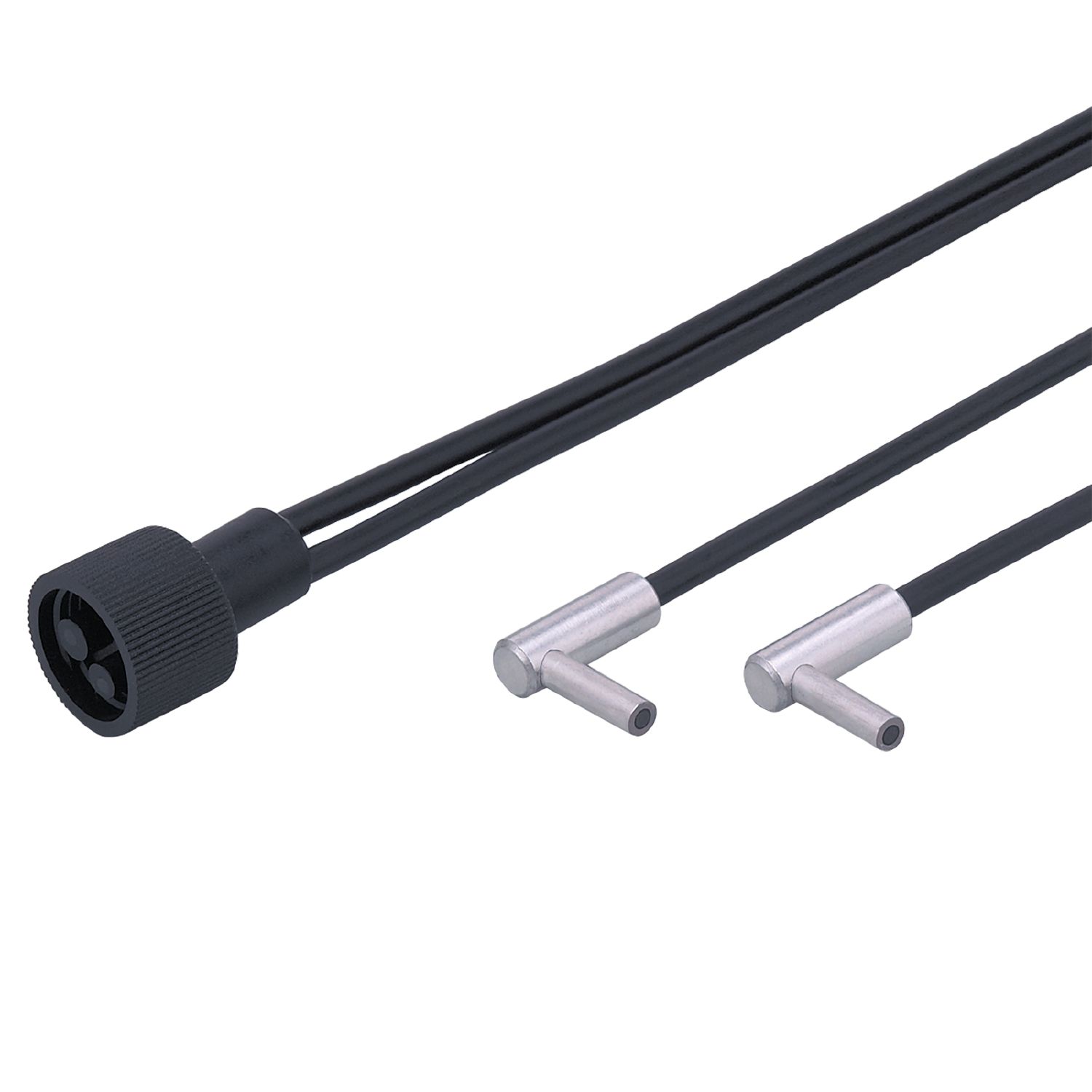

Fiber optic through beam sensor
E20062
FE-00-P-A-R3
Fiber optic through beam sensor
E20062
FE-00-P-A-R3
- For installation with limited mounting space
- Operation as through-beam sensor
- Long range
- Angled type for use where space is restricted
- Very small bending radius
Application
| Function principle | Through-beam sensor |
|---|---|
| Application | Small bending radius |
Monitoring range
| Range with fiber optic amplifier type | OKF; OUF; OOF |
|---|
| Range of fiber optics [mm] | 120 |
|---|
| Range of fiber optics [mm] | 400 |
|---|
| Range of fiber optics [mm] | 120 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|
Mechanical data
| Weight [g] | 56 |
|---|---|
| Version of sensing head | angled |
| Sensing head diameter [mm] | 3 |
| Sensing head length [mm] | 10 |
| Total length [mm] | 600 |
| Min. bending radius [mm] | 10 |
| Fiber arrangement |
|
| Material | Adapter: PPE |
| Fiber material | glass |
| Fiber head material | aluminum |
| Fiber sheath material | PVC |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E20062-00 — 04.06.2003 —
