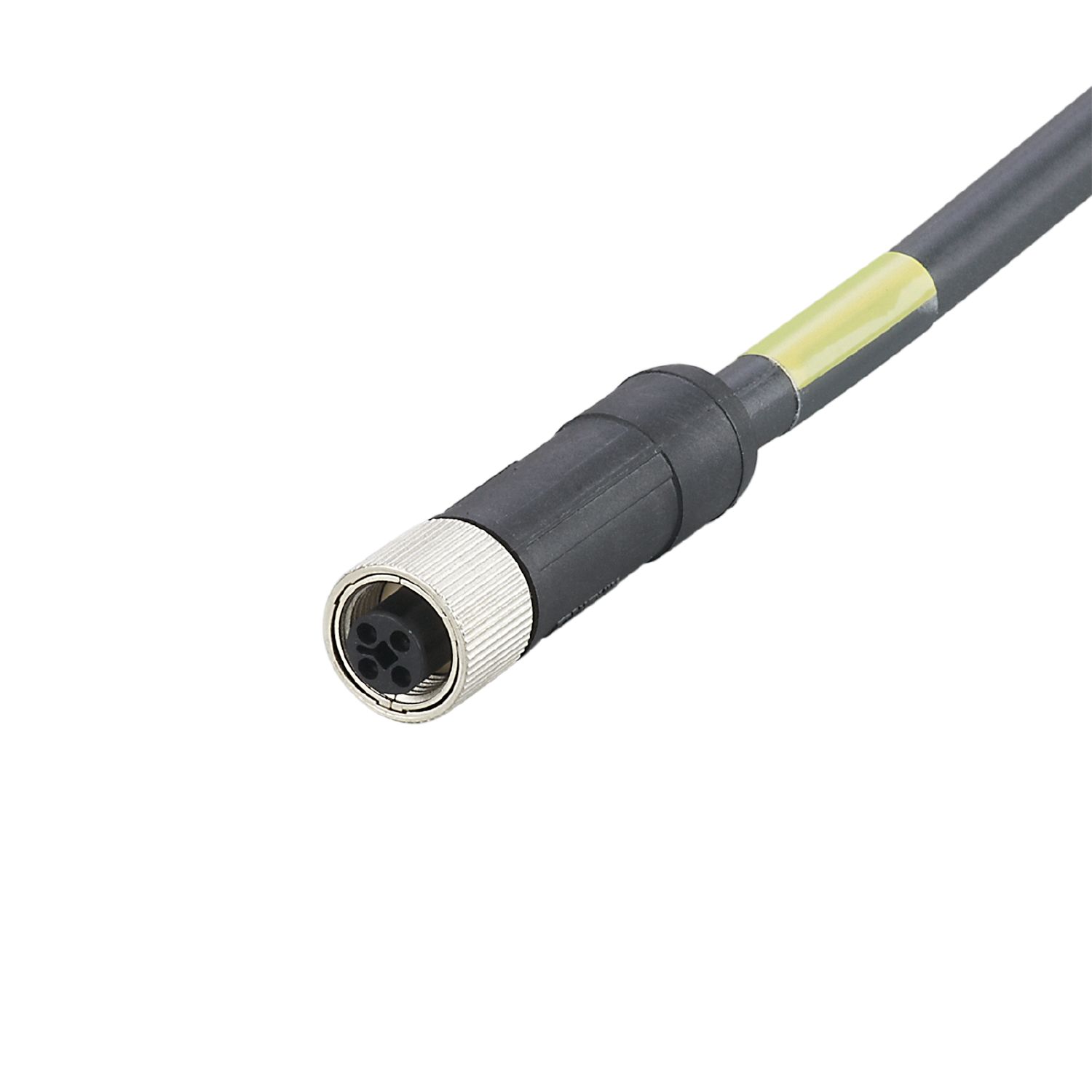

Female cordset
E18516
ADOGH040ZDS0020H04
Female cordset
E18516
ADOGH040ZDS0020H04
Application
| System | gold-plated contacts |
|---|---|
| Design | Power cable, T-coded |
Electrical data
| Operating voltage [V] | < 60 AC |
|---|---|
| Max. current load total [A] | 12 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 2081.08 |
|---|---|
| Dimensions [mm] | 15.4 x 15.4 x 52.8 |
| Material | TPU (urethane) |
| Molded-body material | TPU (urethane) |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 20 m, PUR, black, Ø 8 mm; 4 x 1.5 mm² |
Electrical connection - Socket
| Connection | Connector: 1 x M12, straight; coding: T; Moulded body: TPU (urethane); Locking: diecast zinc, nickel-plated; Contacts: gold-plated |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E18516-01 — 19.04.2017 —
E18516 –
ADOGH040ZDS0020H04
Electrical connection
Cable: 20 m, PUR, black, Ø 8 mm; 4 x 1.5 mm²
Electrical connection - Socket
Connector: 1 x M12, straight; coding: T; Moulded body: TPU (urethane); Locking: diecast zinc, nickel-plated; Contacts: gold-plated
Connection
- Core colors :
- BK =
- black
- BN =
- brown
- BU =
- blue
- WH =
- white
