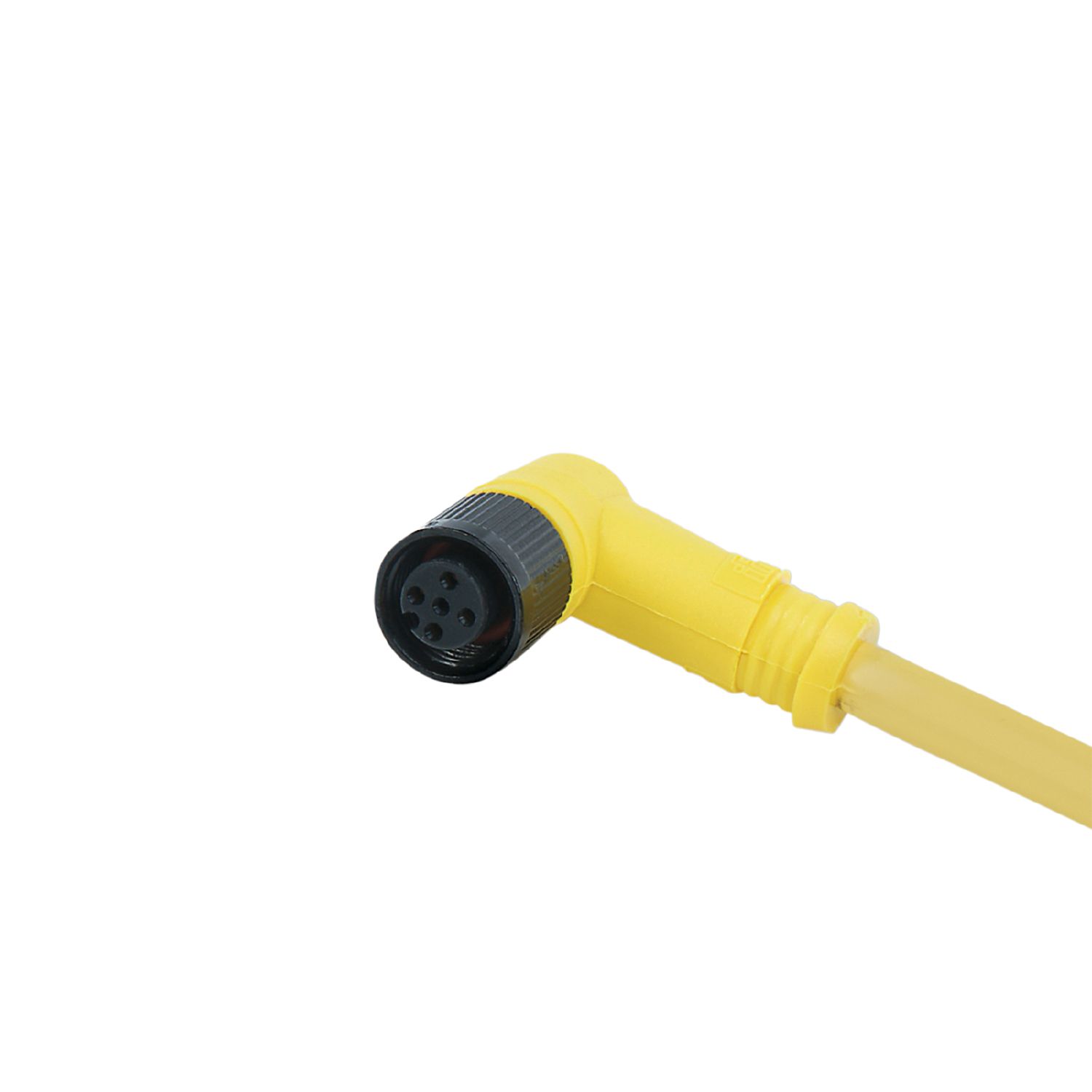

Female cordset
E18407
ADOAH040MSC0010X04
Female cordset
E18407
ADOAH040MSC0010X04
- Angled type for use where space is restricted
- Gold-plated contacts for reliable electrical connections
- Resistant to oils and coolants
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
Application
| System | gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | < 300 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -45...105 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 771.106 |
|---|---|
| Material | TPE |
| Molded-body material | TPE |
| Material nut | zinc, PTFE coated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 10 m, yellow; 4 x 0.75 mm² / AWG 18 |
Electrical connection - Socket
| Connection | Connector: 1 x M12, angled; coding: A; Moulded body: TPE; Locking: zinc, PTFE coated; Contacts: gold-plated |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E18407-00 — 13.01.2017 —
E18407 –
ADOAH040MSC0010X04
Electrical connection
Cable: 10 m, yellow; 4 x 0.75 mm² / AWG 18
Electrical connection - Socket
Connector: 1 x M12, angled; coding: A; Moulded body: TPE; Locking: zinc, PTFE coated; Contacts: gold-plated
Connection
- Core colors :
- BK =
- black
- BN =
- brown
- BU =
- blue
- WH =
- white
