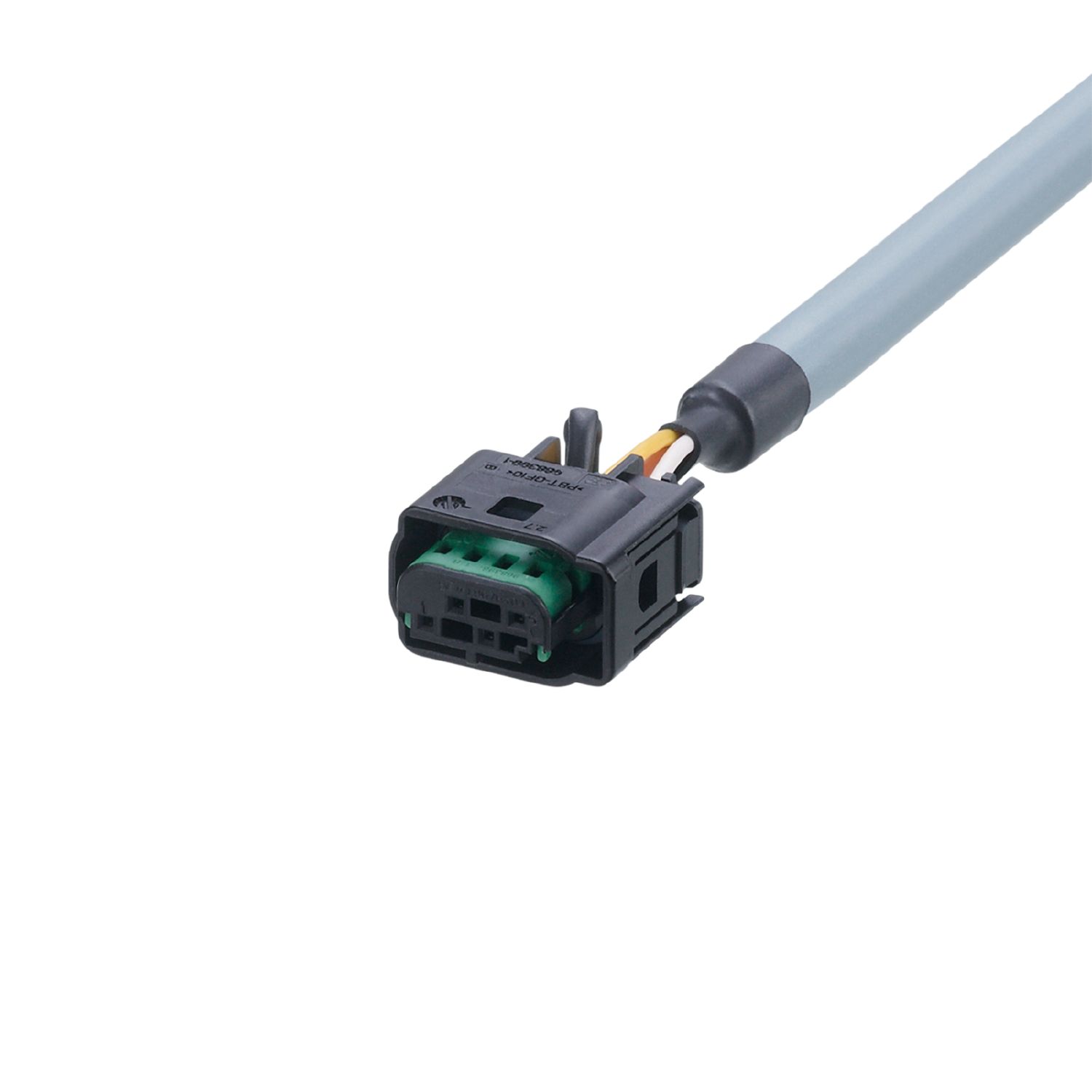

Connecting cordset with AMP connector
E12736
ecomatPanel/Cable/5m
Connecting cordset with AMP connector
E12736
ecomatPanel/Cable/5m
Application
| System | screened cable |
|---|
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -40...80 |
|---|---|
| Protection | IP 20; (without resistor) |
Mechanical data
| Weight [g] | 456.4 |
|---|---|
| Dimensions [mm] | 89.5 x 33.4 x 47.3 |
| Material | housing: PBT-GF20 |
| Molded-body material | PBT |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 5 m, PUR, grey, Ø 8.3 mm, screened; 2 x 0.5 mm² (twisted pairs ) + 2 x 0.5 mm² (twisted pairs ) |
|---|---|
| Connection | Connector: AMP MQS, straight; Moulded body: PBT; Contacts: tin-plated |
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E12736-00 — 05.10.2020 —
E12736 –
ecomatPanel/Cable/5m
Electrical connection
Cable: 5 m, PUR, grey, Ø 8.3 mm, screened; 2 x 0.5 mm² (twisted pairs ) + 2 x 0.5 mm² (twisted pairs )
- 1
- CAN_L
- 2
- CAN_H
- 3
- GND
- 4
- Vbb
Connector: AMP MQS, straight; Moulded body: PBT; Contacts: tin-plated
