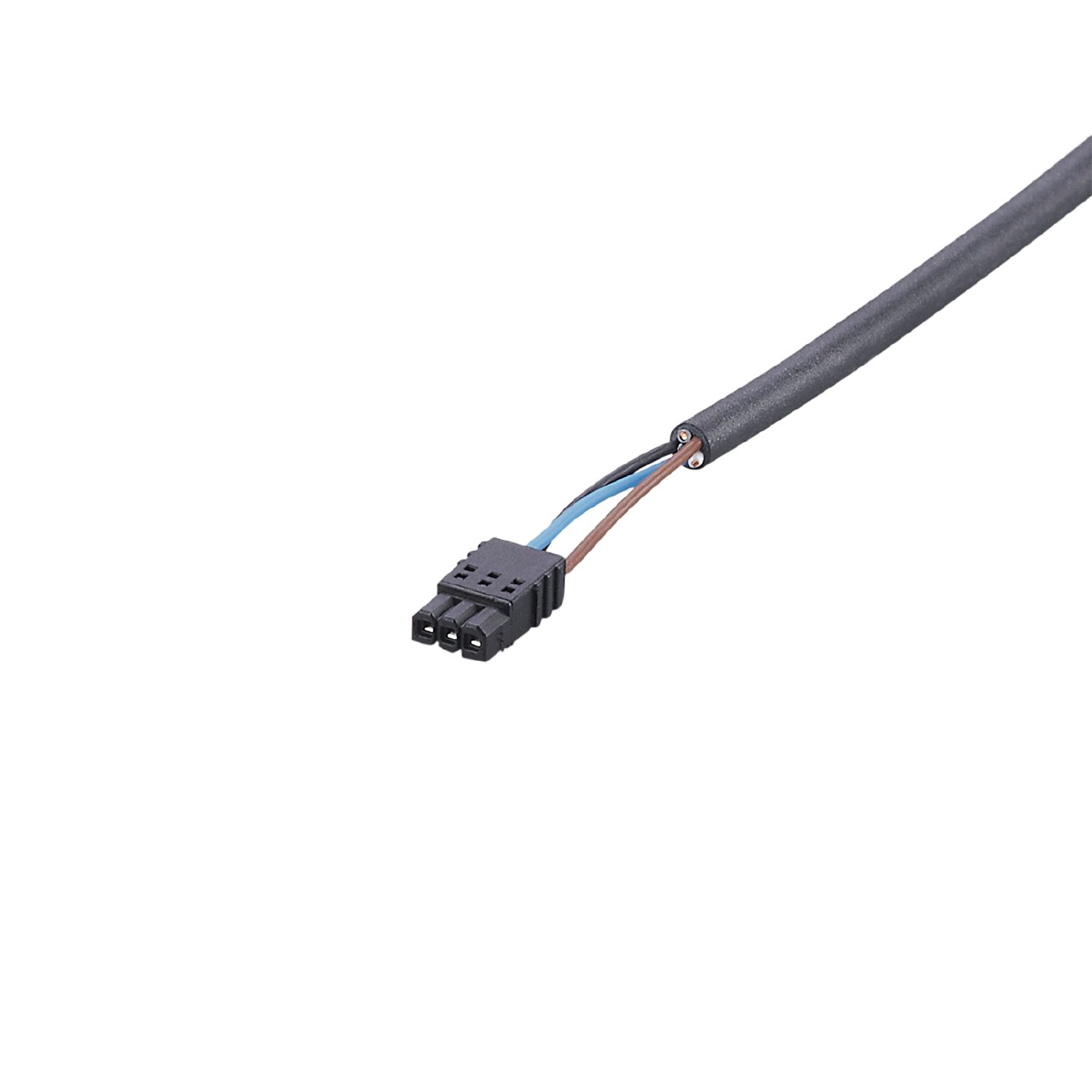

Female cordset
E12614
Fuse/IO-Link/Cable/2m
Female cordset
E12614
Fuse/IO-Link/Cable/2m
Application
| System | Halogen-free |
|---|
Electrical data
| Operating voltage [V] | < 50 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -25...90 |
|---|
Mechanical data
| Weight [g] | 62.1 |
|---|---|
| Material | brass nickel-plated; housing: TPU (urethane) |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 2 m, PUR, Halogen-free, black, Ø 4.9 mm; 3 x 0.34 mm² |
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E12614-00 — 05.11.2020 —
E12614 –
Fuse/IO-Link/Cable/2m
Electrical connection
Cable: 2 m, PUR, Halogen-free, black, Ø 4.9 mm; 3 x 0.34 mm²
