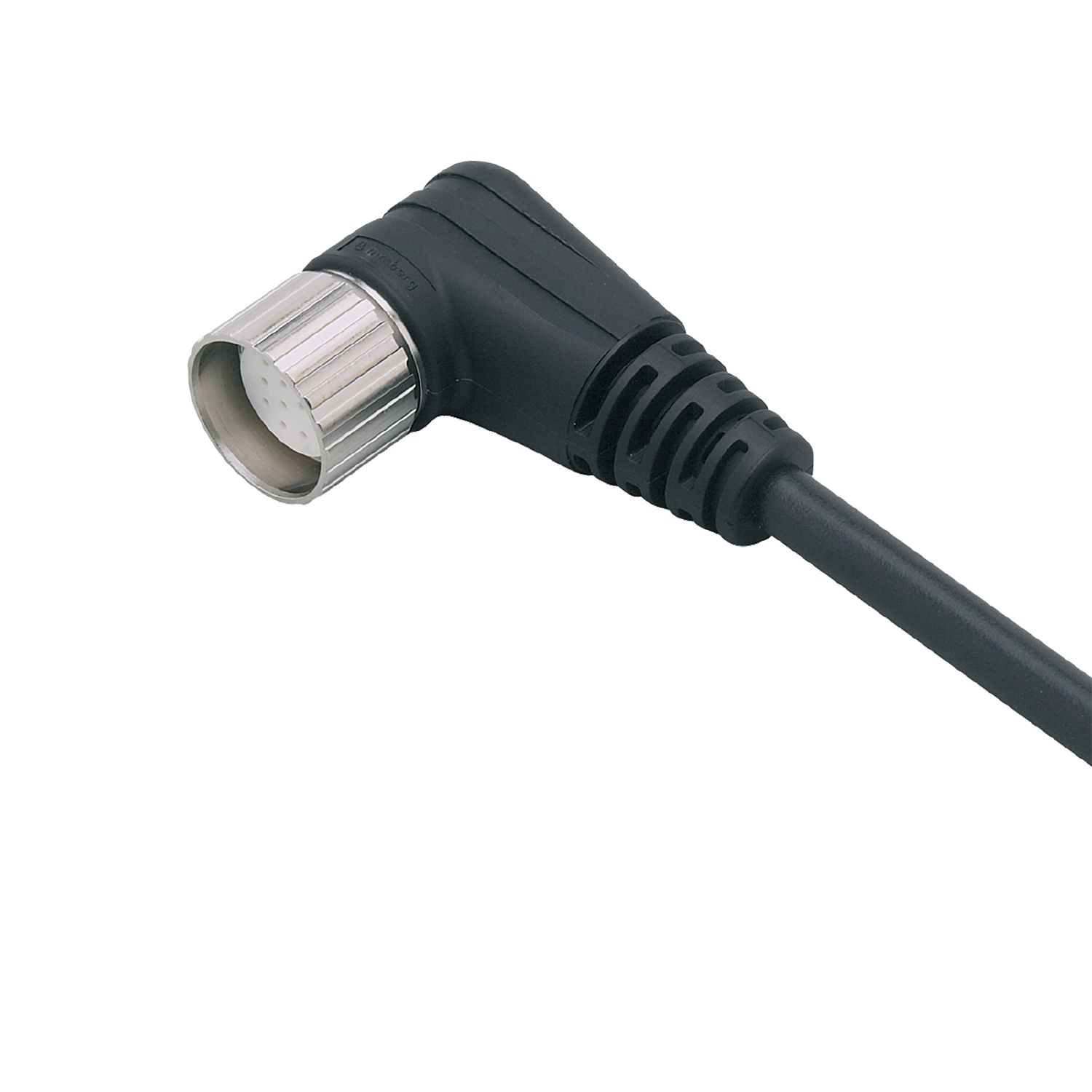

Female cordset
E11741
ADOAK120MSS0015H12
Female cordset
E11741
ADOAK120MSS0015H12
- Reliable connection of controllers and display units
- Wide operating temperature range
- Suited for use in mobile machines
- High protection rating for the requirements of harsh industrial environments
- Angled type for use where space is restricted
Application
| System | Halogen-free |
|---|
Electrical data
| Operating voltage [V] | < 63 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 2055 |
|---|---|
| Dimensions [mm] | 51 x 26 x 70 |
| Material | PUR black |
| Molded-body material | PUR |
| Material nut | brass, nickel-plated |
| Tightening torque [Nm] | 2 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 15 m, PUR, Halogen-free, black, Ø 9.3 mm; 8 x 0.5 mm² (63 x Ø 0.1 mm ) + 3 x 1.0 mm² (127 x Ø 0.1 mm ) |
Electrical connection - Socket
| Connection | Connector: 1 x M23, angled; Moulded body: PUR; Locking: brass, nickel-plated |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E11741-00 — 30.03.2016 —
E11741 –
ADOAK120MSS0015H12
Electrical connection
Cable: 15 m, PUR, Halogen-free, black, Ø 9.3 mm; 8 x 0.5 mm² (63 x Ø 0.1 mm ) + 3 x 1.0 mm² (127 x Ø 0.1 mm )
Electrical connection - Socket
Connector: 1 x M23, angled; Moulded body: PUR; Locking: brass, nickel-plated
Connection
- Core colors :
- BN =
- brown
- BU =
- blue
- GN =
- green
- GY =
- grey
- PK =
- pink
- RD =
- red
- WH =
- white
- YE =
- yellow
