All male cordsets

E11599

ASTGH050MSA0005C02

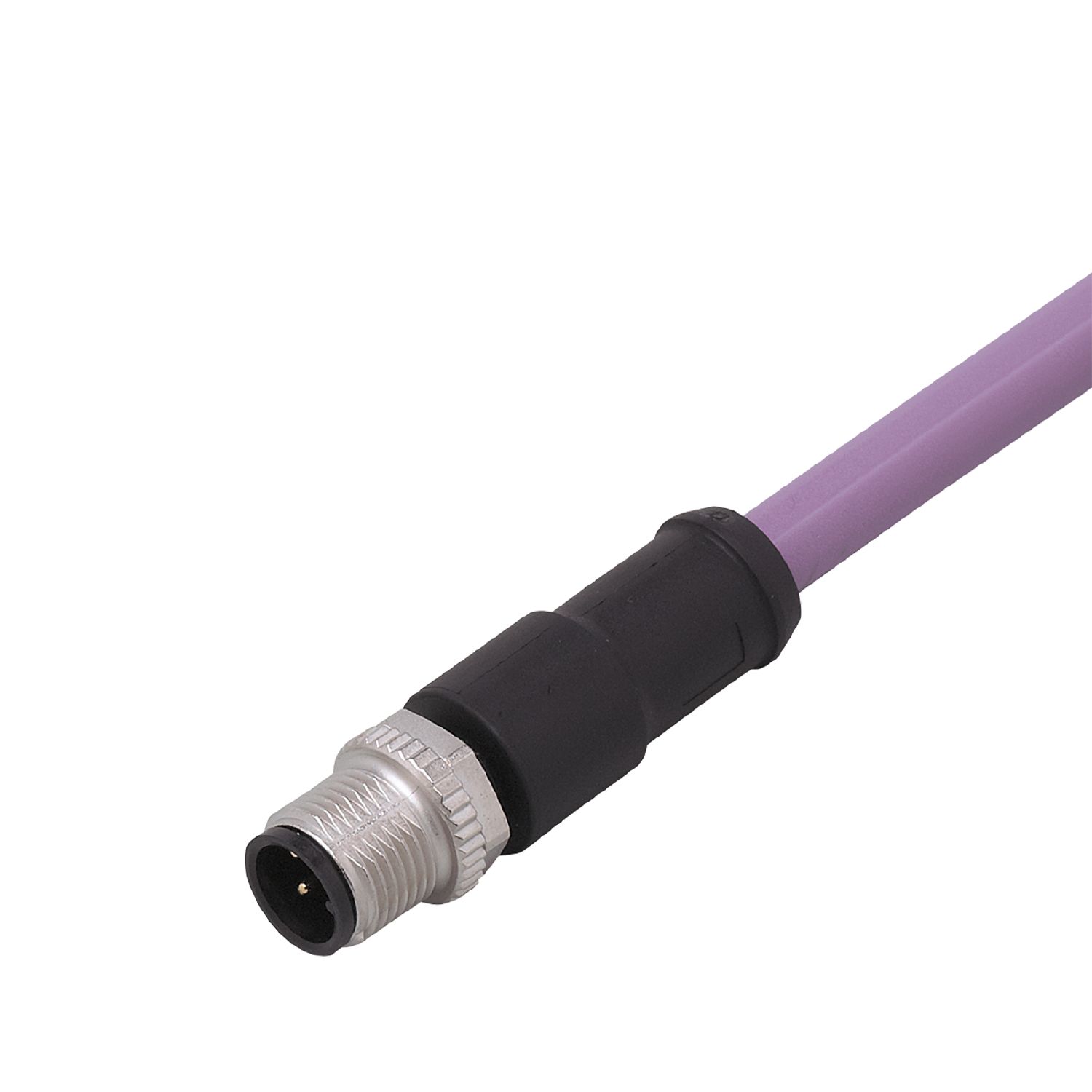

All male cordsets E11599

All male cordsets

E11599

ASTGH050MSA0005C02

  • Reliable connection technology for CAN bus participants
  • High protection rating for the requirements of harsh industrial environments
  • Wide operating temperature range
  • Shielded cable for good electromagnetic immunity
  • Suited for use in mobile machines
  • ce
  • ukca
Application
System Halogen-free; gold-plated contacts; screened cable; Drag chain suitability
Application CAN bus
Electrical data
Operating voltage [V] < 30 AC / < 36 DC
Max. current load total [A] 4
Operating conditions
Ambient temperature [°C] -25...85
Storage temperature [°C] -40...80
Protection IP 68
Mechanical data
Weight [g] 350
Dimensions [mm] 14.5 x 14.5 x 48.5
Material PUR
Molded-body material PUR
Material nut brass, nickel-plated
Drag chain suitability yes
Drag chain suitability
Bending radius for flexible applications min. 10 x cable diameter
Bending radius for fixed installation min. 5 x cable diameter
Travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
Bending cycles > 1 Mio.
Remarks
Pack quantity 1 pcs.
Electrical connection
Cable: 5 m, PUR, Halogen-free, lilac, Ø 6.8 mm, screened; 2 x 0.25 mm² (19 x Ø 0.13 mm ) + 2 x 0.34 mm² (19 x Ø 0.16 mm ) + 1 x 0.34 mm² (19 x Ø 0.16 mm )
Electrical connection - plug
Connection Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.5 Nm
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E11599-01 — 18.01.2011 —
