  6. E11231

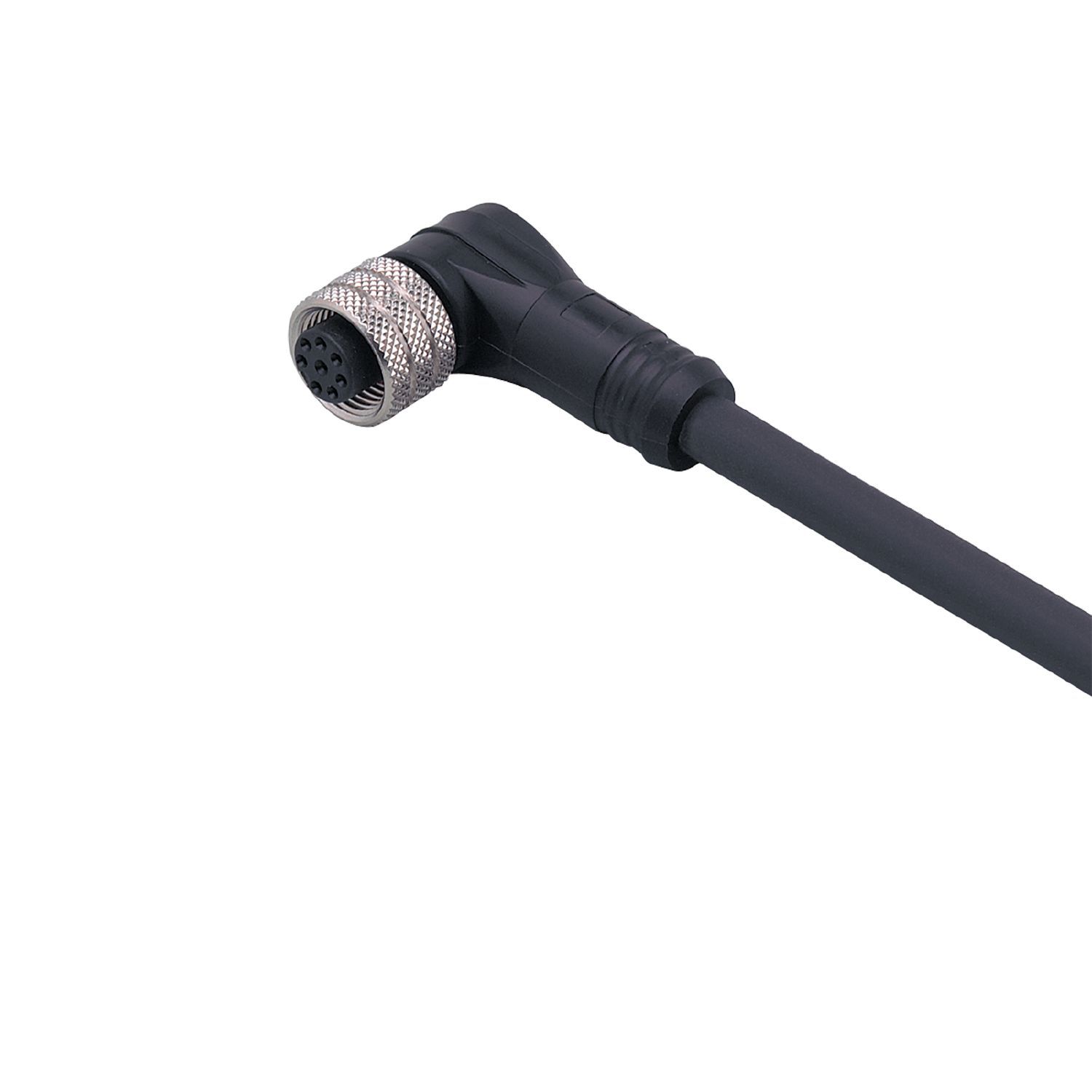

Female cordset

E11231

ADOAH080MSS0002H08

Female cordset

E11231

ADOAH080MSS0002H08

  • 8-pole connection
  • High protection rating for the requirements of harsh industrial environments
  • Gold-plated contacts for reliable electrical connections
  • Wide operating temperature range
  • Angled type for use where space is restricted
For 8-wire cordsets the core colors are not standardized. Please note the wiring of the sensor and the cordsets (see data sheet).
{{ifmVariantName}}



  • ce
Technical details
Application
System Free from silicone; gold-plated contacts
Free from silicone yes
Electrical data
Operating voltage [V] < 30 AC / < 36 DC
Protection class III
Max. current load total [A] 2; (...40 °C)
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Mechanical data
Weight [g] 139
Dimensions [mm] 28 x 15 x 38
Material PUR
Molded-body material PUR
Material nut brass, nickel-plated
Remarks
Pack quantity 1 pcs.
Electrical connection
Cable: 2 m, PUR, black, Ø 6.8 mm; 8 x 0.25 mm²
Electrical connection - Socket
Connection Connector: 1 x M12, angled; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E11231-00 — 21.07.2011 —
