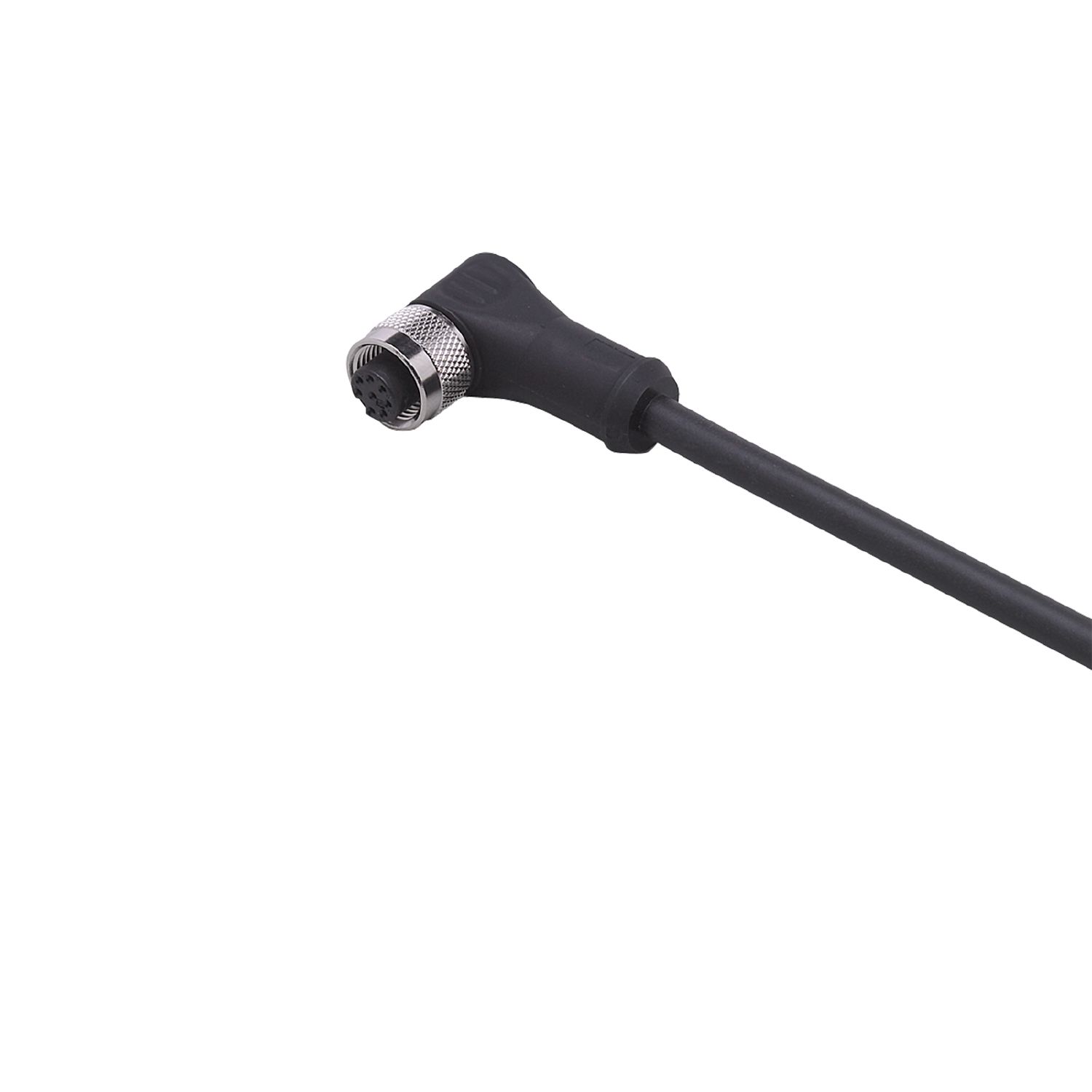

Female cordset
E10980
ADOAH080MSS0010A06
Female cordset
E10980
ADOAH080MSS0010A06
- 8-pole connection
- High protection rating for the requirements of harsh industrial environments
- Reliable transmission of the sensor signals
- Wide operating temperature range
- Angled type for use where space is restricted
Electrical data
| Operating voltage [V] | < 60 AC/DC |
|---|
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 68 |
Mechanical data
| Weight [g] | 479 |
|---|---|
| Dimensions [mm] | 38.5 x 14.5 x 27.5 |
| Material | TPU (urethane) |
| Molded-body material | TPU (urethane) |
| Material nut | diecast zinc, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable: 10 m, PUR, black; 6 x 0.34 mm² (42 x Ø 0.1 mm ) |
Electrical connection - Socket
| Connection | Connector: 1 x M12, angled; coding: A; Moulded body: TPU (urethane); Locking: diecast zinc, nickel-plated |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E10980-01 — 17.06.2010 —
E10980 –
ADOAH080MSS0010A06
Electrical connection
Cable: 10 m, PUR, black; 6 x 0.34 mm² (42 x Ø 0.1 mm )
Electrical connection - Socket
Connector: 1 x M12, angled; coding: A; Moulded body: TPU (urethane); Locking: diecast zinc, nickel-plated
Connection
- Core colors :
- BN =
- brown
- BU =
- blue
- GN =
- green
- GY =
- grey
- WH =
- white
- YE =
- yellow
