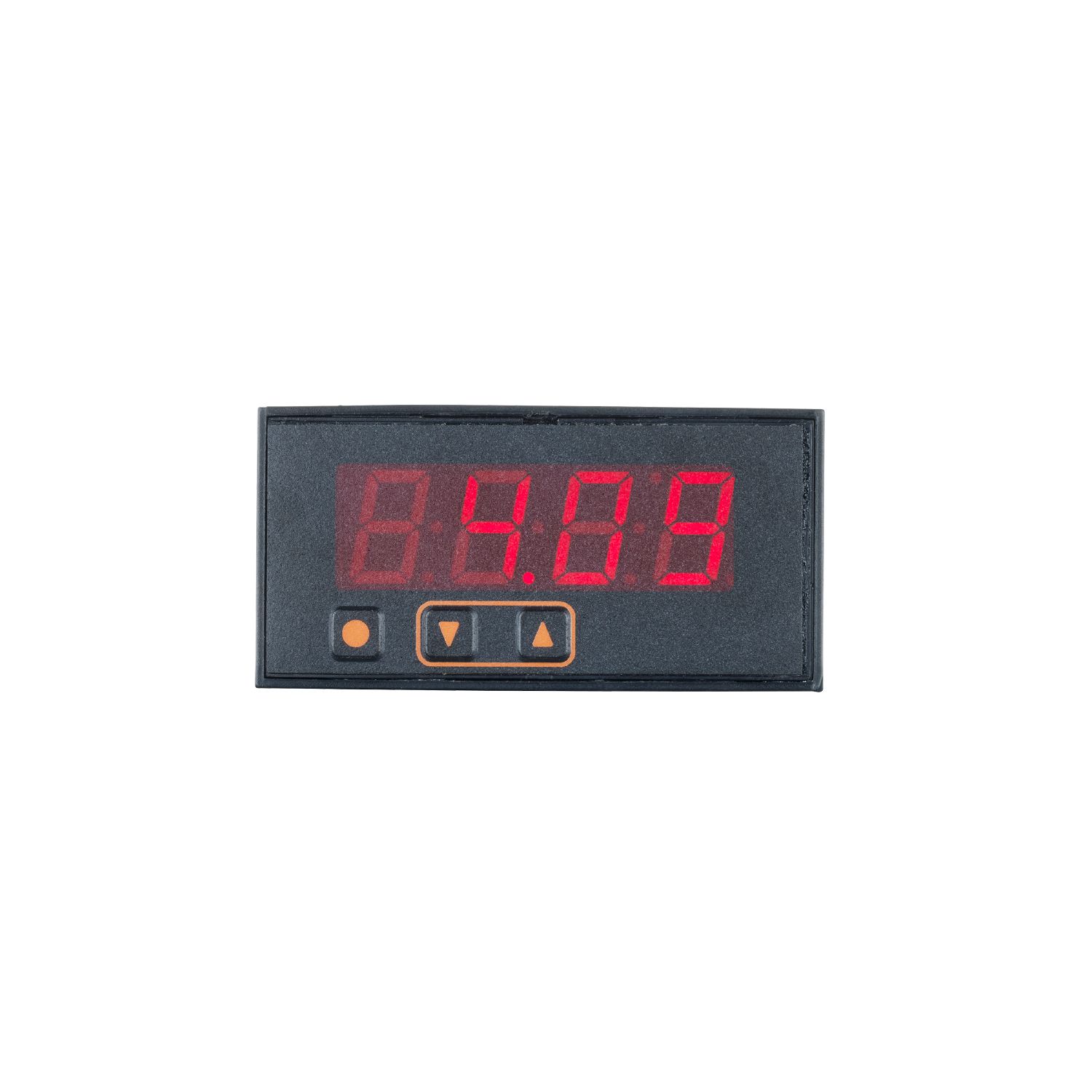

current loop display
DX1041
DISPLAY/4...20mA
current loop display
DX1041
DISPLAY/4...20mA
- Reliable monitoring of sensors with analog standard signals
- Easy scaling of the display range
- Clearly visible LED display
- Direct supply from the current loop of the analog output
- Dust-tight and hose-water proof installation in control panels
Product characteristics
| Housing | Housing for panel mounting |
|---|---|
| Dimensions [mm] | 36 x 72 x 40 |
Application
| Application | scalable display for sensors with analog output |
|---|
Electrical data
| Operating voltage [V] | 24 DC; (voltage is generated from analog signal: 4...20 mA; voltage drop of signal: 5,1 (4,7...5,2 V)) |
|---|
Inputs / outputs
| Number of inputs and outputs | Number of analog inputs: 1 |
|---|
Inputs
| Number of analog inputs | 1 |
|---|---|
| Analog input (current) [mA] | 4...20 |
| Analog input |
|
|---|
Operating conditions
| Ambient temperature [°C] | 0...60 |
|---|---|
| Storage temperature [°C] | -20...80 |
| Protection | IP 65; (terminals: IP00) |
Mechanical data
| Weight [g] | 106 |
|---|---|
| Housing | Housing for panel mounting |
| Type of mounting | panel cutout: 68 x 33 mm; wall thickness: max. 5 mm |
| Dimensions [mm] | 36 x 72 x 40 |
| Material | housing: polycarbonate; sealing: EPDM |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Connection | plug-in screw terminals: ...2.5 mm² |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — DX1041-00 — 13.11.2023 —
DX1041 –
DISPLAY/4...20mA
- panel cutout 68 x 33 mm
Electrical connection
plug-in screw terminals: ...2.5 mm²
