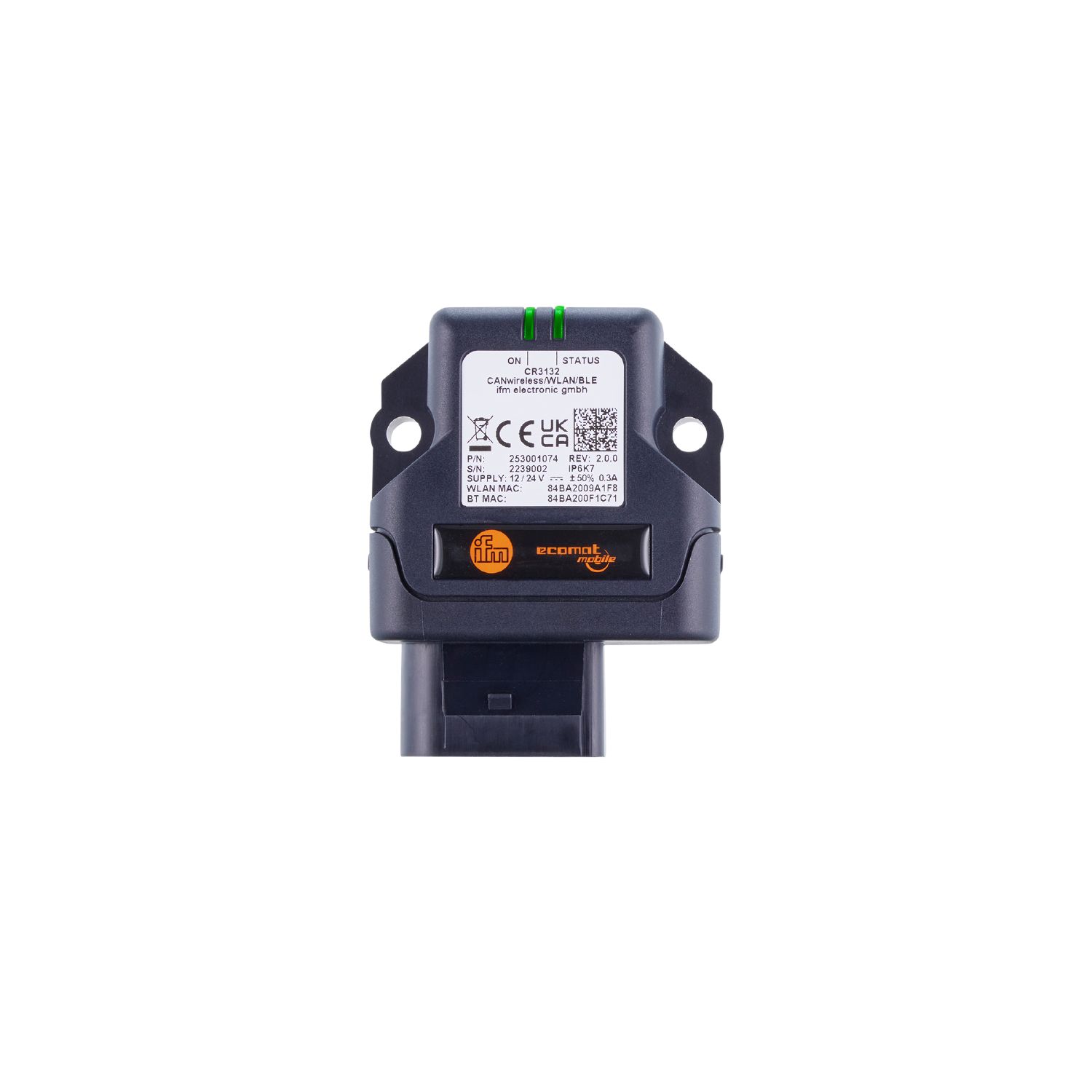

CANwireless with integrated antenna

CR3132

CANwireless/WLAN/BLE

  • mobile IoT - CANwireless module for smooth machine communication
  • Compact and robust housing for the requirements of harsh industrial environments
  • Reliable Wifi/Bluetooth connection for mobile machines
  • Set-up of an independent wifi network and connection to an existing wifi infrastructure
  • Module with integrated antenna
  • ce
  • ukca
  • e1r
Electrical data
Operating voltage [V] 6...36 DC
Nominal voltage DC [V] 12 / 24
Nominal voltage tolerance [%] 50
Current consumption [mA] < 100; (Normal operation; sleep mode: < 1 mA)
Reverse polarity protection yes; (< 36 V DC)
Overvoltage protection yes; (< 36 V DC)
Internal resistance (Ri) [Ω] 20000
Inputs / outputs
Number of inputs and outputs Number of analog inputs: 2; Number of digital outputs: 1
Inputs
Number of analog inputs 2
Analog input (voltage) [V] 0...15
Resolution of analog input 12 Bit
Precision analog input [%] ± 1,0
Outputs
Number of digital outputs 1
Voltage range DC [V] 6...36
Permanent current rating of switching output DC [mA] 500
Switching frequency DC [Hz] < 10
Measuring/setting range
Sampling rate [Hz] 20
Interfaces
Communication interface CAN; WLAN; Bluetooth
Number of CAN interfaces 2
Bluetooth
Transmission standard EDR 2.1; EDR 5.0
Transmission power [mW] 22.39; (Antenna integrated)
CAN
Interface CAN Interface 2.0 A/B ISO 11898
WLAN
Transmission standard IEEE 802.11 a/b/g/n
Frequency band 2,4 GHz; 5 GHz
Transmission power [mW] 53.23; (2,4 GHz; 22,39 mW: 5 GHz; Antenna integrated)
Operating conditions
Ambient temperature [°C] -40...85
Protection IP 6K7
Tests / approvals
EMC
EN 301489-1
EN 301489-17
EN IEC 61000-6-2
EN ISO 13766-1
Standard EN 62368-1; EN 62311; EN 300328; EN 300440; EN 301893; EN IEC 63000
Mechanical data
Weight [g] 136.9
Material housing: PA6/6.6 black
Displays / operating elements
Display
status 2 x LED, multi-color
Hardware
Processor ARM Cortex M7 based STM32 (400 MHz)
Working memory Program Flash: 1 MB FRAM: 8 KB SRAM: 564 KB
Mass storage 16 MB
Remarks
Pack quantity 1 pcs.
