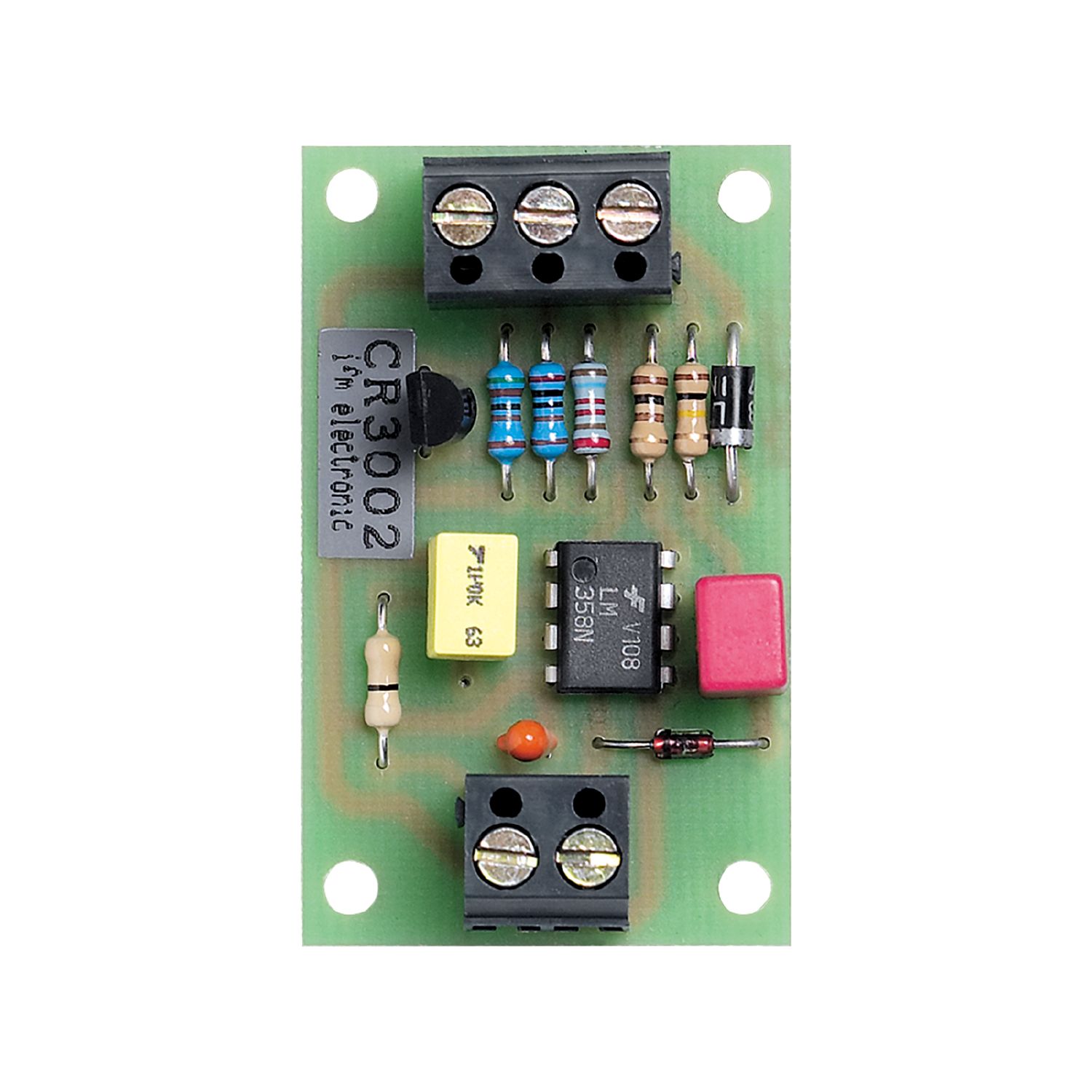

PWM to analog signal converter
CR3002
R360/PWM-ANALOG-MODULE/PCB
PWM to analog signal converter
CR3002
R360/PWM-ANALOG-MODULE/PCB
- Conversion of a PWM signal into an analog output signal
- Precise linear voltage output
- Simple connection via screw terminals
- For mobile vehicles
- Wide operating temperature range
Application
| Design | PCB module |
|---|
Electrical data
| Operating voltage [V] | 24...30 DC |
|---|---|
| Current consumption [mA] | < 20 |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|
Inputs
| Number of PWM inputs | 1 |
|---|---|
| PWM frequency inputs [Hz] | 122; (24 V DC PWM signal) |
Outputs
| Number of analog outputs | 1 |
|---|---|
| Analog voltage output [V] | 0...10 |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|
Mechanical data
| Weight [g] | 37 |
|---|---|
| Dimensions [mm] | 49 x 30 x 15 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Input | screw terminals: 2.5 mm² |
|---|
Diagrams and graphs
|
|
|
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — CR3002-00 — 14.12.2012 —
CR3002 –
R360/PWM-ANALOG-MODULE/PCB
Electrical connection
screw terminals: 2.5 mm²
Input
- red
- +24 V DC
- black
- PWM IN
- blue
- GND
Output
- black
- 0-10 V
- blue
- GND
