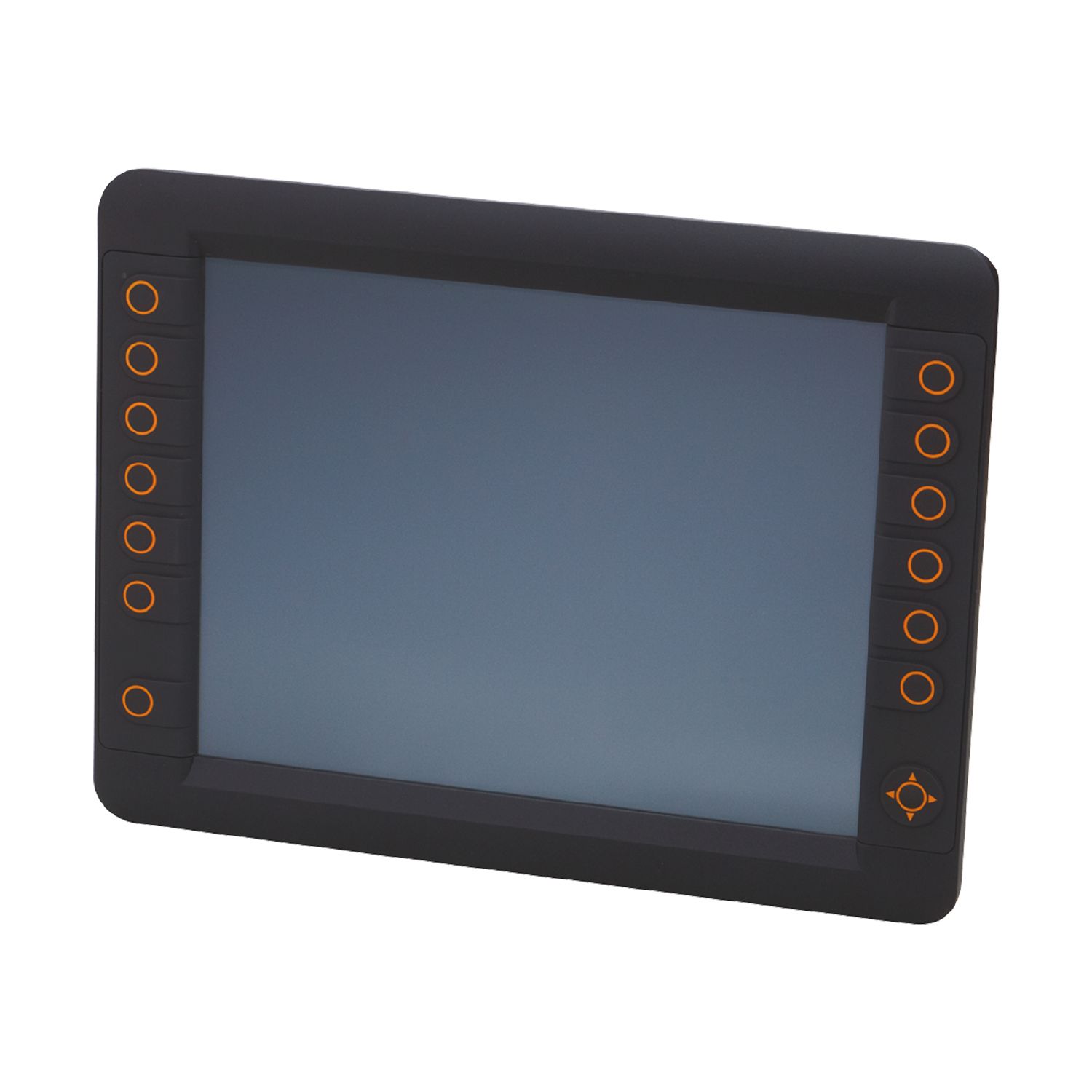

- CR1201
Programmable graphic display for controlling mobile machines
CR1201
R360/PDM360 NG 12"/Touch
Programmable graphic display for controlling mobile machines
CR1201
R360/PDM360 NG 12"/Touch
- Robust HMIs with backlit function keys with tactile feedback and touch screen
- High-performance CAN interfaces for various communication tasks
- Freely programmable to IEC 61131-3 with CODESYS 3.5 or CODESYS 2.3
- USB interface for data logging and optional interface for analog cameras
Article to be discontinued
Alternative articles: CR1204 Product comparison: CR1201 / CR1204 When selecting an alternative article and accessories please note that technical data may differ!
Please do not use for new projects.
Electrical data
| Operating voltage [V] | 10...32 DC |
|---|---|
| Power consumption [W] | 18 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 1; Number of analog inputs: 1; Number of digital outputs: 1 |
|---|
Inputs
| Number of digital inputs | 1 |
|---|---|
| Number of analog inputs | 1 |
| Analog input (current) [mA] | 0...20 |
| Analog input (voltage) [V] | 0...32 |
Outputs
| Number of digital outputs | 1 |
|---|
Software / programming
| PLC function to IEC 61131-3 | yes |
|---|
Interfaces
| Number of CAN interfaces | 4 |
|---|---|
| Number of Ethernet interfaces | 1 |
| Number of USB interfaces | 2 |
| Number of video interfaces (CVBS) | 2 |

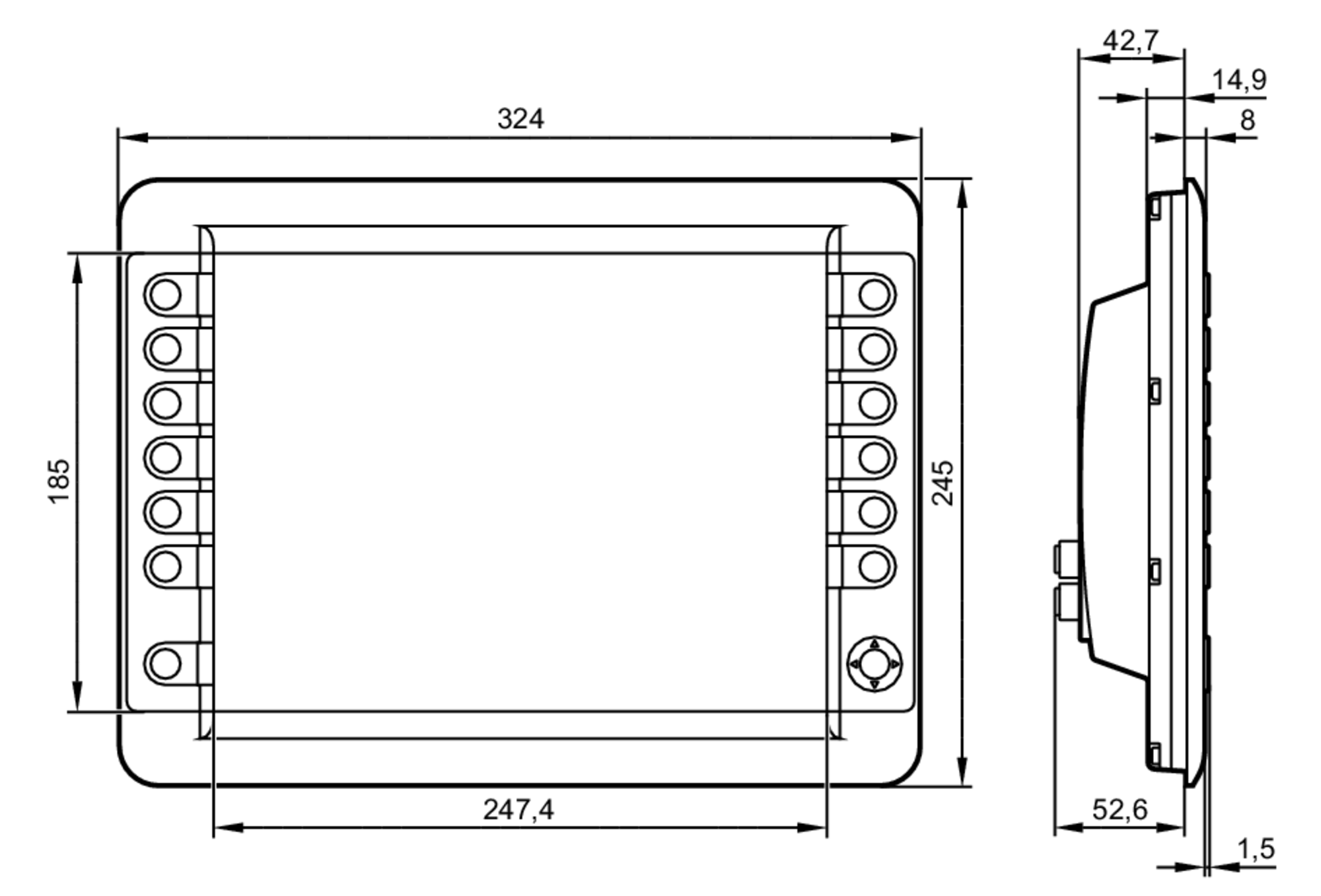

Mechanical data
| Weight [g] | 3574 |
|---|---|
| Type of mounting | panel/surf. |
| Dimensions [mm] | 245 x 324 x 62 |
Displays / operating elements
| Display |
|
||||||
|---|---|---|---|---|---|---|---|
| Operating elements |
|
||||||
| Display resolution | 1024 x 768 | ||||||
| Display type | Color display | ||||||
| Display size | 12" | ||||||
| Display background illumination | LED |
Data memory
| Real-time clock | yes |
|---|
Remarks
| Notes | Please do not use for new projects. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector: 1 x M12 |
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — CR1201-00 — 12.05.2022 —
