AC5290

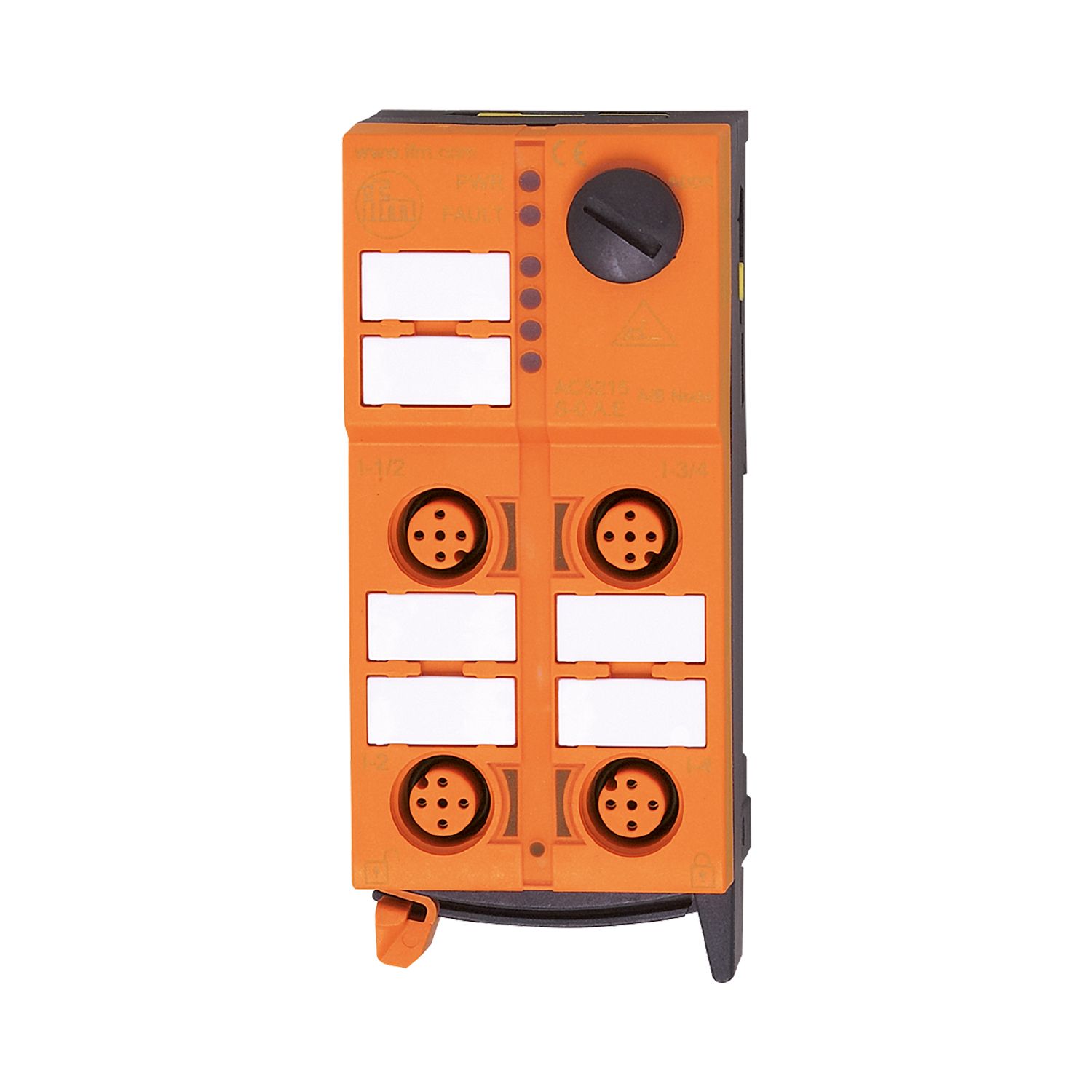

AS-Interface ClassicLine module with quick mounting technology

ClassicLine 4DI-Y AUX IP67

{{'OPTIONAL_INFO' | productAvailability | error}}

Dear customer,
Unfortunately, this data sheet is not available in the requested language. If you have any further questions, you can contact us by e-mail.

Best regards
Your ifm team

  • Easy toolless installation
  • Three selectable directions of the flat cable mounting
  • Clearly visible powerful LEDs for displaying operation, switching status and error
  • High protection rating for the requirements of harsh industrial environments
  • Robust M12 connectors for connecting sensors and actuators
  • ce
  • eac
  • asib
  • cul
Download
Technische Details
Electrical data
Operating voltage [V] 26.5...31.6 DC; (cULus - Class 2 source required)
Max. current consumption from AS-i [mA] 30
Inputs / outputs
Number of inputs and outputs Number of digital inputs: 4
Inputs
Number of digital inputs 4
Input circuit of digital inputs PNP
Sensor supply of the inputs to PELV
Voltage supply [V] 20...30; (via flat cable)
Max. total current rating of inputs [mA] 1000
Input current High [mA] 6...10
Input current low [mA] 0...2
Min. switching level high signal [V] 11
Digital inputs protected against short circuits yes
Operating conditions
Ambient temperature [°C] -25...70
Protection IP 67
Tests / approvals
EMC
EN 50295
IEC 61000-6-2
MTTF [years] 225
AS-i classification
AS-i version 2.11 + 3.0
AS-i addressing Addressing socket
Extended addressing mode possible yes
AS-i profile S-0.A.E
AS-i I/O configuration [hex] 0
AS-i ID code [hex] A.E
AS-i certificate pending yes
Data bits
Data bit D0 D1 D2 D3
Input 1 2 3 4
Socket I-1/2 I-1/2 I-2 I-3/4 I-3/4 I-4
Pin 4 2 4 4 2 4
Parameter bits
Parameter bit Description
P0 not used
P1 peripheral fault indication : 1 activated * / 0 disabled
P2 not used
P3 not used
Mechanical data
Weight [g] 173
Type of mounting AS-i flat cable connection
Material PA; Piercing contacts: CuSn6 nickel-plated and tin-plated
Displays / operating elements
Display
Power LED, green Voltage AUX > 7 V
errors LED, red AUX 15 V ± 2 V
Function LED, yellow
Accessories
Accessories (supplied)
lower part
Accessories (optional)
Protective cap: M12, E73004
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection quick mounting technology for AS-i flat cable: ; three selectable directions
Connection Connector: M12
