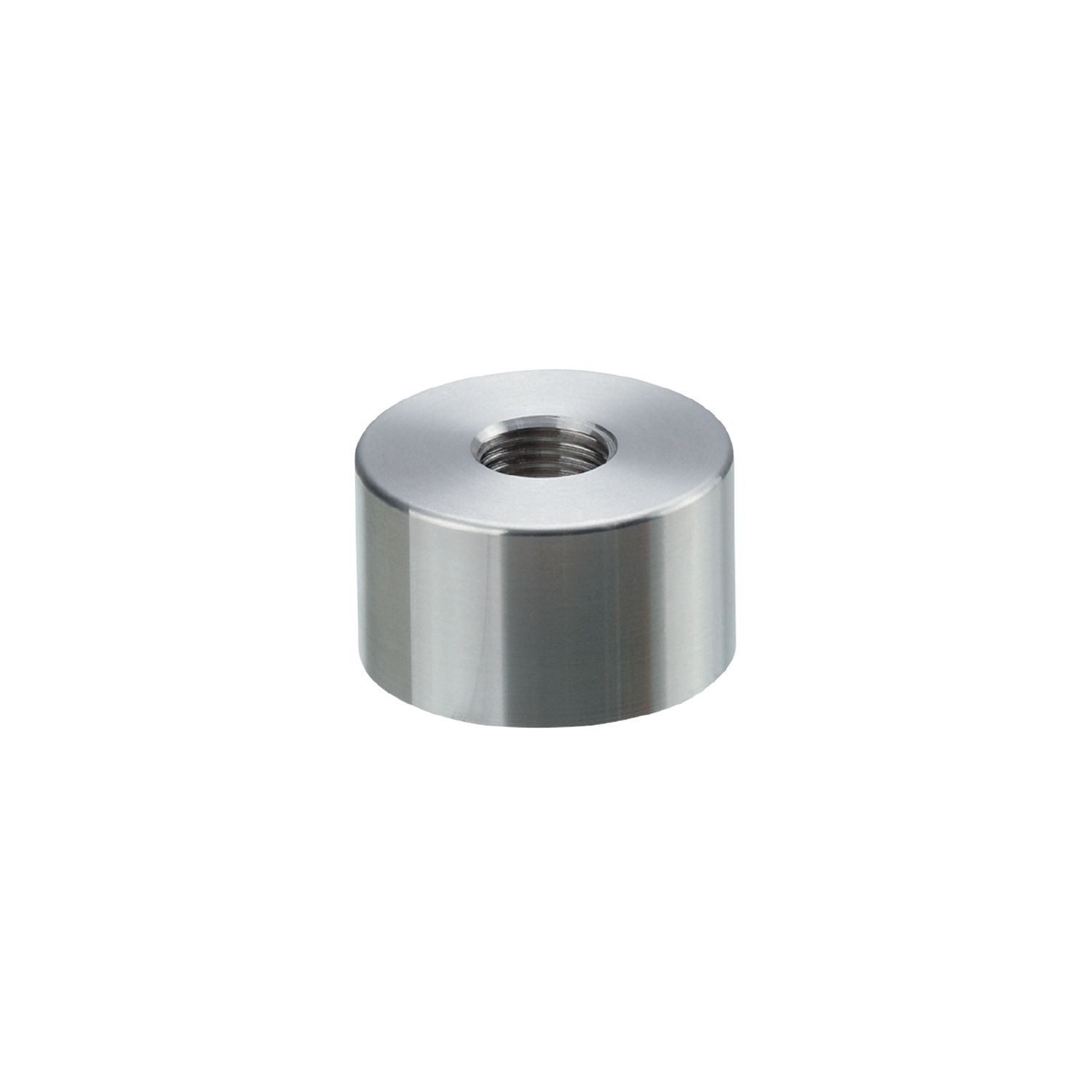

Welding adapter for process sensors
E30503
WELDING ADAPT G1/4
Welding adapter for process sensors
E30503
WELDING ADAPT G1/4
- Welding adapter for process sensors
- Міцне виконання з нержавіючої сталі для використання у важких умовах експлуатації
- Висока стійкість до тиску
- Для використання у промисловості
Application
| Pressure rating [bar] | 480 | |
|---|---|---|
| Note on pressure rating |
|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 195.8 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | G 1/4 |
| Process connection | welding adapter Ø 35 mm |
| Sealing | Gasket |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — UK-UA — E30503-00 — 29.03.2021 —
E30503 –
WELDING ADAPT G1/4
- 1
- sealing area
