Acceleration sensor

VSP004

VIBRATION SENSOR SUBMERSIBLE

Acceleration sensor

VSP004

VIBRATION SENSOR SUBMERSIBLE

For connection to a diagnostic electronics for vibration sensors
Large operating temperature range and high protection rating for the requirements of harsh industrial environments
Compact and robust stainless steel housing with high mechanical overload protection
For the reliable vibration detection of machines and equipment
Very good repeatability and low linearity deviation

Technical details

Product characteristics

Measuring range of vibration [g]

-50...50

Frequency range [Hz]

1.5...12000

Measuring principle

piezo-electric

Application

Special feature

Screened cable

Design

for connection to external diagnostic electronics VSE

Electrical data

Operating voltage [V]

10...12 DC

Current consumption [mA]

0.5...8

Min. insulation resistance [MΩ]

100; (500 V DC)

Reverse polarity protection

yes

Measuring/setting range

Measuring range of vibration [g]

-50...50

Frequency range [Hz]

1.5...12000

Measuring principle

piezo-electric

Noise density [mg]

0.1

Max. transverse sensitivity [%]

Minimum measuring time [s]

Number of measurement axes

Accuracy / deviations

Accuracy

± 10 %

Measuring sensitivity

100 mV/g

Interfaces

Communication interface

IEPE

Operating conditions

Ambient temperature [°C]

-50...150

Storage temperature [°C]

-20...80

Max. relative air humidity [%]

80; (50 °C; 50 % non condensing)

Protection

IP 68; (water-proof up to 100 m 10 bar)

Tests / approvals

EMC


EN 61326-1	: 2013

Shock resistance


EN 61326-1	: 2013

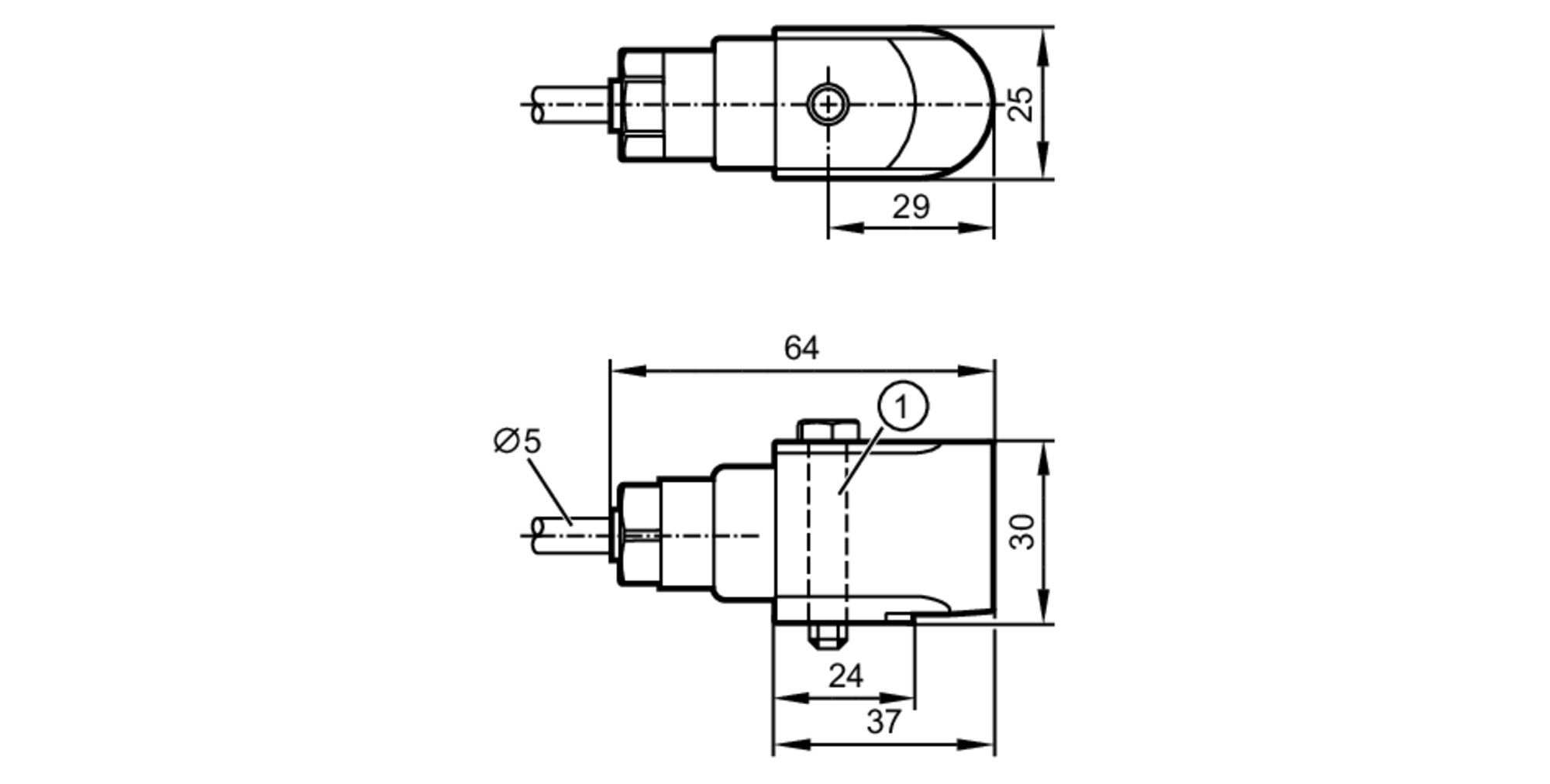

Mechanical data

Weight [g]

1892

Type of mounting

M8 x 1,25

Materials

housing: stainless steel

Tightening torque [Nm]

Remarks

Pack quantity

1 pcs.

Electrical connection

Cable: 25 m, PTFE coated, blue, shielded
